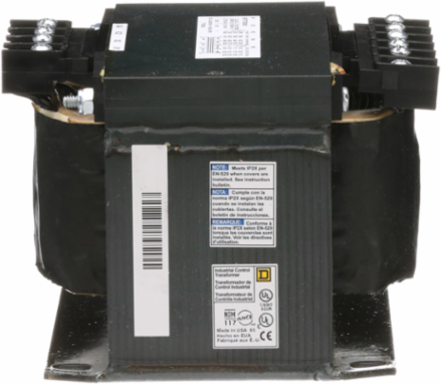

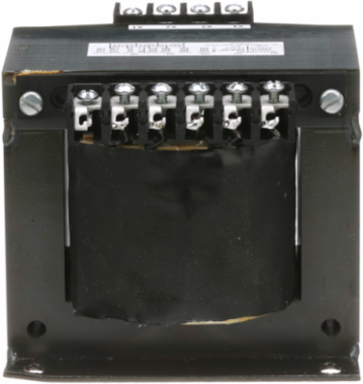

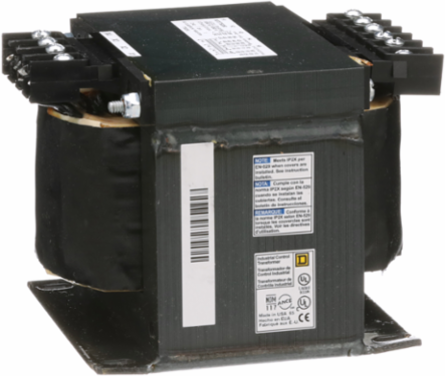

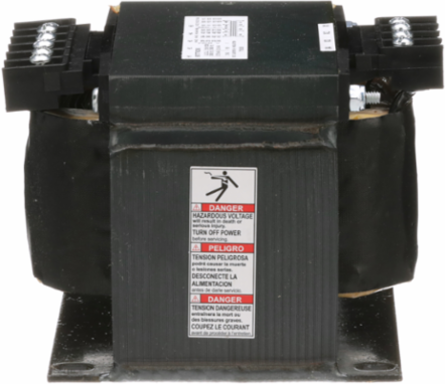

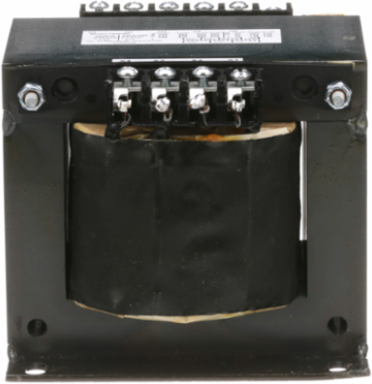

Square D 9070T750D50 Type T Industrial Control Transformer 750VA 1 Phase 240/480V Primary 115°C Rise
- MPN: 9070T750D50
- UPC: 785901331377
- PPN: SCH-9070T750D50
CAD
$541.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They offer field installed accessories to expand the applicational needs for the product. These transformers use low impedance windings to handle higher inrush current and still regulate voltage. This Type T is a single phase 750VA transformer designed for 240/416/480/600VAC primary with 99/120/130VAC secondary, as well as 230/400/460/575VAC to 95/115/125VAC, 220/380/440/550VAC to 90/110/120VAC, and 208/360/416/520VAC to 85/104/115VAC. It is compliant with UL and CSA standards verified by third party UL carrying the cUL, UL labels, and self certified to the EN standards carrying a CE mark.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- T
Product Or Component TypeIndustrial Control Transformer
Complementary
- Height
- 4.51 in
- Material
- copper: winding
- Rated Power In Va
- 750 VA UL || 750 VA CSA || 750 VA NOM || 500 VA CE
- Depth
- 6.3 in
- Primary Voltage
- 240/416/480/600 V 99/120/130 V || 230/400/460/575 V 95/115/125 V || 220/380/440/550 V 90/110/120 V || 208/360/416/520 V 85/100/110 V
Temperature Rise115 °C
Electrical Connectionscrew clamp terminals
Width5.25 in
Product CompatibilityFSC23
Network Number Of Phases1 phase
Environment
- Product Certifications
- UL listed file E61239 || CSA file LR37055 guide 184-N-90
- Insulation Temperature
- 180 °C
Nema Degree Of Protectionnot rated (open device)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1308008EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
