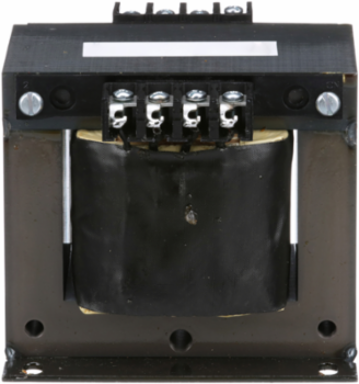

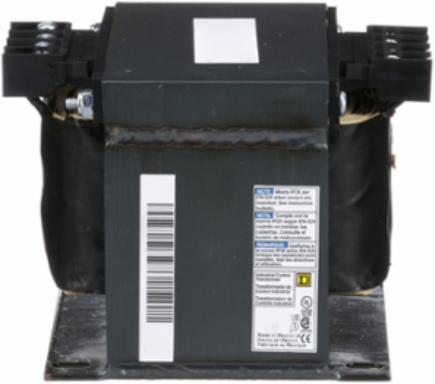

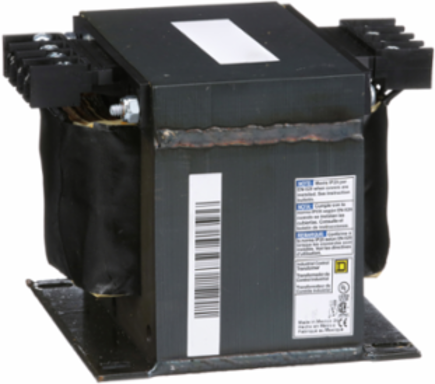

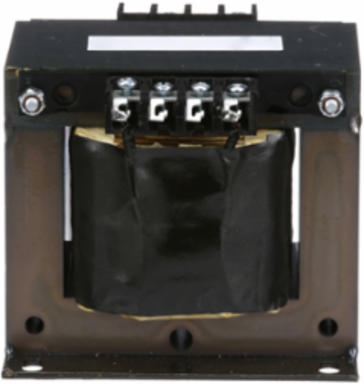

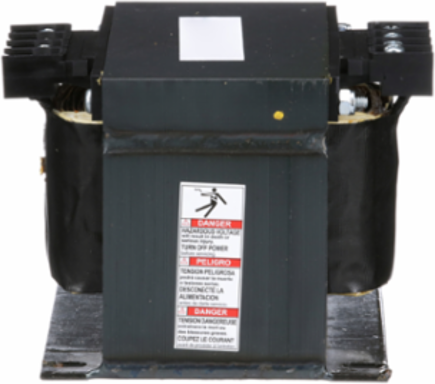

Square D 9070T1000D15 Industrial Control Transformer 1000VA, 1 Phase, 240/480V Primary, 24/120V Secondary

Type T is our most popular and complete line of control transformers and is best choice if size and cost are of concern. These transformers were design for top performance which is why it uses low impedance windings so it can accommodate higher inrush current but still regulate the voltage. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. Type T transformers come in the MultiTap version as well. This industrial control transformer has a power rating of 1000VA and is single phase. It has a 240/480 V primary voltage and 24/120 V secondary voltage with a temperature rise of 115 °C. Dimensions for this product are 4.51 in (H), 5.25 in (W), 6.3 in (D). This transformer has screw clamp terminals connections and its winding is made of copper. This device is compatible with the fingersafe cover FSC2. This transformer complies to UL, CE & CSA standards.
