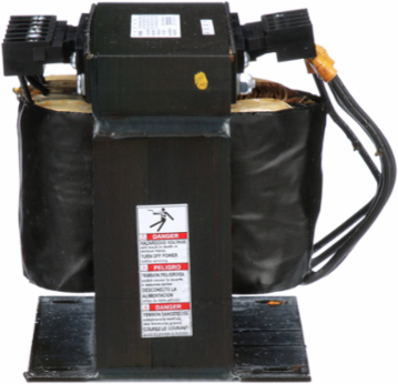

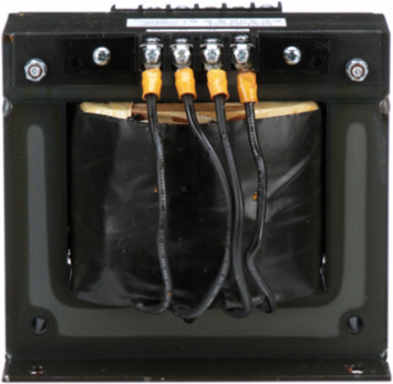

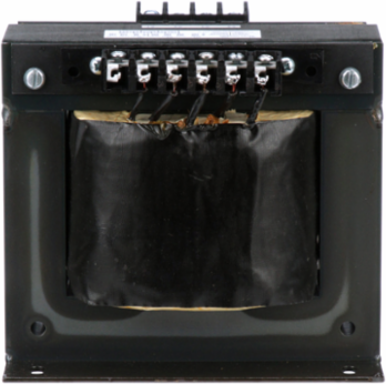

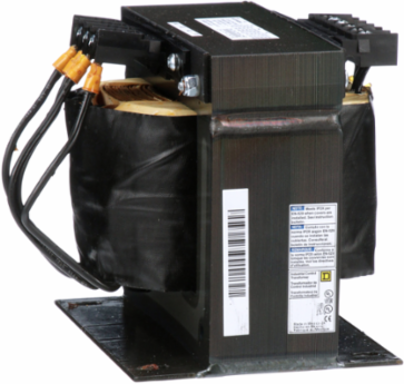

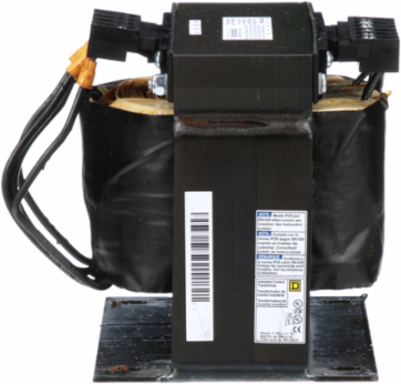

Square D 9070T1000D50 Industrial Control Transformer 1000 VA 1 Phase 240/600V
- MPN: 9070T1000D50
- UPC: 785901398073
- PPN: SCH-9070T1000D50
CAD
$706.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This robust industrial control transformer from Schneider Electric is designed to provide reliable voltage transformation for a variety of power distribution applications. With a capacity of 1000 VA and the flexibility to operate at dual voltages of 240/600V, it meets the demanding needs of modern industrial environments. Its solid engineering ensures consistent performance, making it an essential component for effectively managing electrical systems. Whether you are working in manufacturing or automation, this transformer serves as a dependable solution to enhance your operational efficiency.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico

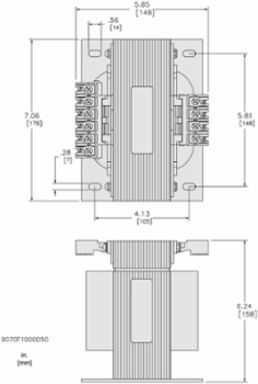

Depth5.92 in
Complementary Attributes
- Rated Power In Va
- 1000 VA UL, 1000 VA CSA, 1000 VA NOM630 VA CE
Important Information Attributes
- Certificate Agency
- UL listed file E61239, CSA file LR37055 guide 184-N-90
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 4 kg CO2 eq., 4.0365385043
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 62 kg CO2 eq., 62.3510535652
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1905
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Material
- copper: winding

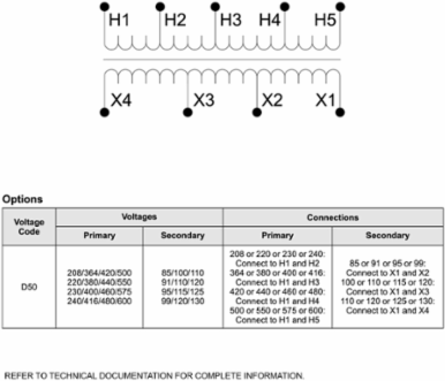

- Primary Voltage
- 240/416/480/600 V 99/120/130 V230/400/460/575 V 95/115/125 V220/380/440/550 V 90/110/120 V208/360/416/520 V 85/100/110 V
- Product Or Component Type
- Industrial Control Transformer
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 6 382 kg CO2 eq.
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Convert distribution voltage of either 240V or 480V to required control voltage of 120V, units are specifically design to limit voltage drop during high inrush currents from control devices, during 20 years
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime In Kwh
- 9113.9
- Energy Model - Installation [A5]
- Electricity mix; AC; 120V; US
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; 120V; US
- Width Nominal
- 7.06 in
- Package Weight(Lbs)
- 16.098 kg
- Warranty (In Months)
- 18
Carbon Footprint Of The Distribution Phase [A4]4.0995306783, 4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.8063558191, 0.8 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]6 310 kg CO2 eq., 6310.3972304295
Local Publishable Date2026-06-30
Stocking FlagN
Device TypeTransformer - dry
TraceabilityNo
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Electrical Connectionscrew clamp terminals
Insulation Temperature180 °C
Phase1 phase
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductT
Software VersionEIME v5.8.1
Temperature Rise115 °C
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Verification Date2020-11-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Energy model used: Mexico
Energy Model - Use [B6]Electricity mix; AC; 120V; US
Height Nominal6.17 in
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8504316000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 6381.6907089964
- Nema Degree Of Protection
- not rated (open device)
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Product CompatibilityFSC23
Pep Verification Date2020-11-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Phase
- 1 phase
- Range Of Product
- T
Product Or Component TypeIndustrial Control Transformer
ETIM
- ETIM 8
- EC002486
ETIM 9EC002486
Contractual Warranty Attributes
- Warranty Period
- 10 Years
Warranty10 Years
