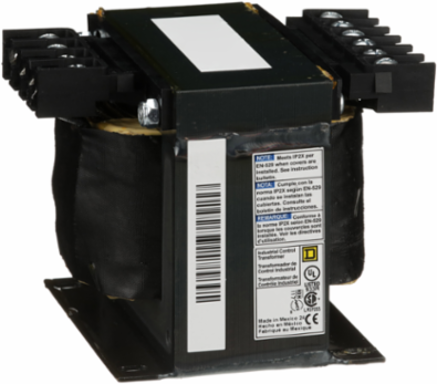

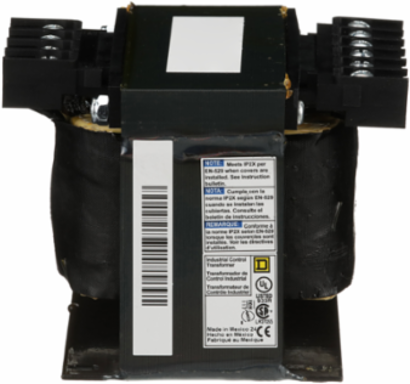

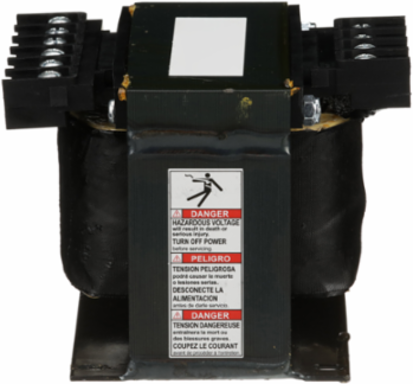

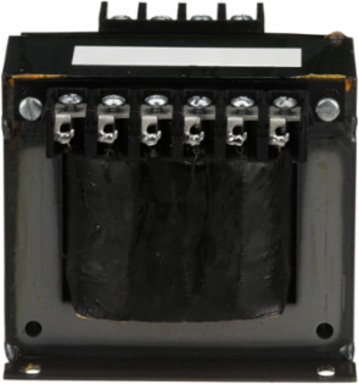

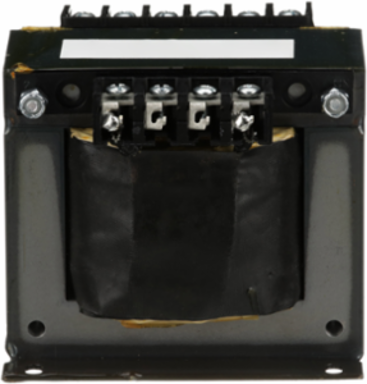

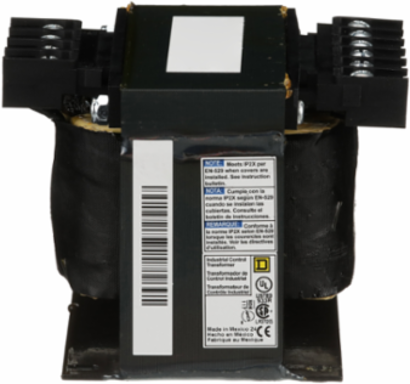

Square D 9070T250D50 Type T Industrial Control Transformer 250 VA 1 Phase 240-600 V
- MPN: 9070T250D50
- UPC: 785901327271
- PPN: SCH-9070T250D50
CAD
$340.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

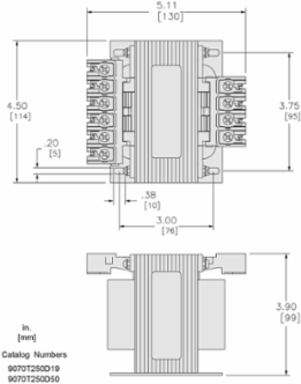

The Type T units are designed for the global market and are the best choice when size and cost are of concern. for the global market and are the best choice when size and cost are of concern. This is our most popular and complete offering of industrial control transformers. The following features are included with the Type T transformers sich as they are rated 50/60 Hz. They have customer installable accessories such as covers, fuse blocks and fuse clips. The Type T transformers are designed with various temperature classes. This Industrial Control Transformer is 1 phase and has a rated power of 250 VA. This transformer has multiple primary voltages of 240/416/480/600 V and a secondary voltage of 85/104/115 V with a temperature rise of 80 °C. The dimensions forThis product are 3.84 in (H), 4.5 in (W), 5.11 in (D). This product is compatable with FSC23. This product complys to UL listed & CSA standards.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- T
Product Or Component TypeIndustrial Control Transformer
Complementary
- Height
- 3.84 in
- Material
- copper: winding
- Rated Power In Va
- 250 VA UL || 250 VA CSA || 250 VA NOM || 160 VA CE
- Depth
- 5.11 in
- Primary Voltage

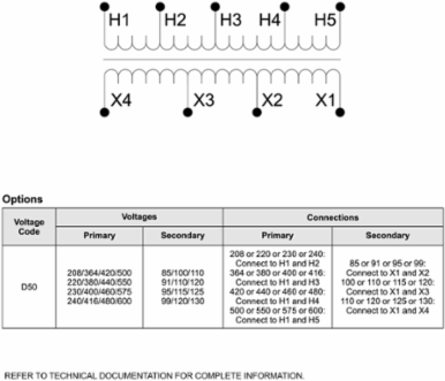

- 240/416/480/600 V 99/120/130 V || 230/400/460/575 V 95/115/125 V || 220/380/440/550 V 90/110/120 V || 208/360/416/520 V 85/100/110 V
Temperature Rise80 °C
Electrical Connectionscrew clamp terminals
Width4.5 in
Product CompatibilityFSC23
Network Number Of Phases1 phase
Environment
- Product Certifications
- UL listed file E61239 || CSA file LR37055 guide 184-N-90
- Insulation Temperature
- 130 °C
Nema Degree Of Protectionnot rated (open device)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1308008EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
