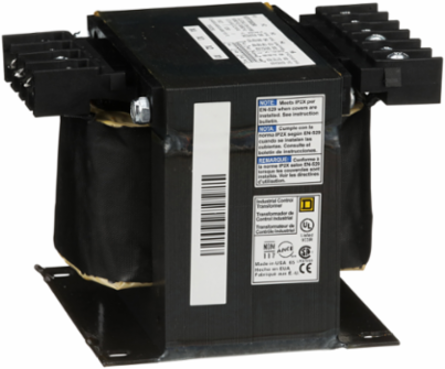

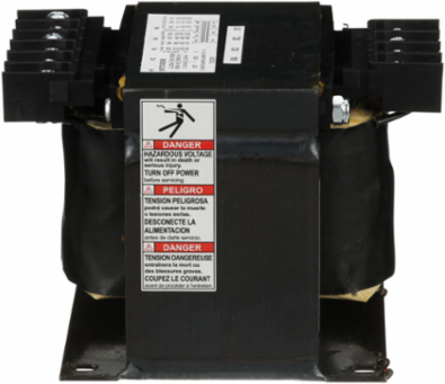

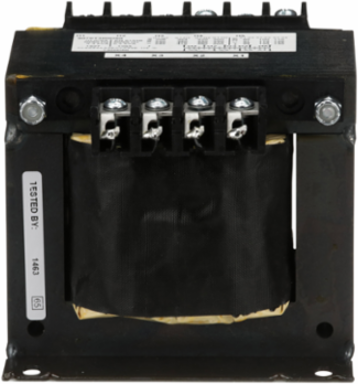

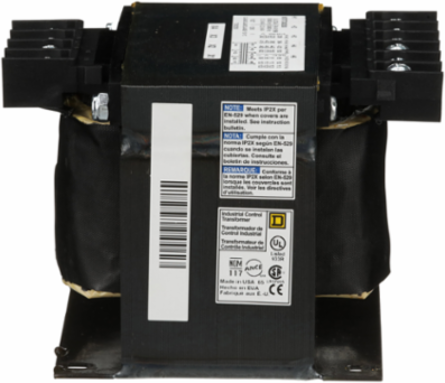

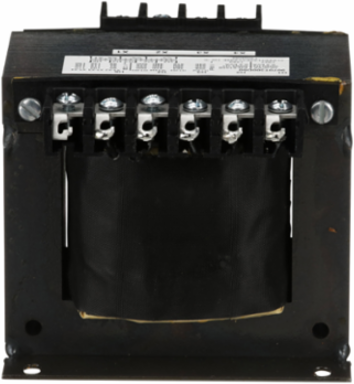

Square D 9070T300D50 Industrial Control Transformer 300VA 1 Phase 240/480V Primary 80 C Rise
- MPN: 9070T300D50
- UPC: 785901528135
- PPN: SCH-9070T300D50
CAD
$353.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered by Schneider Electric, this industrial control transformer is designed to provide efficient power distribution in demanding environments. With a robust capacity of 300VA and the ability to operate on a 240/480V primary, it ensures reliable power management for various industrial applications. The transformer is built to handle a temperature rise of up to 80 C, making it a dependable choice for setups requiring consistent performance under load. This model blends functionality with durability, allowing it to effectively support your operational needs while minimizing downtime.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States

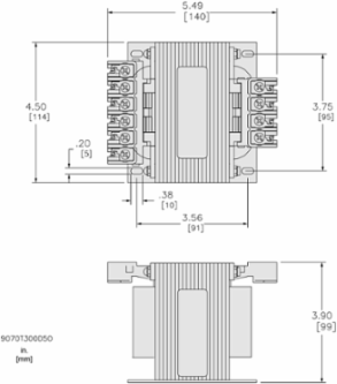

Depth5.49 in
Complementary Attributes
- Rated Power In Va
- 300 VA UL, 300 VA CSA, 300 VA NOM200 VA CE
Important Information Attributes
- Certificate Agency
- UL listed file E61239, CSA file LR37055 guide 184-N-90
- Local Publishable Date
- 2026-07-01
- Stocking Flag
- Y
- Device Type
- Transformer - dry
- Traceability
- No
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Electrical Connection
- screw clamp terminals
- Insulation Temperature
- 130 °C
- Phase
- 1 phase
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- T
- Sustainable Packaging
- No
- Height Nominal
- 3.84 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8504314065
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1905
China Rohs In ScopeNo
Without Single Use PlasticNo
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Materialcopper: winding

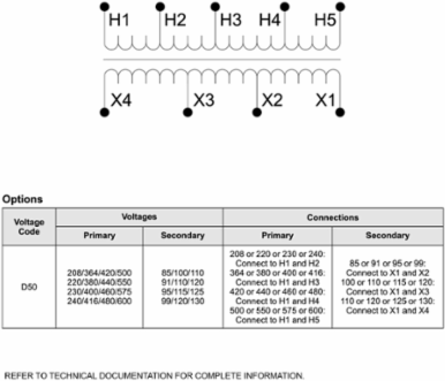

Primary Voltage240/416/480/600 V 99/120/130 V230/400/460/575 V 95/115/125 V220/380/440/550 V 90/110/120 V208/360/416/520 V 85/100/110 V
Product Or Component TypeIndustrial Control Transformer
ReturnabilityYes
Temperature Rise80 °C
Width Nominal4.5 in
Package Weight(Lbs)5.557 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- FSC23
Take BackNo
Mercury FreeYes
Nema Degree Of Protectionnot rated (open device)
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- 1 phase
- Range Of Product
- T
Product Or Component TypeIndustrial Control Transformer
ETIM
- ETIM 8
- EC002486
ETIM 9EC002486
Contractual Warranty Attributes
- Warranty Period
- 10 Years
Warranty10 Years
