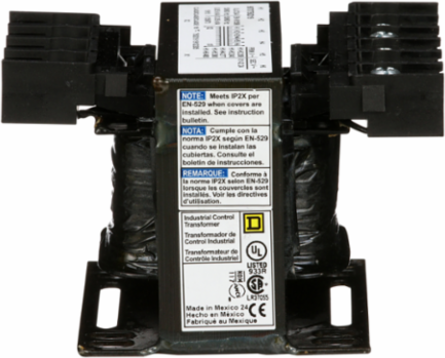

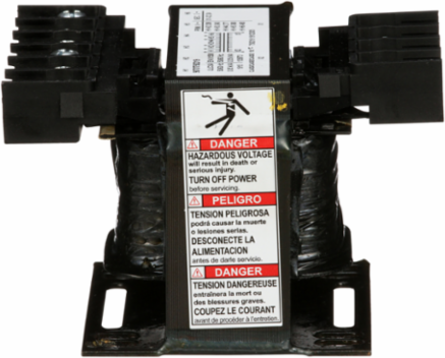

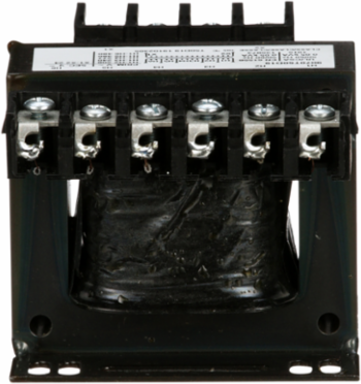

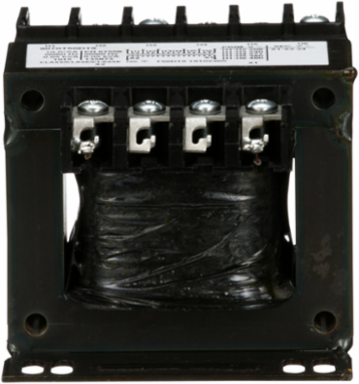

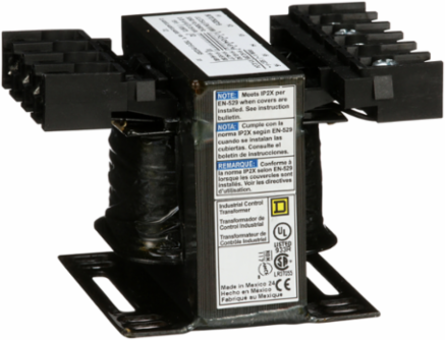

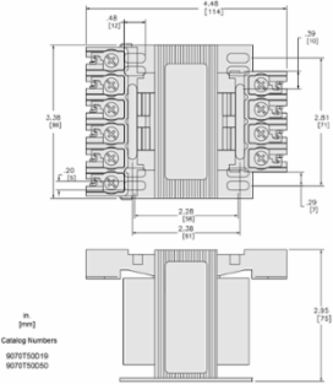

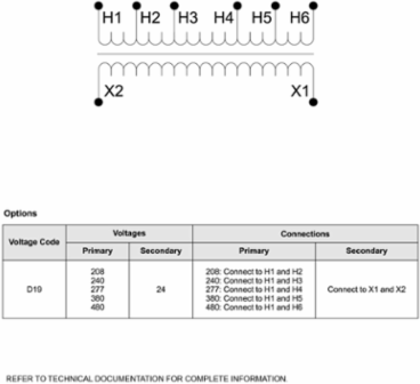

Square D 9070T50D19 Type T Industrial Control Transformer, 50VA, 1 Phase, 208/240/277/380/480V Primary, 24V Secondary
- MPN: 9070T50D19
- UPC: 785901904946
- PPN: SCH-9070T50D19
CAD
$100.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Type T is our most popular and complete line of control transformers. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. The Type T control transformer is the best choice if size and cost are of concern. Schneider Electric offers transformers with internally pre-wired 24-inch primary and secondary leads, instead of terminal boards, to make installation easier and faster for many applications. These are only available for single voltage primary and single voltage secondary applications. Schneider Electric offers Type T and Type EO transformers in the MultiTap version. This Industrial Control Transformer has a power rating of 50VA and is 1 phase. This transformer has a 208/240/277/380/480V primary voltage and 24V secondary voltage. This transformer complies to UL, CE & CSA standards. Dimensions for this product are 2.89 in (H), 3.38 in (W), 3.34 in (D). This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding. This product has a compatability for FSC23. The material used for this product is copper used in the winding. This product has a compatability for FSC23. This product comes with an 18 month warranty.
Features
- Engineered with an ultra-versatile primary winding that accepts 208V, 240V, 277V, 380V, or 480V AC, this Type T transformer lets industrial panel builders and plant electricians stock one SKU for multiple regional power grids. It easily bridges the gap between high-voltage service lines and your low-voltage control setups, preventing deployment bottlenecks and slashing spare-parts inventory costs.
- Delivering a stepped-down 24V AC secondary output at a 50VA power rating, this unit supplies highly stable control voltage optimized for safety interlocks, contactor coils, and automation components. By isolating sensitive control logic from primary line noise and fluctuations, it prevents erratic component behavior and safeguards solid-state instrumentation from costly voltage spikes.
- Built to Schneider’s demanding Type T performance standards, this industrial control transformer is wound with premium-grade copper magnet wire to deliver exceptional voltage regulation during high-inrush startup conditions. It successfully handles the brief, heavy current surges required to close large motor starters without causing severe voltage dips that drop out secondary control components.
- Outfitted with heavy-duty, molded-in terminal blocks and high-barrier isolation walls, this transformer simplifies wire termination while physically preventing stray wire strands from causing phase-to-phase shorts. The robust screw terminals accept standard ring or spade lugs, allowing field technicians to complete secure, code-compliant connections that drastically reduce routine troubleshooting and maintenance windows.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- T
Product Or Component TypeIndustrial Control Transformer
Complementary
- Height
- 2.89 in
- Material
- copper: winding
- Rated Power In Va
- 50 VA UL || 50 VA CSA || 50 VA NOM || 50 VA CE
- Depth
- 3.34 in
- Primary Voltage
- 208/240/277/380/480 V 24 V
Temperature Rise55 °C
Electrical Connectionscrew clamp terminals
Width3.38 in
Product CompatibilityFSC23
Network Number Of Phases1 phase
Environment
- Product Certifications
- UL listed file E61239 || CSA file LR37055 guide 184-N-90
- Insulation Temperature
- 105 °C
Nema Degree Of Protectionnot rated (open device)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1308008EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
