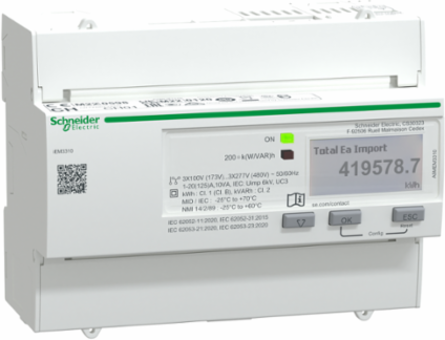

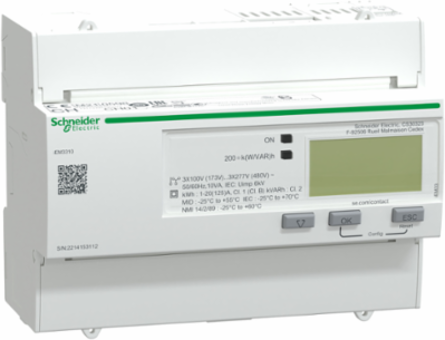

Schneider Electric A9MEM3310 Acti9 iEM3310 Energy Meter 125A, LCD Display, 1 Pulse Output
Schneider Electric A9MEM3310 Acti9 iEM3310 Energy Meter 125A, LCD Display, 1 Pulse Output
- MPN: A9MEM3310
- PPN: SCH-A9MEM3310
- UNSPSC: 39121117
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$598.11/ EA
Description
The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking and communication indicators. This meter can be used in sub-billing and partial metering applications. The meter provides the following accuracy classes: Active Energy: class 1 per IEC 62053-21, Active Energy: class B per EN 50470-3 and Active Energy: class 1 per IEC 61557-12. The meter will measure Active and Reactive Power, Active and Reactive Energy. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. Line rated current for this meter is up to 125A via direct connect and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. No primary communication ports. There is one digital pulsed output for energy reading. Certifications include EAC, CE, UL and MID. Product dimensions are as follows: width 4.96 in (126 mm), depth 2.72in (69 mm), height 4.1 in (103 mm) and product weight 9.17 oz (260 g).
Features
- Feature-rich energy meters
- Simple energy monitoring compatible with Building management systems
- Compact, DIN rail mounted form factor
- Energy pulse output for remote monitoring
- Identify energy savings opportunities with precision accuracy of Class 1.0
- Collect and analyze energy consumption data
- Direct connect up to of 63Amps in three phase network
- Three phase DIN rail mount energy meter
- Large LCD display for easy reading
Specifications
Communications & Management Attributes
- Communication Port Protocol
- -, -
Communication Port Support-, -
Physical Attributes
- Color
- White
Conformance Attributes
- Product Certifications
- MID EN 50470-1 sub-meter), CE IEC 61010-1 safety), CE EN 61557-12 power monitor), CE EN/IEC 61326-1 EMC), UKCA BS EN 61010-1 safety), UKCA BS EN 61557-12 power monitor), UKCA BS EN 61326-1 EMC), cULus UL 61010-1 safety), cULus EN 61010-1 safety), EAC EN 50470-3 sub-meter), RCM EN 62052 sub-meter), KZ EN 50470-3 sub-meter), METAS EN 50470-1 sub-meter), MID EN 50470-3 sub-meter), NMI NMI M 6-1
StandardsBS IEC 61557-12:2021, EN 61557-12:2021, BS IEC 61326-1, EN 61326-1, BS IEC 62052-11:2020, EN 62052-11:2020, BS IEC 62053-21, EN 62053-21, BS IEC 62053-23:2020, EN 62052-23, BS IEC 62052-31:2015, EN 62052-31:2015, BS EN 61010-1:2010, IEC 61010-1:2010, UL 61010-1:2010, BS IEC 61010-2-30, EN 61010-2-30, UL 61010-2-30, BS EN 50470-3, BS EN 50470-1, ANSI C12.16
Complementary Attributes
- Rated Voltage
- 100-277 V, 173-480 V
- Maximum Value Measured
- 99999999.9 kWh
Line Rated Current125 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- RESIDENTIAL, COMMERCIAL, INDUSTRIAL
- Device Application
- sub billing, partial meter
- Market Segment
- buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: panelboard, buildings large building cost management: billing: sub feeder, buildings large building cost management: billing: panelboard, buildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: panelboard, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: panelboard, buildings medium building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: panelboard, buildings large building cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: panelboard, buildings multi-site cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: panelboard, data center cost management: cost allocation, healthcare cost management: cost allocation, industry cost management: cost allocation, buildings small building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: panelboard, buildings medium building cost management: billing: main incomer, buildings large building cost management: billing: main incomer, buildings multi-site cost management: billing: main incomer, data center cost management: billing, healthcare cost management: billing, industry cost management: billing, buildings small building cost management: cost allocation: main incomer
- Poles Description
- 3P, 1P + N, 3P + N
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.7165816936631642, 0.7 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 11 kg CO2 eq., 10.70179224378196
- Local Data Status
- Publishable
- Manufacturer
- Schneider Electric
- Serviceability
- No
- Field Service Division
- DPIBS
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Device Short Name
- iEM3310
- Energy Efficiency Optimized
- False
- Mounting Mode
- clip-on
- Overvoltage Category
- III
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- Acti9
- Sampling Rate
- 32 samples/cycle
- Technology Type
- electronic
- Type Of Measurement
- active energy
- Connections Terminals
- screw terminals 50-50 mm²
- Stocking Flag
- Y
- Pep Code
- ENVPEP1404007EN
- Pep Verification Date
- 2024-02-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- EACH
- Energy Model Installation A5 2
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Production mix; Low voltage; UE-27
- Product Name
- Acti9 iEM3000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationResidential, Commercial, Industrial
Local SignallingGreen indicator light power ON, Yellow flashing LED accuracy checking
Network Frequency60 Hz, 50 Hz
Carbon Footprint Of The Distribution Phase A40.11453066655112516, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.1 kg CO2 eq., 0.11465960380707435
Carbon Footprint Of The Use Phase B2 B3 B4 B649 kg CO2 eq., 48.60842105263158
Local Publishable Date2025-07-09
Device TypeRelay, Control & Measurement - measuring, monitoring device
TraceabilityYes
Average Life Duration15 year(s)
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1404007_V2
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Compatibility CodeiEM3310
Display TypeLCD display
Measurement Current0-125 A
Mounting SupportDIN rail
Package Weight Lbs674.000 g
Product Or Component Typeenergy meter
ReturnabilityNo
Sustainable PackagingNo
Total Lifecycle Carbon Footprint60 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Medium DesciEM3310 energy meter - 125 A - 1 pulse O - MID
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionThis is a energy measuring meter which can measure 125 A current with Modbus protocol,1 digital input and 1 digital Output feature for service life of 10 years& 10Dimensions: H103.2mm x L126mm x D69.3mm& 10IP40 front panel: conforming to IEC 60529& 10IP20 body: conforming to IEC 60529
Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; CN
Energy Model Use B6 2Electricity Mix; Production mix; Low voltage; UE-27
Global Commercial StatusCommercialised
Connections Terminals3screw terminals 50-50 mm²
Environment Attributes Main
- Take Back
- Nej, No
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 60.255985260434905
- Ambient Air Temperature For Storage
- -40-85 °C
- Environmental Disclosure
- ENVPEP1404007EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1404007EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Operation-25-55 °C - MID, -25-55 °C - MID, -25-70 °C - IEC, -25-70 °C - IEC, -25-60 °C - IEC, -25-60 °C - IEC, -25-55 °C - MID, -25-55 °C - MID, -25-70 °C - IEC
IP Degree Of ProtectionIP40 front panel: conforming to IEC 60529, IP20 body: conforming to IEC 60529
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
9 MM Pitches14
Circularity ProfileENVEOLI1404007_V2
Operating Altitude< 9842.52 ft (3000 m)
Packaging Without Single Use PlasticNo
Relative Humidity5-95 % 50-50 °C
Pep Verification Date2024-02-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- energy meter
Output Attributes
- Number Of Outputs
- 1 pulse
Input Attributes
- Analogue Input Type
- direct connection
Number Of Inputs0
Specifications
- Depth
- 69.3 mm
