Weidmuller 1984590000 TERMSERIES Relay Module, 1 CO Contact, 120V AC, 6A, 6.4mm Width
Weidmuller 1984590000 TERMSERIES Relay Module, 1 CO Contact, 120V AC, 6A, 6.4mm Width
- MPN: 1984590000
- PPN: WDM-1984590000
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$47.21/ EA
Description

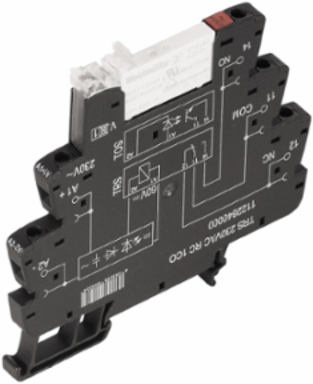

TERMSERIES, Relay module, Number of contacts: 1 CO contact AgNi, Rated control voltage: 120 V AC ±10 %, Continuous current: 6 A, Screw connection
Specifications
General Data
- Version
- cULus C1D2
- Test button
- No
- Colour
- black
RailTS 35
Mechanical switch position indicatorNo
UL 94 flammability ratingV-0
Approvals
- Approvals
- CE, CULUSEX, EAC
ROHSConform
Dimensions And Weights
- Width
- 6.4 mm
- Height
- 89.6 mm
- Depth
- 87.8 mm
- Net weight
- 34 g
Width (inches)0.252 inch
Height (inches)3.528 inch
Depth (inches)3.457 inch
Connection Data
- Wire connection method
- Screw connection
- Tightening torque, max.
- 0.4 Nm
- Clamping range, min.
- 0.14 mm²
- Wire connection cross section AWG, min.
- AWG 26
- Wire cross-section, solid, min.
- 0.14 mm²
- Wire connection cross-section, finely stranded, min.
- 0.14 mm²
- Wire cross-section, finely stranded, min. (AWG)
- AWG 26
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.25 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.
- 0.25 mm²
- Wire connection cross section, finely stranded, two clampable wires, min.
- 0.5 mm²
- Twin wire-end ferrules, min.
- 0.5 mm²
- Blade size
- size PH0
Stripping length, rated connection8 mm
Clamping range, rated connection1.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 14
Wire cross-section, solid, max.2.5 mm²
Wire connection cross section, finely stranded, max.2.5 mm²
Wire cross-section, finely stranded, max. (AWG)AWG 14
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.2.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.2.5 mm²
Wire cross-section, finely stranded, two clampable wires, max.1 mm²
Twin wire-end ferrules, max.1 mm²
Gauge to IEC 60947-1A1, B1
Rated Data Ul
- Ambient temperature (operational), max.
- 60 °C
- Connection cross-section AWG, min.
- AWG 26
- Type of conductor
- rigid copper conductor, flexible copper conductor
- Pollution severity level
- 2
Temperature classT5
Connection cross-section AWG, max.AWG 14
Tightening torque, max.0.4 Nm
Contact Data
- Contact type
- 1 CO contact (AgNi)
Mechanical service life5 x 106 switching cycles

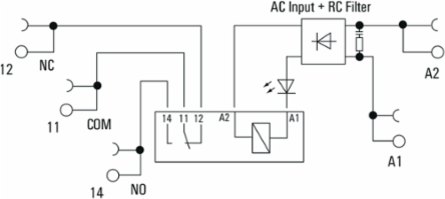

Input
- Rated control voltage
- 120 V AC ± 10 %
- Power rating
- 840 mVA
- Pull-in/drop-out current, typ.
- 4 mA / 2.5 mA AC
- Protective circuit
- Rectifier, RC element
- Coil voltage of the replacement relay deviating from the rated control voltage
- Yes
Rated current AC7 mA
Pull-in/drop-out voltage, typ.79 V / 60 V AC
Status indicatorGreen LED
RC filter94 Ω / 100 nF
Coil voltage of the replacement relay60 V DC
Classifications
- ETIM 6.0
- EC001437
- eClass 9.0
- 27-37-16-01
- eClass 10.0
- 27-37-16-01
ETIM 7.0EC001437
eClass 9.127-37-16-01

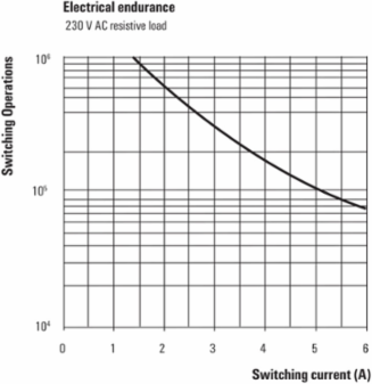

Output
- Rated switching voltage
- 250 V AC
- Max. switching voltage, DC
- 250 V
- Inrush current
- 20 A / 20 ms

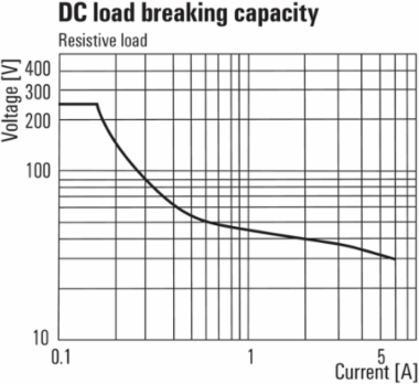

- DC switching capacity (resistive), max.
- 144 W @ 24 V
- Switch-off delay
- < 4 ms
- Max. switching frequency at rated load
- 0.1 Hz
Max. switching voltage, AC250 V
Continuous current6 A
AC switching capacity (resistive), max.1500 VA
Switch-on delay< 5.3 ms
Min. switching power1 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- Rated voltage
- 300 V
- Pollution severity
- 2
- Dielectric strength, Input/Output
- 4 kVeff / 1 Min.
- Dielectric strength of open contact
- 1 kVeff / 1 min
- Impulse withstand voltage
- 6 kV (1.2/50 µs)
Surge voltage categoryIII
Protection degreeIP20
Creepage and clearance distance input – output≥ 5.5 mm
Dielectric strength to mounting rail4 kVeff / 1 Min.
Temperatures
- Humidity
- 5-95% relative humidity, Tu = 40°C, without condensation
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
Operating temperature, max.60 °C
Storage temperature, max.85 °C
Operating temperature-40 °C...60 °C
Further Details Of Approvals / Standards
- Standards
- EN 50178, EN 55011, EN 61000-6-1, 2, 4
Certificate no. (cULusEX)E324123
