Fluke TS54-A-09-TDR TS® 54 TDR Test Set
- MPN: TS54-A-09-TDR
- UPC: 754082081654
- PPN: FLU-TS54-A-09-TDR
CAD
$1221.04
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

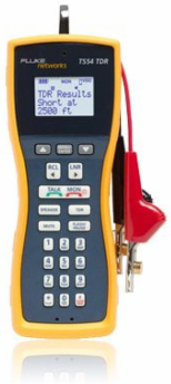

Fluke Networks’ new TS52 PRO Test Set features the latest in test set technology. Designed with a superior, radiant liquid crystal display (LCD) user interface, it allows you to see what cannot be heard in any outside plant environment. The innovative TS®54 TDR (Time Domain Reflectometer) is perfect for voice, data and video technicians and communication service provider technicians who need a best-in-class test set. There’s nothing else like the TS54 TDR on the market today. No longer will you need to carry a separate TDR, toner, pair identifier—everything you need is in one newly redesigned and compact test set—that’s a 62% weight reduction and a 20% cost reduction over existing products. The TS54 delivers 20% more extreme weather protection with the latest advancements to our patented RainSafe™, DropSafe™ and DataSafe™ technology. This means the TS54 is weatherproof and rugged and able to butt in on live DSL lines to test POTS quality without crashing data service. TS® Professional Series – Products Comparison
Documentation & Downloads
Specifications
Current measurement
| Range | 0 mA to 100 mA |
|---|
Voltage measurement
| Range | 4 V dc to 140 V dc |
|---|
AC Impedance
| Off-hook | 600 Ω nominal; 300 Hz to 3400 Hz |
|---|---|
| Headset impedance | 32 Ω |
| On-hook | >120 kΩ 300 Hz to 3400 Hz |
|---|
Environmental Temperature Range
| Handset speech and dialing functions | -22°F to 140 °F (-30°C to 60°C) |
|---|---|
| Storage | -22°F to 150°F (-30°C to 66°C) |
| Relative Humidity | 75% to 40°C || 95% to 30°C || 45% to 50°C || 30% to 60°C |
| LCD function | -13°F to 140°F (-25°C to 60°C) |
|---|---|
| Altitude | To 10,000 ft. (3,000 m) max |
Rotary Dial Output
| Pulsing Rate | 10 pps ±1 pps |
|---|---|
| Interdigit interval | >300 ms |
| Break/make ratio | 60/40 |
|---|---|
| Resistance during break | >100 kΩ |
SmartTone toner
| Frequencies | Steady tone: 950 Hz |
|---|
Electrical
| Current range (Off-hook) | 10 mA to 100 mA |
|---|
DTMF Output
| Tone frequency error | ±1.5 % maximum |
|---|---|
| High versus low tone difference | 2 dB ± 2 dB |
| Tone Level | -3 dBm combined (typical) |
|---|
TDR
| Range | 3,000 feet (914 m) |
|---|
| Accuracy | ±2 m ±5 % |
|---|
DC Resistance
| Off-hook | 150 Ω nominal |
|---|
| On-hook | >3 M Ω |
|---|
Physical
| Measurement | 8.3 in x 3.2 in x 2.6 in (211 mm x 81 mm x 66 mm) (without belt) |
|---|---|
| Water resistance | The test set is rain and moisture resistant and IP64 rated |
| Weight | 1.16 lb (0.53 kg) (without belt clip) |
|---|
Power
| Battery type | 9 V alkaline battery |
|---|
Speed Dialing
| Memory capacity | 9 speed dial memoriesof 23 digits, plus one last number redial memory |
|---|---|
| Hook flash duration | User programmable; default of 500 ms |
| PBX pause duration | User programmable; default of 4 seconds |
|---|---|
| Automatic shut-off duration | User programmable; default of 2 minutes |
Safety
| Regulatory compliance | Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 No 61010-1-04, UL 61010-1 (2004) and IEC 61010-1:2010 for measurement category I, 300 V dc maximum, pollution degree 2 |
|---|---|
| EMC | Complies with EMC EN61326-1 |
| Maximum transient voltage | 1500 V |
|---|
