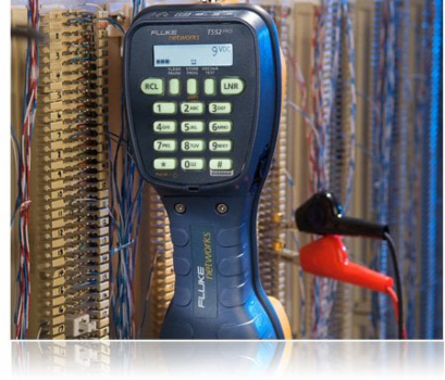

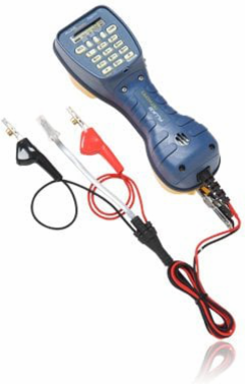

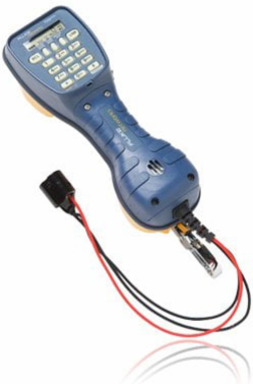

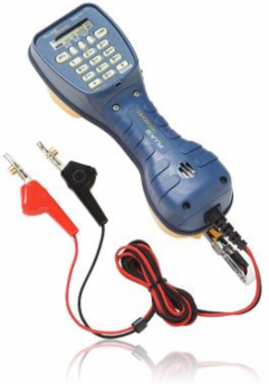

Fluke 52801004 TS® 52 PRO Test Sets
- MPN: 52801004
- UPC: 754082063209
- PPN: FLU-52801004
CAD
$963.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

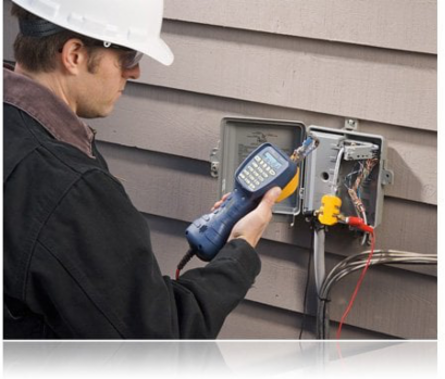

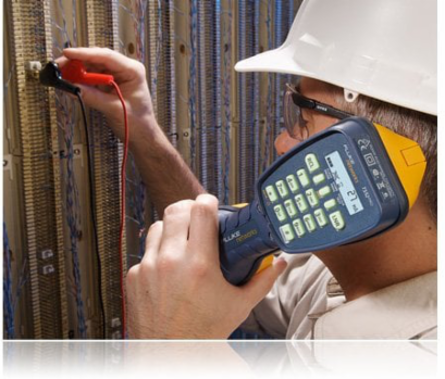

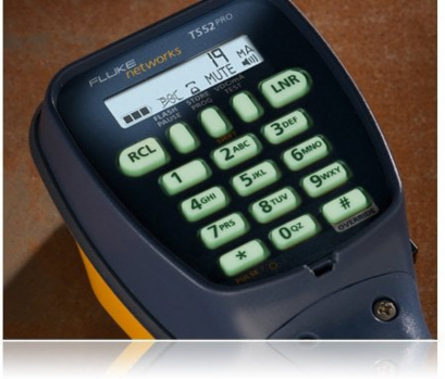

Fluke Networks’ new TS52 PRO Test Set features the latest in test set technology. Designed with a superior, radiant liquid crystal display (LCD) user interface, it allows you to see what cannot be heard in any outside plant environment. The back lit LCD and phosphorescent (glow-in-the-dark) keypad brings light to even the darkest of work environments, providing perfect line diagnostic clarity. The TS52 PRO Test Set is also equipped with 2-way speakerphone and DataSafe™ Pro data protection technology featuring superior high-impedance monitoring, Data Lockout and Lockout Override, making you completely safe. TS® Professional Series – Products Comparison
Documentation & Downloads
Specifications
AC Impedance
| Off-Hook | 600 Ω nominal; 300 Hz to 3400 Hz |
|---|
| On-Hook | >120 kΩ 300 Hz to 3400 Hz |
|---|
Memory Dialing
| Memory Capacity | 10 speed dial memories plus one last number redial memory |
|---|---|
| PBX Pause Duration | 4 seconds |
| Automatic Speaker Shut Off Duration | User programmable; default of 2 minutes |
| Digit Capacity | 23 digits per memory |
|---|---|
| Hook Flash Duration | User programmable; default of 600 ms |
| Battery | 9 V alkaline battery |
Temperature Range
| Handset speech and dialing functions | -22°F to 140 °F (-30°C to 60°C) |
|---|---|
| Storage | -22°F to 150°F (-30°C to 66°C) |
| Relative Humidity | 75% to 40°C || 95% to 30°C || 45% to 50°C || 30% to 60°C |
| EMC | Complies with EMC EN61326-1 |
| LCD function | -13°F to 140°F (-25°C to 60°C) |
|---|---|
| Altitude | To 10,000 ft. (3,000 m) max |
| Safety | Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 No 61010-1-04, UL 61010-1 (2004) and IEC/EN 61010-1 2nd Edition for measurement Category I, 300 Vdc Max, Pollution Degree 2 |
Rotary Dial Output
| Pulsing Rate | 10 pps ±1 pps |
|---|---|
| Interdigit Interval | >300 ms |
| Break/Make Ratio | 60/40 |
|---|---|
| Resistance During Break | >100 kΩ |
Electrical
| Current Range (Off-Hook) | 10 mA to 100 mA |
|---|
DTMF Output
| Tone Frequency Error | ±1.5 % maximum |
|---|---|
| High versus Low Tone Difference | 2 dB ± 2 dB |
| Tone Level | -3 dBm combined (typical) |
|---|
DC Resistance
| Off-Hook | 150 Ω nominal |
|---|
| On-Hook | >3 M Ω |
|---|
Physical
| Measurement | 10 in x 3.75 in x 4.25 in (254 mm x 96 mm x 107 mm) |
|---|---|
| Water Resistance | Designed to be rain and moisture resistant. |
| Weight | Less than 1.5 pounds (0.68 kg) with one belt clip |
|---|---|
| Drop Test | Passes 20 foot drop test |
