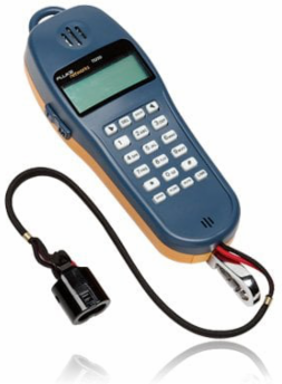

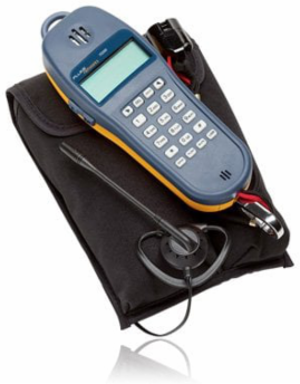

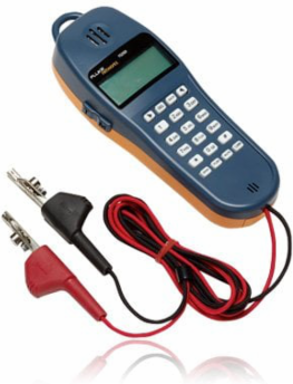

Fluke 25501009 TS® 25D Test Sets
- MPN: 25501009
- UPC: 754082038795
- PPN: FLU-25501009
CAD
$623.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This feature-rich test set is a necessity for a variety of installs. The TS25D Test Set features data lockout and lockout override, making you completely safe in talk or monitor mode. The DSL/POTS filtering technology allows you to safely draw dial tone without downing DSL. A built-in analog tone generator simplifies wire identification with a probe. An amplified speaker makes monitoring the line hands-free, so you can keep working. The talk battery function provides voltage to carry voice conversation on non-powered pairs. All in a compact unit with an oversized robust liquid crystal display (LCD) that makes the intuitive, common-sense menus easy-to-read and use. TS® Professional Series – Products Comparison
Documentation & Downloads
Specifications
AC Impedance
- Off-Hook
- 600 Ω nominal; 300 Hz to 3400 Hz
On-Hook>120 kΩ; 300 Hz to 3400 Hz
Memory Dialing
- Memory Capacity
- 10 speed dial memories plus one last number redial memory
- Pause Duration
- User programmable Default: 4 seconds
- Automatic Speaker Shut Off Duration
- User programmable TS25D default: 5 minutes TS25D CO default: 2 minutes
Digit Capacity23 digits per memory
Hook Flash DurationUser programmable Default: 600 ms
Battery9 V alkaline or lithium battery
Rotary Dial Output
- Pulsing Rate
- 10 pps ±1 pps
- Interdigit Interval
- >300 ms
Break/Make Ratio60/40
Resistance During Break>100 kΩ
Electrical
- Return Loss
- >14 dB (ref 600 Ω)
DTMF Output
- Tone Frequency Error
- ±1.5 % maximum
- High versus Low Tone difference
- 2 dB ± 2 dB
Tone Level–1 dBm combined (typical)
DC Resistance
- Off-Hook
- 150 Ω nominal
On-Hook>1 MΩ
Physical
- Measurement
- 7.8 in x 2.7 in x 1.6 in (20 cm x 6.8 cm x 4 cm)
Weight10 ounces (284 g)
Environmental
- Temperature Range Operating
- 32°F to 122 °F (0 °C to 50 °C)
- Altitude
- Up to 10,000 ft (3,000 m)
Storage-40 °F to 150 °F (-40 °C to 65 °C)
Relative Humidity5 % to 95 %
