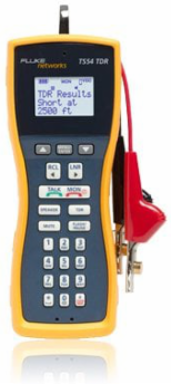

Fluke TS54-BANA TS® 54 TDR Test Set
- MPN: TS54-BANA
- UPC: 754082081784
- PPN: FLU-TS54-BANA
CAD
$1221.04
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Fluke Networks’ new TS52 PRO Test Set features the latest in test set technology. Designed with a superior, radiant liquid crystal display (LCD) user interface, it allows you to see what cannot be heard in any outside plant environment. The innovative TS®54 TDR (Time Domain Reflectometer) is perfect for voice, data and video technicians and communication service provider technicians who need a best-in-class test set. There’s nothing else like the TS54 TDR on the market today. No longer will you need to carry a separate TDR, toner, pair identifier—everything you need is in one newly redesigned and compact test set—that’s a 62% weight reduction and a 20% cost reduction over existing products. The TS54 delivers 20% more extreme weather protection with the latest advancements to our patented RainSafe™, DropSafe™ and DataSafe™ technology. This means the TS54 is weatherproof and rugged and able to butt in on live DSL lines to test POTS quality without crashing data service. TS® Professional Series – Products Comparison
Documentation & Downloads
Specifications
Current measurement
- Range
- 0 mA to 100 mA
Voltage measurement
- Range
- 4 V dc to 140 V dc
AC Impedance
- Off-hook
- 600 Ω nominal; 300 Hz to 3400 Hz
- Headset impedance
- 32 Ω
On-hook>120 kΩ 300 Hz to 3400 Hz
Environmental Temperature Range
- Handset speech and dialing functions
- -22°F to 140 °F (-30°C to 60°C)
- Storage
- -22°F to 150°F (-30°C to 66°C)
- Relative Humidity
- 75% to 40°C || 95% to 30°C || 45% to 50°C || 30% to 60°C
LCD function-13°F to 140°F (-25°C to 60°C)
AltitudeTo 10,000 ft. (3,000 m) max
Rotary Dial Output
- Pulsing Rate
- 10 pps ±1 pps
- Interdigit interval
- >300 ms
Break/make ratio60/40
Resistance during break>100 kΩ
SmartTone toner
- Frequencies
- Steady tone: 950 Hz
Electrical
- Current range (Off-hook)
- 10 mA to 100 mA
DTMF Output
- Tone frequency error
- ±1.5 % maximum
- High versus low tone difference
- 2 dB ± 2 dB
Tone Level-3 dBm combined (typical)
TDR
- Range
- 3,000 feet (914 m)
Accuracy±2 m ±5 %
DC Resistance
- Off-hook
- 150 Ω nominal
On-hook>3 M Ω
Physical
- Measurement
- 8.3 in x 3.2 in x 2.6 in (211 mm x 81 mm x 66 mm) (without belt)
- Water resistance
- The test set is rain and moisture resistant and IP64 rated
Weight1.16 lb (0.53 kg) (without belt clip)
Power
- Battery type
- 9 V alkaline battery
Speed Dialing
- Memory capacity
- 9 speed dial memoriesof 23 digits, plus one last number redial memory
- Hook flash duration
- User programmable; default of 500 ms
PBX pause durationUser programmable; default of 4 seconds
Automatic shut-off durationUser programmable; default of 2 minutes
Safety
- Regulatory compliance
- Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 No 61010-1-04, UL 61010-1 (2004) and IEC 61010-1:2010 for measurement category I, 300 V dc maximum, pollution degree 2
- EMC
- Complies with EMC EN61326-1
Maximum transient voltage1500 V
