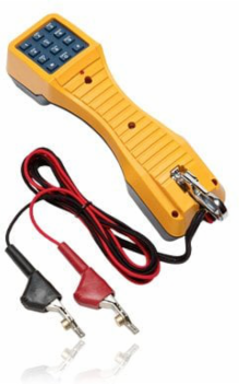

Fluke 19800003 TS® 19 Test Sets
- MPN: 19800003
- UPC: 754082038320
- PPN: FLU-19800003
CAD
$337.04
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Fluke Networks TS19 Test Set combines all the essential test set features at an affordable price. This test set was specifically designed for in-house telecom technicians. Its high impedance monitor prevents accidental disruption of service from clipping onto a data line while in monitor mode, thus ensuring the integrity of critical data lines. Features such as tone (DTMF) or pulse operation, talk/monitor capabilities, polarity test button and last number redial make this test set the perfect combination of features and price. TS® Professional Series – Products Comparison
Documentation & Downloads
Specifications
Physical
| Length | 8.75 in (22.2 cm) |
|---|---|
| Height | 3.375 in (8.57 cm) |
| Width | 2.375 in (6.03 cm) |
|---|---|
| Weight | 10.8 oz (.307 kg) maximum |
Electrical
| Loop Limit | 2.4 kΩmaximum at 48 VDC (nominal 15 mA minimum loopcurrent) |
|---|---|
| AC Impedance (Monitor Mode) | High impedance (HI Z position) 100 kΩminimum at 1 KHz || Low impedance (Ring position) 600 Ωat 1 KHz typical |
| Pulsing Rate | 60 % ± 2 % |
| Interdigit Interval Leakage During Break | > 50 kΩ |
| Tone Frequency Error Level per Tone Pair | dBm maximum, - dBm minimum |
| DC Resistance (Talk Mode) | 150 Ωtypical at 80 mA current |
|---|---|
| Rotary Dial Output | 10 pps .5 pps |
| Percent Break | 800 ms typical |
| DTMF Output | ±1 % maximum |
| High versus Low Tone Difference | 4 dB maximum |
Environmental
| Temperature | Storage: -40 °C to °C || Operating: -5 °C to °C |
|---|---|
| Altitude | To 3,000 meters (10,000 feet) maximum |
| Regulatory Standards Used | AS/NZS 3548 || LV Directive 73/23/EEC, EN 610010.1 (1993) || 47 CFR Part 15, Subpart B || EMC Directive 89/336/EEC, EN 55022:98, EN 61326:97, A1:98 Annex C, EN 61000-4-2, EN 61000-4-3 || ICES-003 Issue 3 |
| Drop | 1 meter, 4 times |
|---|---|
| Relative Humidity | 10 %to 80 % (non-condensing) |
| Certifications and Compliance | CAN/CSA-C22.2 No. 1010.1-92 CSA-C22.2 No. 1010.1B-97, UL/ANSI 3111-1 || CAN/CSA-C22.2 No. 60950-1-03 |
