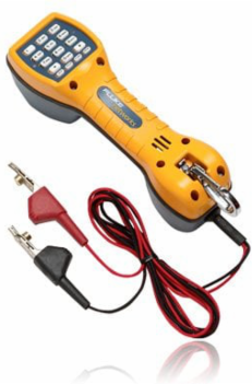

Fluke 30800001 TS® 30 Series Test Sets
- MPN: 30800001
- UPC: 754082039327
- PPN: FLU-30800001
CAD
$656.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Recognized as the industry standard for basic test sets, the TS30 Test Set provides superior quality at an affordable price. With its high impedance Monitor for DataSafe™ operation, technicians can clip onto a line in Monitor mode without disrupting existing traffic. Fluke Networks’ unsurpassed RainSafe™ protection standards and DropSafe™ durability assure the test set will keep working even in the toughest environments. Solid weatherproofing provides enhanced resistance to severe weather conditions. TS® Professional Series – Products Comparison
Documentation & Downloads
Specifications
Last Number Redial (Tone/Pulse)
- Memory Capacity Memory Retention
- 23 digits 8-minutes nominal
- Ringer Loudness
- > 70 dBA at 1 meter
- Measurements
- 10 in x 2.83 in x 3.34 in (25.5 cm x 7.2 cm x 8.5 cm)
Flash Duration600 ms ±100 ms
Ringer Equivalent (REN)0.14
Weight16.8 ounces (0.476 kg)
Pulse Dial Output
- Pulsing Rate
- 10 pps pps
- Inter-digit Interval
- 800 ms %, -10%
- Protection Against Alternating Current Overvoltage
- The TS30 survives up to 250 Vrms across its test leads.
- DTMF Output Tone Frequencies Tone Frequency Error
- per ITU-T Q.23 ±1.5% Maximum
Open/Close Ratio60/40
Resistance During Pulse Open> 200,000 Ω
Peak Acoustic Output of the Receiver<120 dBspl
Electrical
- Return Loss
- >14 dB (ref 600 Ω)
- Resistance to Continuous Current (Talk Mode)
- 275 Ω typical at 20 mA
Line Current Range15 mA to 120 mA
Monitor Mode Impedance>120,000 Ω 300 Hz to 3400 Hz
Tone Level
- High Group Low Group
- -4 dBm (into 600 Ω) -6 dBm (into 600 Ω)
High vs Low Tone Difference2dB +1db
Environmental
- Temperature Operating Storage
- -40 °F to +151 °F (-40°C to +66°C) || -4 °F to +140 °F (-20°C to +60°C)
Relative Humidity5% to 95%
Safety
- Telecom Electrical
- TNV-3
Safety ClassificationIP54
