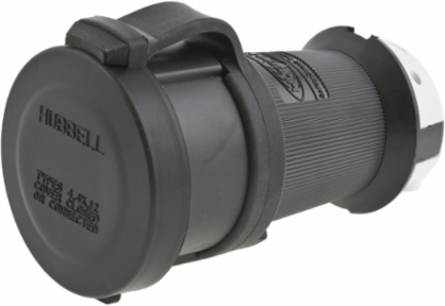

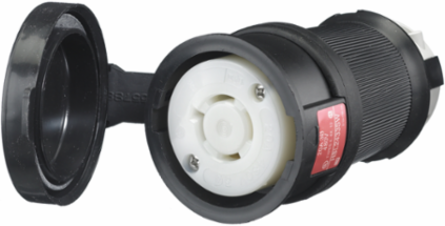

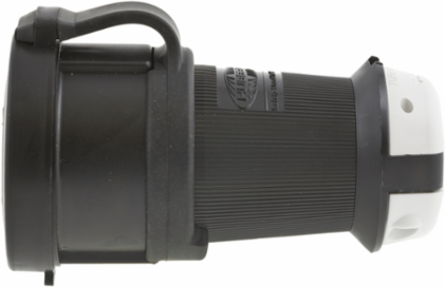

Hubbell Wiring Device-Kellems HBL2433SW Twist-Lock Female Connector Body, 20A 3-Phase, 480V AC, NEMA L16-20R
- MPN: HBL2433SW
- UPC: 783585231464
- PPN: HBL-HBL2433SW
- UNSPSC: 39121421
CAD
$203.08
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Female Connector Body, 20A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, NEMA L16-20R, Screw Terminal, Black PBT housing, White PBT clamps.
Features
- UL Type 4X Environmental seal protects connection while in use.
- One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
- Closure cap is included for environmental seal when device is not in use
- Superior cord grip design protects terminations from excess strain.
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL2433SW AutoCAD Drawing
- General Literature Asset 2 Display Text
- Wiring Device Solutions for Strategic Manufacturing Facilities
- Country of Origin
- United States
- Dimensions
- 2.75 in x 2.75 in x 4.40 in
- Horsepower - Maximum
- 5
- Length
- 2.75 in
- Standards - RoHS Compliance Status
- CM
- Application
- Heavy Duty Industrial
- Environmental Conditions
- Watertight
- NEMA Rating
- L16-20R
- Size
- 2.75 in x 2.75 in x 4.40 in
- Standard
- UL Listed, CSA Certified To Type 4, 4X And Type 12
- Type
- Connector Body
- Voltage Rating Description
- 480 V
- Width
- 2.75 in
- Dielectric Strength
- Withstands 2,000V minimum
- Nema Rating
- L16-20R
- Number Of Wires
- 4-Wire
- Phase
- Three Phase
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A130
- Cord Range
- 0.350"-1.150" (9-29)
- Cord Diameter
- 0.350-1.150 in
- Material
- Composite
- BOX SIZE
- 5.800x18.800x8.100 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585231464
- Case Weight
- 5.321 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 46.400 in
- Pallet Weight
- 878.400 lb.
- NAICS Code
- 335931A102
General Literature Asset 1 Display TextEntertainment Product Solution Guide
General Literature Asset 3 Display TextPulp & Paper Solutions
Current / Amperage Rating20 A
Height4.40 in
Industry Standard(s)UL Listed, CSA Certified To Type 4, 4X And Type 12
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17;Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating20 A
ColorBlack, White
InsulationInsulated Body
Number of Poles3-Pole
Special FeaturesStandard Product
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating480 V
Weight0.65 lb.
ConnectivityPressure Terminal Screws
Display SizeStandard
Number Of Poles3-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Wire Size#16 AWG to #8 AWG
Description - InvoiceLKG WT S/SHRD CONN, 20A3P 480V,L16-20R
Harmonization Code8536690200
MSDS FlagNo
Cable Range0.350 - 1.150 in
Material - Mounting HardwareCord Mounted
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack6.750 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585231463
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
