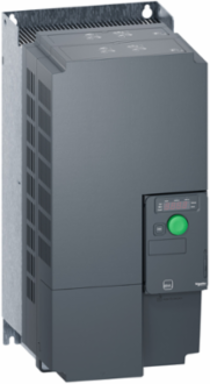

variable speed drive, Altivar Machine ATV320, 18.5kW, 400V, 3 phases, compact
variable speed drive, Altivar Machine ATV320, 18.5kW, 400V, 3 phases, compact
Schneider Electric

Schneider Electric ATV320D18N4C variable speed drive, Altivar Machine ATV320, 18.5kW, 400V, 3 phases, compact

  • MPN: ATV320D18N4C
  • PPN: SCH-ATV320D18N4C

CAD

$3413.00

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

variable speed drive, Altivar Machine ATV320, 18.5kW, 400V, 3 phases, compact

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, France, Indonesia, United States

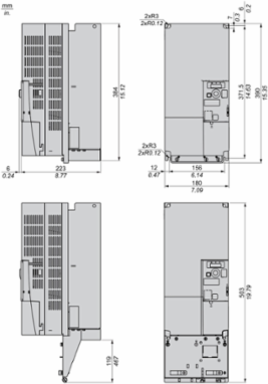

Depth229 mm

Communications & Management Attributes

Communication Port Protocol
Modbus serial

Complementary Attributes

Maximum Switching Current
relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R2A, R2C resistive, cos phi = 1 5 A 30 V DCrelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V ACrelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC, relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V ACrelay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC
Maximum Input Current Per Phase
55.3 A
Maximum Output Voltage
500 V
Brake Chopper Integratedtrue
Maximum Output Frequency0.599 kHz
Minimum Switching Currentrelay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC

Important Information Attributes

Asynchronous Motor Control Profile
voltage/frequency ratio, 5 points, flux vector control without sensor, standard, voltage/frequency ratio - Energy Saving, quadratic U/f, flux vector control without sensor - Energy Saving, voltage/frequency ratio, 2 points
Linearity Error
AI1, AI2, AI3 +/- 0.2...0.5 % of maximum value analog input, AQ1 +/- 0.3 % analog output
Option Card
communication module, CANopen, communication module, Profibus DP V1, communication module, PROFINET, communication module, Ethernet Powerlink, communication module, EtherNet/IP, communication module, DeviceNet
Refresh Time
logic input DI1...DI4)8 ms, relay output R1A, R1B, R1C)2 ms, relay output R2A, R2C)2 ms
Motor Power Kw 10 N Motor Power Kw
18.5 kW
Environmental Class (During Storage)
class 1C3 according to EN 60721-3, class 1S2 according to EN 60721-3
Carbon Footprint Of The Distribution Phase [A4]
2.326709206648623, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
2 kg CO2 eq., 2.010382550982532
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
9 393 kg CO2 eq., 9392.574096914977
Local Publishable Date
2026-01-12
Return Indicator
Y
Stock Policy
2
Serviceability
Yes
Field Service Division
IDIBS
Average Percentage Of Asi Certified Metals
100 %
Weee Scope
In
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI2404015EN
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
2408
China Rohs In Scope
Yes
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
1 Phase Low Current Possible
false
Apparent Power
36.7 kVA 500 V heavy duty)
Base Load Current At High Overload
40.0 A
Capacity Of Dc Link
2250 µF
Design Of Frequency Changer
U converter
Format Of The Drive
compact
Line Current
55.3 A 380 V heavy duty)42.4 A 500 V heavy duty)
Method Of Access
slave CANopen
Mounting Mode
wall mount
Nominal Switching Frequency
4 kHz
Number Of Hw Interfaces Other
1.0
Number Of Hw Interfaces Profinet
0.0
Number Of Hw Interfaces Serial Rs42
0.0
Number Of Hw Interfaces Serial Tty
0.0
Number Of Output Phases
3
Operating Position
vertical +/- 10 degree
Overvoltage Category
III
Product Availability
Stock - Normally stocked in distribution facility
Product Specific Application
complex machines
Range Of Product
Altivar Machine ATV320
Relative Symmetric Mains Voltage Tolerance
10 %
Returnability
Yes
Software Version
v6.1
Supporting Protocol For Bacnet
false
Supporting Protocol For Devicenet
true
Supporting Protocol For Foundation Fieldbus
false
Supporting Protocol For Knx
false
Supporting Protocol For Modbus
true
Supporting Protocol For Profibus
true
Supporting Protocol For Profinet Io
true
Supporting Protocol For Safetybus P
false
Supporting Protocol For Suconet
false
Switching Frequency
2...16 kHz adjustable4...16 kHz with derating factor
Total Lifecycle Carbon Footprint
9 607 kg CO2 eq.
Updatability
Upgradeable through digital modules
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Application In Industrial Area Permitted
true
Database Version
2023-02
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine's operating point for 22 kW for heavy duty electric motors for fluid management and industrial applications in IP20/UL type 1 conditions, at 380V to 500V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 80% uptime in use phase at 75% loading rate and 20% uptime in stand by phase.
Functional-unit Unit
unit
Energy Consumption On Product Lifetime In Kwh
22916.16
Energy Model - Installation [A5]
Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]
Electricity Mix; Low voltage; 2018; Europe, EU-27
Width Nominal
180 mm
Maximum Acceleration Under Shock Impact (During Operation)
150 m/s² at 11 ms
Maximum Acceleration Under Shock Load (During Transport)
150 m/s² at 11 ms
Maximum Acceleration Under Vibratory Load (During Storage)
10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load (During Operation)
1.5 mm at 2...13 Hz
Maximum Deflection Under Vibratory Load (During Transport)
3.5 mm at 2...13 Hz
Permitted Relative Humidity (During Storage)
class 1K5 according to EN 60721-3
Supporting Protocol For As-interface Safety At Work
false
Supporting Protocol For Ethernet/Ip
true
Supporting Protocol For Tcp/Ip
true
With Safety Function Safe Direction (Sdi)
false
With Safety Function Safe Position (Sp)
false
With Safety Function Safe Stop 1 (Ss1)
true
With Safety Function Safely Limited Position (Slp)
false
With Sft Fct Safe Stop 2 (Ss2)
false
Package Weight(Lbs)
11.765 kg
Warranty (In Months)
18
Percentage Bio Based Plastic
1 %
Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Motor Slip Compensationautomatic whatever the load, adjustable 0...300 %, not available in voltage/frequency ratio (2 or 5 points)
Protection Typeinput phase breaks drive, overcurrent between output phases and earth drive, overheating protection drive, short-circuit between motor phases drive, thermal protection drive
Speed Accuracy+/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn
Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3, class 3S2 according to IEC 60721-3-3
Environmental Class (During Transport)class 2C3 according to EN 60721-3, class 2S1 according to EN 60721-3
Carbon Footprint Of The End-of-life Phase [C1 To C4]22.09671317873089, 22 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]188 kg CO2 eq., 187.8981921934548
Local Data StatusPublishable
Pre Comm Announcement Date2023-08-16
Stocking FlagN
Device TypeVariable speed drive - VSD Compacts
TraceabilityYes
Average Life Duration10 year(s)
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Product Kit IdentifierN
4 Quadrant Operation Possibletrue
Application In Domestic And Commercial Area Permittedfalse
Braking To Standstillby DC injection
Computer Porttrue
Encoder ProtocolRS 422
Housing Materialplastic
Maximum Input Current Per Phase55.3 A
Motor Power Kw18.5 kW heavy duty
Network Frequency50-60 Hz
Number Of Hw Interfaces Industrial Ethernet0.0
Number Of Hw Interfaces Parallel0.0
Number Of Hw Interfaces Serial Rs230.0
Number Of Hw Interfaces Serial Rs4851.0
Number Of Hw Interfaces Usb0.0
Operating Element Presenttrue
Optical Interface Presentfalse
Phase3 phase
Product Or Component Typevariable speed drive
Prospective Line Isc22 kA
Regulation Loopadjustable PID regulator
Relative Symmetric Network Frequency Tolerance5 %
Sampling Duration2 ms AI1, AI2, AI3) - analog input2 ms AQ1) - analog output
Supporting Protocol For Asifalse
Supporting Protocol For Cantrue
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Interbusfalse
Supporting Protocol For Lonfalse
Supporting Protocol For Other Bus Systemstrue
Supporting Protocol For Profinet Cbafalse
Supporting Protocol For Profisafefalse
Supporting Protocol For Sercosfalse
Sustainable PackagingNo
Synchronous Motor Control Profilevector control without sensor
Transient Overtorque170-200 % of nominal motor torque
Volume Of Cooling Air156.0 m3/h
With Safety Function Safe Programmable Logicfalse
Pep CodeENVPEP2404015EN
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal390 mm
[Us] Rated Supply Voltage380...500 V380...500 V - 15...10 %
Maximum Acceleration Under Shock Load (During Storage)150 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13...200 Hz
Maximum Acceleration Under Vibratory Load (During Transport)10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load (During Storage)3.5 mm at 2...13 Hz
Permitted Relative Humidity (During Operation)class 3K5 according to EN 60721-3
Permitted Relative Humidity (During Transport)class 2K5 according to EN 60721-3
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Interbus-safetyfalse
With Safety Function Safe Brake Management (Sbc/Sbt)false
With Safety Function Safe Operating Stop (Sos)false
With Safety Function Safe Speed Monitor (Ssm)false
With Safety Function Safe Torque Off (Sto)true
With Safety Function Safely Limited Speed (Sls)true
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8504404000
Average Percentage Of Bio-based Plastic Content1 %

Environment Attributes Main

Ambient Air Temperature For Operation
-10-50 °C without derating, -10-50 °C without derating, -10-60 °C, -10-60 °C, -10-50 °C without derating, -10-50 °C without derating50-60 °C with derating factor
Ambient Air Transport Temperature
-25-70 °C, -25-70 °C
Recycled Metal Content At Cr Level
0 %
Carbon Footprint
9606.906094044794
Environmental Disclosure
ENVPEP2404015EN
Ip Degree Of Protection
IP20
Packaging Without Single Use Plastic
Yes
Pep Code
ENVPEP2404015EN
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent internal review
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Circularity ProfileENVEOLI2404015EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3-EN-2023 06 06

General Attributes

Phase
3 phase
Range Of Product
Altivar Machine ATV320
Product Or Component Typevariable speed drive

ETIM

ETIM 8
EC001857
ETIM 9EC001857

Output Attributes

Discrete Output Type
open collector DQ+ 0-1 kHz 30 V DC 100 mA, open collector DQ- 0-1 kHz 30 V DC 100 mA
Analogue Output Number
1
Discrete Output Number
3
Maximum Output Voltage
500 V
Relay Output Typeconfigurable relay logic R1A 1 NO 100000 cyclesconfigurable relay logic R1B 1 NC 100000 cycles, configurable relay logic R1C, configurable relay logic R2A 1 NO 100000 cycles, configurable relay logic R2C
Analogue Output Typesoftware-configurable current AQ1 0...20 mA 800 Ohm 10 bitssoftware-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
Maximum Output Frequency0.599 kHz
Nominal Output Power18.5 kW

Input Attributes

Analogue Input Type
AI1 voltage 0...10 V DC 30 kOhm 10 bits, AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bitsAI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
Discrete Input Type
STO safe torque off, 24 V DC1.5 kOhm, DI1...DI6 logic inputs, 24 V DC 30 V), DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
Discrete Input Number
7
Discrete Input Logicpositive logic (source), negative logic (sink)
Analogue Input Number3
Number Of Input Phases3
Loading video…

Similar Products

Loading carousel layout...

CAD$3413.00/ EA

Loading add to cart quantity...

banner

Need assistance?

We can help! Connect with our Sales Team Today!

Contact Us
