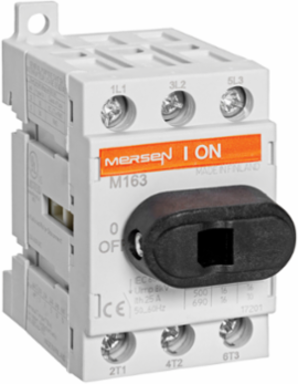

Mersen M163DM UL508 Switch 600VAC Non-Fused 16A 3-Pole Panel Mount
- MPN: M163DM
- PPN: FER-M163DM
CAD
$67.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The M-series Load Break Switch is the most compact industrial-grade switch on the market. Capable of making or breaking loads up to 600V (UL), it is suitable as a motor disconnect. Extremely compact and robust, these switches have a variety of mounting options including DIN-rail, base, or door-mounting. A wide assortment of handles, shafts and accessories is available to accommodate any installation requirement.
Specifications
Key Specifications
| Rated voltage AC UL | 600 V |
|---|---|
| ROHS Compliant | Yes |
| Short Circuit Current Rating (SCCR) | Up to 100 kA with fuses |
| Short Circuit Rating (Class RK5) | 5 kA w/60A kA |
| Wiring range | #18-8 |
| Torque Rating | 7 lb-in |
| Rated Insulation Voltage | 750 V |
| Width | 2.13 in |
| Height | 2.05 in |
| Ampere Rating | 16 A |
|---|---|
| AC or DC | AC |
| Short Circuit Rating (Class J) | 10 kA w/60A kA |
| Number of Poles | 3-Pole |
| Connection/Terminal Type | Box |
| Max Horsepower Rating/FLA | 3-Phase: 240V 5HP, 480V 10HP, 600V 10HP; 1-Phase 120V 1HP, 240V 2HP |
| Installation Mounting | Panel Mount |
| Length | 1.69 in |
| Weight | 0.286 lb |
