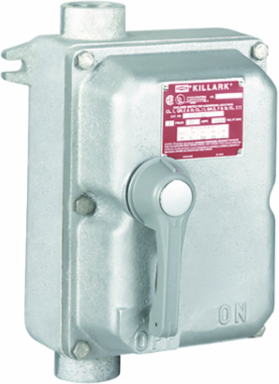

Killark XEDS-100AA Non-Fused Disconnect Switch, 100 Amp, Wall Mount, 3 Poles, Aluminum Enclosure
- MPN: XEDS-100AA
- UPC: 783936898056
- PPN: HBL-XEDS-100AA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
XEDS Series, 100 Amp Max, Non-Fused Disconnect Switch W/ 2 Aux Contacts
Features
- External handle is vault type with standard provisions for locking in "OFF" position with up to three padlocks.
- Provisions for locking in "ON" position available as factory modification (add suffix SU40 to catalog number).
- Enclosure and external handle is cast copper-free aluminum alloy (less than 4/10 of 1%).
- Cover bolts are stainless steel.
- Eaton (Cutler Hammer) Type DS Switches.
- Two cast conduit hubs, one top and one bottom.
- Internal disconnect handle mechanism is a sliding plate mounted to the cover.
- Suitable for indoor applications.
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Operating Temperature Celcius Max
- 40 Degree
- Weight
- 17 lb.
- Enclosure Type
- Bolted
- Mounting Type
- Wall
- Number Of Poles
- 3
- Type
- Non-Fused Disconnect
- Class Code
- D25
- Freight Class Code
- 06316011
- Image Actual Or Representative
- R
- Sub Class Code
- D25D251
- UL File Number
- E53290
- Series
- XEDS Series
- BOX SIZE
- (in)
- NAICS Code
- 3353137100
Depth7 in
Height16 in
Primary Voltage600 VAC/250 VDC
Width9.125 in
Frequency Rating60 Hz
Nema Rating3R, 4, 9(E, F, G)
Number Of Wires4
ARRA CompliantContact Manufacturer
Description - InvoiceENCLOSURE W/SWITCH 2 AUX CNTS
Harmonization Code8536509065
MSDS FlagNo
CSA File NumberLR11714
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936898056
Certifications
- EU RoHS Indicator
- Contact Manufacturer
