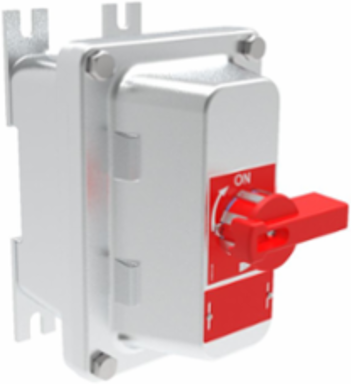

Killark B7NFD1 Aluminum Non-Fused Disconnect Switch Enclosure 30A, 600V, 3 Poles, Wall Mount, 11 lb.
- MPN: B7NFD1
- UPC: 783936009780
- PPN: HBL-B7NFD1
- UNSPSC: 39122205
CAD
$1781.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
B7NFD Series - Aluminum Feed-Thru Compact Non-Fused Disconnect Switch Enclosure - 30A
Features
- Compact size enclosures provide application flexibility with cost savings over industry standard sizes.
- Few cover bolts reduces installation and maintenance time.
- Gasketed flange with O-ring located inside bolt circule to seal out moisture.
- Rotary handle style operating mechanism with lockout provision as standard.
- Removable ductile mounting lugs adjust to irregular mounting surfaces.
- Bodies have top and bottom drilled and taped conduit entrances for power connections, with custom openings available.
- ABB UL98 certified switch supplied for 600VAC, 30, 60 & 100 Amp unit available.
- ABB UL508 certified switch supplied for 600VAC, 16, 32, 40, 63 & 80 Amp unit available.
- Enclosures - Copper-free cast aluminum (less than 4/10 of 1% copper content).
- Cover bolts 316 Stainless Steel
- Silicone O-ring gasket.
- Gray powder polyester painted exterior, electrostatically applied.
- Suitable for indoor/outdoor use, primarily to provide a degree of protection against winblown dust, rain, spashing water, hose directed water, damage from external ice formation and corrosion.
Specifications
Key Specifications
| Enclosure | Bolted |
|---|---|
| NEMA Rating | 3, 4, 4X, 7(B, C, D), 9(E, F, G) |
| Special Features | Suitable for indoor/outdoor use, primarily to provide a degree of protection against winblown dust, rain, spashing water, hose directed water, damage from external ice formation and corrosion. |
| Country of Origin | United States |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Operating Temperature Celcius Max | 40 Degree |
| Weight | 11 lb. |
| Engineering Drawing 1 Display Text | B7NFD1 Engineering Drawing |
| Enclosure Type | Bolted |
| Mounting Type | Wall |
| Number Of Poles | 3 |
| Type | Non-Fused Disconnect |
| Description - Invoice | NONFUSED DISC ENCLOSURE ONLY 30A |
| Harmonization Code | 8538100100 |
| Lead Time | 15 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D25D251 |
| Gross Weight with Packaging | 11.05 |
| Series | B7NFD Series |
| BOX SIZE | (in) |
| Master Pack Description | Each |
| Mounting | Wall |
|---|---|
| Number of Poles | 3 |
| ARRA Compliant | Contact Manufacturer |
| Depth | 6.3125 in |
| Height | 8.06 in |
| Primary Voltage | 600 VAC |
| Width | 5.75 in |
| Application | The PRISM B7 Series of non-fused disconnect switches are used: in locations made hazardous due to the presence of flammable gasses or vapors or ignitable dusts, fibers, and flyings;outdoors or indoors in damp, wet, and dirty locations;in areas where frequent washdowns, heavy rain, or water spray routinely occurs. |
| Frequency Rating | 60 Hz |
| Nema Rating | 3, 4, 4X, 7(B, C, D), 9(E, F, G) |
| Number Of Wires | 4 |
| Class Code | D25 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| CSA File Number | LR11714 |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936009780 |
| NAICS Code | 3353137100 |
