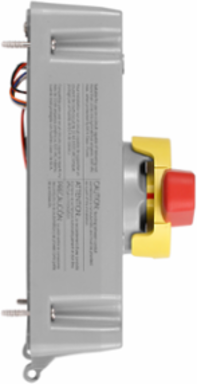

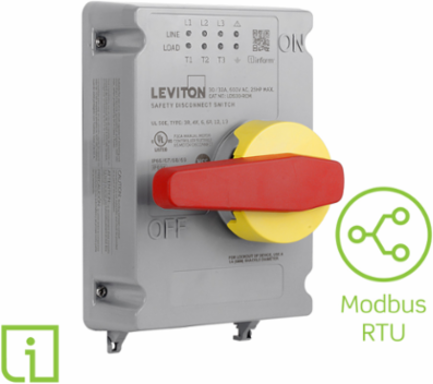

Leviton LDS30-RCM 30/32 Amp Non-Fused Disconnect Switch Cover with Modbus RTU Monitoring, 600 VAC
- MPN: LDS30-RCM
- UPC: 078477999455
- PPN: LEV-LDS30-RCM
CAD
$585.38
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
30/32 Amp 600 VAC Non-Fused Non-Metallic Disconnect Switch Replacement Switch with Local and Remote Monitoring Inform Technology. Remote Monitoring communicated via Modbus RTU easily integrates into existing automation systems. Replacement cover comes with hardware to mount to existing Leviton LDS30 enclosure
Features
- This cover upgrades any standard Leviton LDS30 Disconnect to have Local and Remote Monitoring (via Modbus RTU) Inform Technology.
- How does Inform Technology work? Sensors are embedded into Leviton devices to monitor device health. Data from sensors viewed locally or remotely

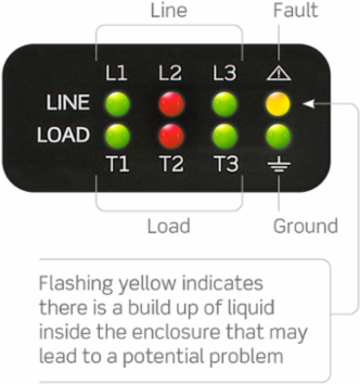

- Local monitoring – Green LEDs on the cover provide a visual indication that the device is operating under normal conditions, flash red if there is a failure, or flash yellow if there is a buildup of liquid inside of the enclosure that may lead to a potential failure

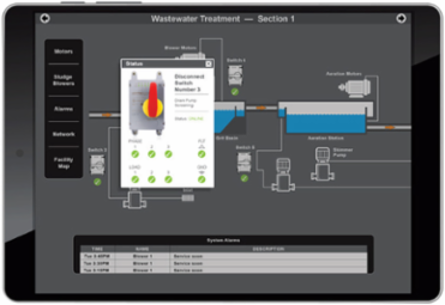

- Remote monitoring via Modbus RTU – includes data like liquid accumulation, enclosure temperature and humidity, line- and load-side voltage values, ground continuity, and more. Access this data 24/7 in your existing automation systems, allowing you to identify any abnormal operating conditions If using a variable frequency drive (VFD), it must be installed between the disconnect switch and the motor. Learn more about our Powerswitch industrial switch portfolio >> Learn more about Inform Technology >>
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Material Specifications
| Enclosure Material | PBT+PC |
|---|---|
| Handle Material | PBT+PC with TPE Overmold |
| Enclosure Screws | Stainless Steel |
|---|
Mechanical Specifications
| Accessory Type | Replacement Cover |
|---|---|
| Feature | LED Indication, Modbus Communication |
| Screw Terminal Torque | 7 in-lb (0.8 N·m) for Switch/ 15 in-lb (1.7 N·m) for Neutral and Ground |
| Device Type | Safety Disconnect Switch |
|---|---|
| Product ID | Ratings are permanently marked on device |
Warranty
| Warranty | 3-Year Limited |
|---|
Environmental Specifications
| Operating Temperature | -40°C to 75°C |
|---|
| UV Resistance | Exposed materials are UV stabilized |
|---|
Electrical Specifications
| Amperage | 30/32 A |
|---|
| Voltage | 600 VAC |
|---|
