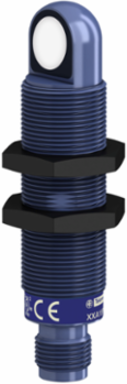

Telemecanique Sensors XXA18P1AM12 Ultrasonic sensor, plastic, cylindrical, sensing range 1 m, output 4-20 mA, M12 connector, synchronization

MPN: XXA18P1AM12
UPC: 785901059738
PPN: TES-XXA18P1AM12

$674.50

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Ultrasonic sensor, plastic, cylindrical, sensing range 1 m, output 4-20 mA, M12 connector, synchronization

Documentation & Downloads

Specifications

Key Specifications

Indivisible sale quantity	1

Commercial status	Commercialised

Complementary

Function available	Software configurable with synchronisation mode
Delay first up	180 ms
Status LED	Output state: 1 LED (yellow), echo state: 1 LED (green)
Setting-up	Configurator software teach mode

Minimum size of detected object	Cylinder diameter 1 mm at 600 mm
Current consumption	30 mA
Maximum switching capacity	250 Ohm with 12 V DC overload and short-circuit protection, 850 Ohm with 24 V DC
Delay recovery	100 ms

Main

Range of product	Telemecanique Ultrasonic sensors XX
Series name	General purpose
Sensor design	Cylindrical M18
Material	Plastic
Wiring technique	5-wire
Rated supply voltage (Us)	12...24 V DC with reverse polarity protection
Enclosure material	PBT

Sensor type	Ultrasonic sensor
Sensor name	XXA
Detection system	Diffuse (with 90° head)
Type of output signal	Analogue
Analogue output function	4...20 mA
Electrical connection	Male connector M12 5 pins
Front material	Epoxy resin rubber

Environment

IP degree of protection	IP65 conforming to IEC 60529, IP67
Standards	CSA C22.2 No 14 IEC 60947-5-2 UL 508
Vibration resistance	+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
