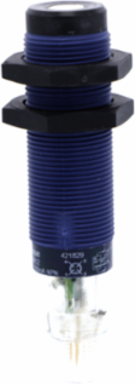

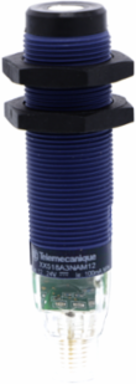

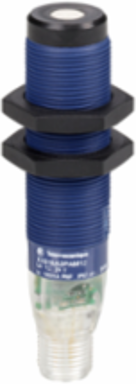

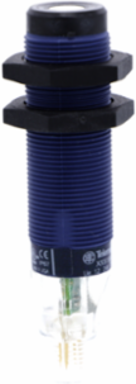

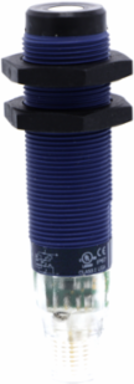

Telemecanique Sensors XX518A3PAM12 Ultrasonic sensor XX, cylindrical M18, sensing range 0.5 m, output digital, NO, M12 connector, diffuse, fixed sensing range, discrete output type PNP
- MPN: XX518A3PAM12
- PPN: TES-XX518A3PAM12
CAD
$207.27
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Ultrasonic sensor XX, cylindrical M18, sensing range 0.5 m, output digital, NO, M12 connector, diffuse, fixed sensing range, discrete output type PNP
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Thread type | M18 x 1 |
|---|---|
| Minimum size of detected object | Cylinder diameter 2.5 mm at 0.15 m |
| Current consumption | 40 mA |
| Switching frequency | < 40 Hz |
| Delay recovery | 10 ms |
| Voltage drop | 1 V |
|---|---|
| Delay first up | 100 ms |
| Status LED | Supply on: 1 LED (green), output state: 1 LED (yellow) |
| Delay response | 10 ms |
Main
| Range of product | Telemecanique Ultrasonic sensors XX |
|---|---|
| Series name | General purpose |
| Sensor design | Cylindrical M18 |
| Material | Plastic |
| Discrete output function | 1 NO |
| Rated supply voltage (Us) | 12...24 V DC with reverse polarity protection |
| Electrical connection | Male connector M12 4 pins |
| Front material | Epoxy |
| Sensor type | Ultrasonic sensor |
|---|---|
| Sensor name | XX5 |
| Detection system | Diffuse |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Discrete output type | PNP |
| Enclosure material | Valox |
Environment
| IP degree of protection | IP67 conforming to IEC 60529 |
|---|---|
| Standards | IEC 60947-5-2 |
| Vibration resistance | +/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz) |
| Marking | CE |
|---|---|
| Product certifications | CCSAus UL |
| Shock resistance | 30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27 |
