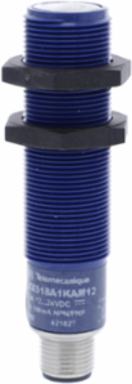

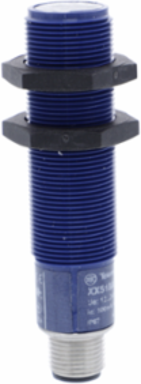

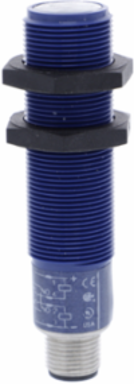

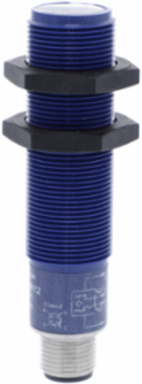

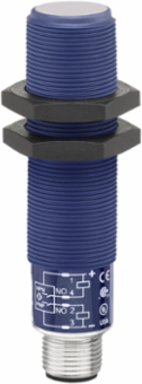

Telemecanique Sensors XX518A1KAM12 Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn 0.15 m, 2 NO, M12 connector
- MPN: XX518A1KAM12
- PPN: TES-XX518A1KAM12
CAD
$1068.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This cylindrical (diffuse system) ultrasonic sensor has a ULTEM case. It has a supply voltage of 12V to 24V DC. This general purpose cylindrical ultrasonic sensor, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. ULTEM® high strength case makes it ideal for high temperature environments. IP67 protection makes this product ready for the harshest environments. It can operate in hot environments up to +50°C. It has a standard M12 connector, compatible with all existing market sensor cabling. It is IEC 60947-5-2 compliant.
Documentation & Downloads
Specifications
Key Specifications
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
|---|---|
| Discrete Output Function | 2 NO |
| Range Of Product | Telemecanique Ultrasonic sensors XX |
| [Sd] Sensing Range | 0.025-0.152 m |
| Wiring Technique | 4-wire |
| Series Name | general purpose |
| Detection System | diffuse |
| Electrical Connection | male connector M12 4 pins |
| [Sn] Nominal Sensing Distance | 0.15-0.15 m fixed |
| Discrete Output Type | PNP and NPN |
|---|---|
| Type Of Output Signal | discrete |
| Sensor Name | XX5 |
| Material | plastic |
| Ip Degree Of Protection | IP67 IEC 60529 |
| Beam Angle | 8 ° |
| Sensor Type | ultrasonic sensor |
| Sensor Design | cylindrical M18 |
Complementary
| Repeat Accuracy | 0.7 % |
|---|---|
| Maximum Switching Current | 100 mA overload and short-circuit protection |
| Switching Frequency | <= 80 Hz |
| Maximum Voltage Drop | 1 V |
| [Sa] Assured Operating Distance | 0.025-0.152 m |
| Marking | CE |
| Net Weight | 0.033 kg |
| Maximum Differential Travel | 0.35 mm |
| Thread Type | M18 x 1 |
| Maximum Delay First Up | 350 ms |
| Enclosure Material | ULTEM |
| Front Material | silicone |
| Height | 18 mm |
|---|---|
| Minimum Size Of Detected Object | cylinder diameter 1.6 mm |
| Maximum Delay Response | 3 ms |
| Transmission Frequency | 500 kHz |
| Threaded Length | 51 mm |
| Blind Zone | 0-19 mm |
| Current Consumption | 60 mA |
| Deviation Angle From 90° Of Object To Be Detected | -10-10 ° |
| Maximum Delay Recovery | 3 ms |
| Supply Voltage Limits | 10-28 V DC |
| Width | 18 mm |
| Depth | 65 mm |
Environment
| Product Certifications | cULus |
|---|---|
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Vibration Resistance | +/-1 mm 10-55 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-80 °C |
| Resistance To Fast Transients | 1 kV level 3 IEC 61000-4-4 |
| Ambient Air Temperature For Operation | 0-50 °C |
|---|---|
| Standards | IEC 60947-5-2 |
| Shock Resistance | 30 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Resistance To Electrostatic Discharge | 8 kV level 4 IEC 61000-4-2 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111234EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Circularity Profile | ENVEOLI111225EN |
