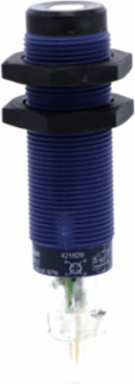

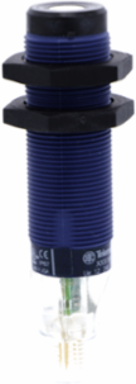

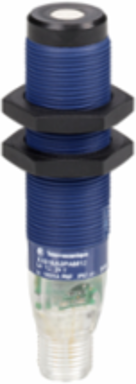

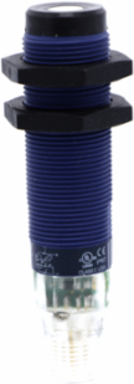

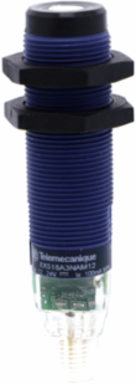

Telemecanique Sensors XX518A3NAM12 Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn 0.5 m, NO, M12 connector
- MPN: XX518A3NAM12
- PPN: TES-XX518A3NAM12
CAD
$207.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This cylindrical (diffuse system) ultrasonic sensor has a VALOX case. It has a supply voltage of 12V to 24V DC. This general purpose cylindrical ultrasonic sensor, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. VALOX® PBT high strength case makes it ideal for high temperature environments. Multi-LED display allows to identify status of the sensor, to facilitate setup and troubleshooting. IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-20°C) and hot environments (+65°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is IEC 60947-5-2 compliant.
Documentation & Downloads
Specifications
Key Specifications
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
|---|---|
| Discrete Output Function | 1 NO |
| Range Of Product | Telemecanique Ultrasonic sensors XX |
| [Sd] Sensing Range | 0.051-0.508 m |
| Wiring Technique | 3-wire |
| Series Name | general purpose |
| Detection System | diffuse |
| Electrical Connection | male connector M12 4 pins |
| [Sn] Nominal Sensing Distance | 0.5-0.5 m adjustable with remote teach push-button |
| Discrete Output Type | NPN |
|---|---|
| Type Of Output Signal | discrete |
| Sensor Name | XX5 |
| Material | plastic |
| Ip Degree Of Protection | IP67 conforming to IEC 60529 |
| Beam Angle | 6 ° |
| Sensor Type | ultrasonic sensor |
| Sensor Design | cylindrical M18 |
Complementary
| Repeat Accuracy | 1.27 % |
|---|---|
| Maximum Switching Current | 100 mA overload and short-circuit protection |
| Switching Frequency | <= 40 Hz |
| Maximum Voltage Drop | 1 V |
| Transmission Frequency | 300 kHz |
| Threaded Length | 43 mm |
| Blind Zone | 0-51 mm |
| Current Consumption | 40 mA |
| Deviation Angle From 90° Of Object To Be Detected | -7-7 ° |
| Maximum Delay Recovery | 10 ms |
| Supply Voltage Limits | 10-28 V DC |
| Width | 18 mm |
| Depth | 79 mm |
| Height | 18 mm |
|---|---|
| Minimum Size Of Detected Object | cylinder diameter 2.5 mm 0.15 m |
| Maximum Delay Response | 10 ms |
| Status Led | supply on 1 LED green) || output state 1 LED yellow) |
| [Sa] Assured Operating Distance | 0.051-0.508 m teach mode) |
| Marking | CE |
| Net Weight | 0.033 kg |
| Maximum Differential Travel | 2.5 mm |
| Thread Type | M18 x 1 |
| Maximum Delay First Up | 100 ms |
| Enclosure Material | valox |
| Front Material | epoxy |
Environment
| Product Certifications | UL || cCSAus |
|---|---|
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Vibration Resistance | +/-1 mm 10-55 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-80 °C |
| Resistance To Fast Transients | 1 kV level 3 IEC 61000-4-4 |
| Ambient Air Temperature For Operation | -20-65 °C |
|---|---|
| Standards | IEC 60947-5-2 |
| Shock Resistance | 30 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Resistance To Electrostatic Discharge | 8 kV level 4 IEC 61000-4-2 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111234EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Circularity Profile | ENVEOLI111225EN |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
