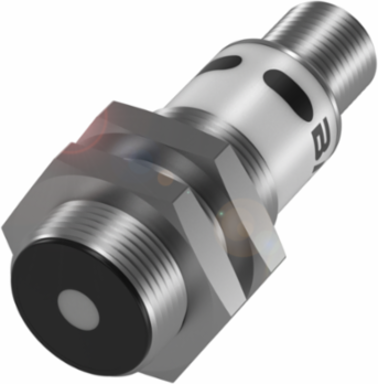

Balluff BUS M18M1-GPXI-02/015-S92G Ultrasonic Sensor 18 mm, Range 25-250 mm, IP67, IO-Link
- MPN: BUS M18M1-GPXI-02/015-S92G
- PPN: BAL-BUS0020
CAD
$568.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Ultrasonic Sensor 18 mm, Range 25-250 mm, IP67, IO-Link
Documentation & Downloads
Specifications
Additional
| Operating voltage | 10...30 VDC |
|---|---|
| Switching frequency | 25 Hz |
| Repeat accuracy | 0.15 % FS |
| Connection | Connector, M12x1-Male, 5-pin |
| Housing material | Brass, nickel-plated; PBT |
| IP rating | IP67 |
| Approval/Conformity | cULus; CE; WEEE; UKCA |
| Range | 25...250 mm |
|---|---|
| Switching output | PNP/NPN NO/NC push-pull |
| Diameter | 18 mm |
| Ambient temperature | -25...70 C |
| Material sensing surface | PU foam, Epoxy resin, Glass |
| Interface | IO-Link 1.0 |
| Country of Origin | Germany |
