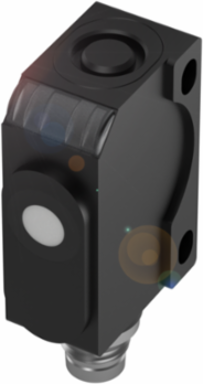

Balluff BUS R06K1-PPX-02/015-S75G Ultrasonic Sensor, 20-250 mm Range, IP67, Block Style
- MPN: BUS R06K1-PPX-02/015-S75G
- PPN: BAL-BUS004C
CAD
$568.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Ultrasonic Sensor, 20-250 mm Range, IP67, Block Style
Documentation & Downloads
Specifications
Additional
| Range | 20...250 mm |
|---|---|
| Switching frequency | 25 Hz |
| Repeat accuracy | 0.15 % FS |
| Connection | Connector, M8x1 Male, 4-pin |
| Housing material | ABS |
| IP rating | IP67 |
| Country of Origin | Germany |
| Operating voltage | 20...30 VDC |
|---|---|
| Switching output | PNP NO/NC |
| Ambient temperature | -25...70 C |
| Material sensing surface | PU foam, Epoxy resin, Glass |
| Mounting style | Block |
| Approval/Conformity | CE, WEEE, UKCA |
