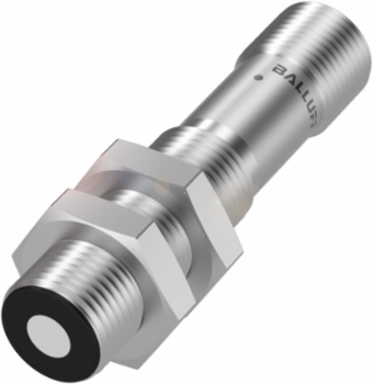

Balluff BUS M12M1-PPX-02/015-S04G Ultrasonic Sensor Ø 12 mm, IP67, 20-250 mm Range
- MPN: BUS M12M1-PPX-02/015-S04G
- PPN: BAL-BUS0065
CAD
$551.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Ultrasonic Sensor Ø 12 mm, IP67, 20-250 mm Range
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10...30 VDC
- Sensing Range
- 20...250 mm
- Switching Output
- PNP NO/NC
- Connection
- Connector, M12x1-Male, 4-pin
- Housing Material
- Nickel-plated brass, nickel-plated; PBT
- IP Rating
- IP67
- Country of Origin
- Germany
Switching Frequency25 Hz
Repeat Accuracy± 0.15 % FS
Sensor Diameter12 mm
Ambient Temperature-25...70 °C
Material Sensing SurfacePU foam/Epoxy resin/Glass
Approval/ConformitycULus; CE; WEEE; UKCA
