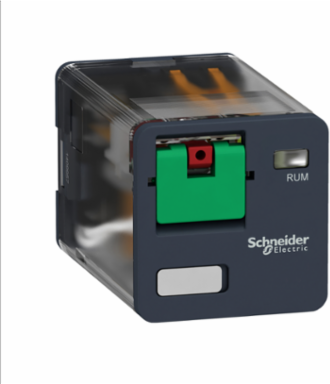

Schneider Electric RUMC21P7 universal plug in relay, Harmony Electromechanical Relays, 10A, 2CO, lockable test but to n, 230V AC
Schneider Electric RUMC21P7 universal plug in relay, Harmony Electromechanical Relays, 10A, 2CO, lockable test but to n, 230V AC
- MPN: RUMC21P7
- PPN: SCH-RUMC21P7
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$27.11/ EA
Description

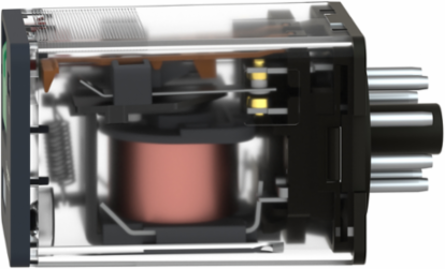

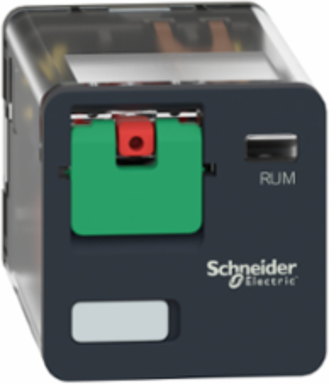

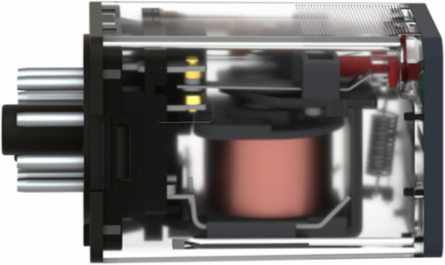

This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 230V AC and has 2 changeover contacts double pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0
Specifications
Complementary
- Maximum Switching Capacity
- 2500 VA/280 W
- Operating Rate
- <= 18000 cycles/hour no-load || <= 1200 cycles/hour under load
- Test Levels
- level A group mounting
- Contacts Material
- AgNi
- Reset Time
- 20 ms at nominal voltage
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV 1.2/50 µs)
- Average Resistance
- 6800 Ohm 20 °C +/- 15 %
- [Ie] Rated Operational Current
- 10 A 277 V AC UL || 10 A 30 V DC UL || 10 A 30 V DC CSA || 5 A 250 V AC NC)IEC || 5 A 28 V DC NC)IEC || 10 A 250 V AC NO)IEC || 10 A 28 V DC NO)IEC || 10 A 277 V AC CSA
- [Ui] Rated Insulation Voltage
- 250 V IEC || 300 V CSA || 300 V UL
- Operating Position
- any position
- Load Current
- 10 A 250 V AC || 10 A 28 V DC
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
Safety Reliability DataB10d = 100000
Protection CategoryRT I
Electrical Durability100000 cycles resistive

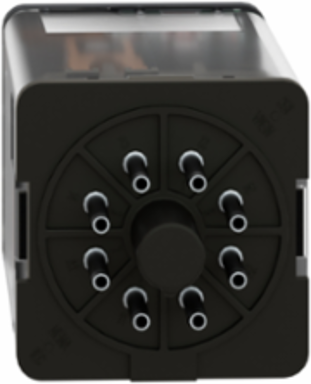

Shape Of Pincylindrical
Net Weight0.086 kg
Maximum Switching Voltage250 V IEC
Device Presentationcomplete product
Rated Operational Voltage Limits184...253 V AC
Mechanical Durability5000000 cycles
Operating Time20 ms at nominal voltage
Drop-Out Voltage Threshold>= 0.15 Uc AC
Average Coil Consumption In Va3-3 60 Hz
Specifications
- Utilisation Coefficient
- 20 %
- Range Of Product
- Harmony Electromechanical Relays
- Status Led
- without
- Series Name
- Universal
- Device Short Name
- RUM
[Uc] Control Circuit Voltage230 V AC 50/60 Hz
Product Or Component Typeplug-in relay
Control Typelockable test button
Contacts Type And Composition2 C/O
[Ithe] Conventional Enclosed Thermal Current10 A -40-55 °C
Environment
- Product Certifications
- CSA || UL || EAC
- Pollution Degree
- 3
- Dielectric Strength
- 1500 V AC between contacts micro disconnection || 2500 V AC between coil and contact reinforced || 2000 V AC between poles basic
- Shock Resistance
- 10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
- Ambient Air Temperature For Storage
- -40-85 °C
StandardsIEC 61810-1 || UL 508 || CSA C22.2 No 14
Ambient Air Temperature For Operation-40-55 °C
Vibration Resistance3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Ip Degree Of ProtectionIP40
Offer Sustainability
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Free Of Svhc
- Yes
- Circularity Profile
- N/A
Environmental DisclosureENVPEP1406038EN
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
