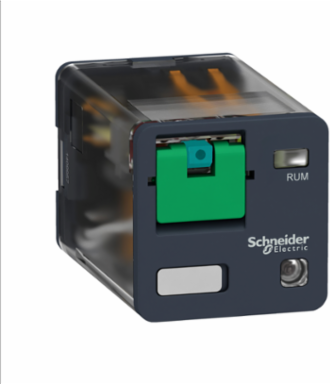

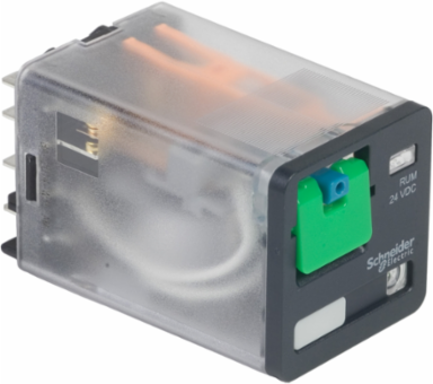

Schneider Electric RUMF32BD Harmony Electromechanical Relay, 10A, 3CO, 24V DC, IP40
- MPN: RUMF32BD
- PPN: SCH-RUMF32BD
- UNSPSC: 39122326
CAD
$29.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

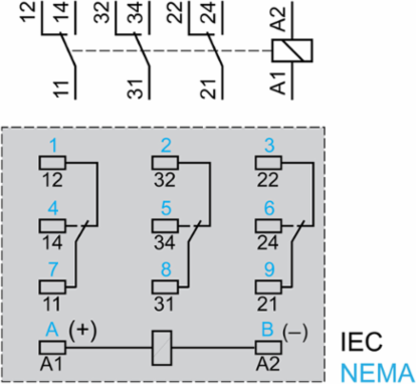

"This Harmony RUM universal plug-in relay uses flat pins, has a control coil voltage of 24V DC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button and “Power On” LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Weight
- 0.086 kg
- [Uc] Control Circuit Voltage
- 24 V DC
- Product Or Component Type
- plug-in relay
- Control Type
- lockable test button
- Contacts Type And Composition
- 3 C/O
- [Ithe] Conventional Enclosed Thermal Current
- 10 A -40-55 °C
Utilisation Coefficient20 %
Range Of ProductHarmony Electromechanical Relays
Status Ledwith
Series NameUniversal
Device Short NameRUM
Complementary
- Maximum Switching Capacity
- 2500 VA/280 W
- Operating Rate
- <= 18000 cycles/hour no-load || <= 1200 cycles/hour under load
- Test Levels
- level A group mounting
- Contacts Material
- AgNi
- Reset Time
- 20 ms at nominal voltage
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV 1.2/50 µs)
- Average Resistance
- 470 Ohm 20 °C +/- 15 %
- [Ie] Rated Operational Current
- 10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 277 V AC (same polarity) conforming to CSA || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10 A at 250 V AC (NO) conforming to IEC || 10 A at 28 V DC (NO) conforming to IEC
- Rated Operational Voltage Limits
- 19.2...26.4 V DC
- Mechanical Durability
- 5000000 cycles
- Operating Time
- 20 ms at nominal voltage
- Drop-Out Voltage Threshold
- >= 0.1 Uc DC
Safety Reliability DataB10d = 100000
Protection CategoryRT I
Electrical Durability100000 cycles resistive
Shape Of Pinflat
Net Weight0.086 kg
Maximum Switching Voltage250 V IEC
Device Presentationcomplete product
Average Coil Consumption1.4 W
[Ui] Rated Insulation Voltage250 V IEC || 300 V CSA || 300 V UL
Operating Positionany position
Load Current10 A 250 V AC || 10 A 28 V DC
Minimum Switching Capacity170 mW 10 mA, 17 V
Offer Sustainability
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Environmental DisclosureENVPEP1406038EN
Reach RegulationFree of Substances of Very High Concern above the threshold
Reach Free Of SvhcYes
Circularity ProfileN/A
Environment
- Product Certifications
- UL || EAC || CSA
- Pollution Degree
- 3
- Dielectric Strength
- 1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
- Shock Resistance
- 10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
- Ambient Air Temperature For Storage
- -40-85 °C
StandardsCSA C22.2 No 14 || UL 508 || IEC 61810-1
Ambient Air Temperature For Operation-40-55 °C
Vibration Resistance3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Ip Degree Of ProtectionIP40
