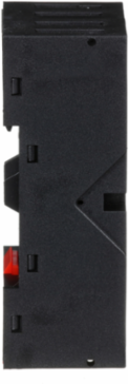

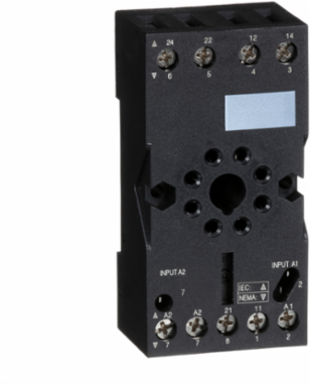

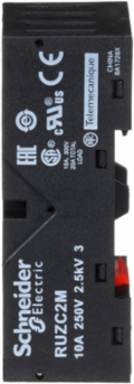

Schneider Electric RUZC2M Harmony Relay Socket, 10A, Mixed Contacts, IP20, for RUMC2 Relays
- MPN: RUZC2M
- PPN: SCH-RUZC2M
CAD
$11.94
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony RUZ plug-in relay socket has a coil control voltage of 250V AC and has mixed contacts with a rating of 10A." "It has large choice of number of contacts for high rated current use." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0
Features
- The Schneider RUZC2M is a high-performance mounting base designed for Harmony RUM series universal plug-in relays (2 C/O or 3 C/O contacts). It acts as the wiring interface, allowing you to connect field wires to a central point while making relay replacement as simple as "plug and play" without touching the permanent terminal connections.

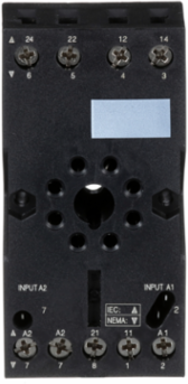

- This socket is specifically designed for relays with cylindrical (round) pins. The RUZC2M features an 11-pin circular configuration, making it the standard base for 3-pole double-throw (3PDT) relays used in complex logic circuits, timing sequences, and high-capacity switching.
- The "M" in the part number indicates a separate contact terminal arrangement. In this design, the input (coil) terminals are located on one side of the socket, while the output (load) terminals are on the other. This physical separation prevents cross-talk between control and power circuits and makes troubleshooting much more intuitive for maintenance staff.

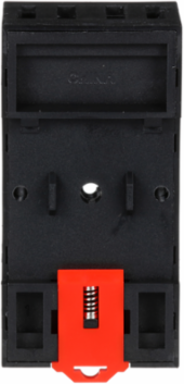

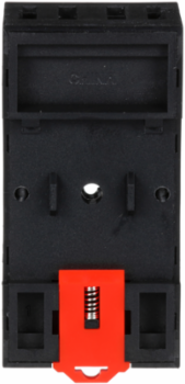

- The RUZC2M offers maximum flexibility for panel builders. It features an integrated clip for snapping onto a standard 35mm DIN rail, but it also includes mounting holes for direct screw attachment to a back panel. This ensures it can be used in both modern automated cabinets and older custom control boxes.
- This socket is built for industrial-scale power. It is rated for a conventional thermal current of 10 Amps and a maximum voltage of 250V AC. Its robust internal busbars are designed to handle the heat and mechanical stress of frequent switching in motor control and industrial automation loops.
Documentation & Downloads
Specifications
Additional
- Current Rating
- 10 A
- Contact Terminal Arrangement
- Mixed, 2 C/O
- Overvoltage Category
- III
- Pollution Degree
- 3
- Ambient Air Temperature For Operation
- -40 to 55 °C

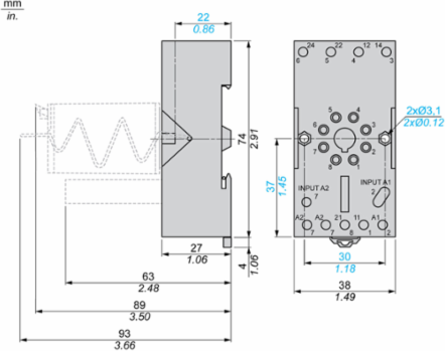

- Width
- 38 mm
- Connections - Terminals
- connector, flexible AWG 22-14, solid AWG 20-14
- Material
- Not specified
- Standards
- IEC 61984
- Marking
- CE
- Device Short Name
- RUZ
- Range Of Product
- Harmony Electromechanical Relays, Harmony Timer Relays
Rated Operational Voltage< 250 V AC
Ingress ProtectionIP20 IEC 60529
Rated Impulse Withstand Voltage4 kV
Tightening Torque< 1 N.m M3.5
Ambient Air Temperature For Storage-40 to 85 °C
Net Weight0.054 kg
Shape Of PinCylindrical
Product CertificationsUL, CSA
Environmental ComplianceEU RoHS Pro-active compliance (out of scope), REACH SVHC Free, China RoHS, Mercury Free, Toxic Heavy Metal Free, WEEE Compliant
Fixing ModeBy screw (panel) or clip-on (35 mm symmetrical DIN rail)
Product Or Component TypeSocket
