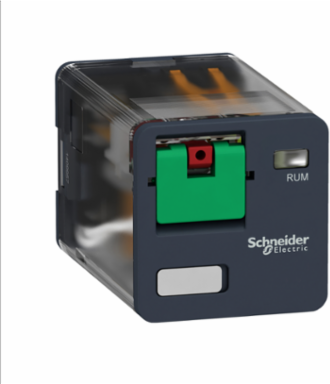

Schneider Electric RUMC31B7 Universal Plug-In Relay 10A 3CO 24V AC with Lockable Test Button
- MPN: RUMC31B7
- PPN: SCH-RUMC31B7
- UNSPSC: 39122325
CAD
$28.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
"This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 24V AC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Weight
- 0.086 kg
- [Uc] Control Circuit Voltage
- 24 V AC 50/60 Hz
- Product Or Component Type
- plug-in relay
- Control Type
- lockable test button
- Contacts Type And Composition
- 3 C/O
- [Ithe] Conventional Enclosed Thermal Current
- 10 A -40-55 °C
Utilisation Coefficient20 %
Range Of ProductHarmony Electromechanical Relays
Status Ledwithout
Series NameUniversal
Device Short NameRUM
Complementary
- Maximum Switching Capacity
- 2500 VA/280 W
- Operating Rate
- <= 18000 cycles/hour no-load || <= 1200 cycles/hour under load
- Test Levels
- level A group mounting
- Contacts Material
- AgNi
- Reset Time
- 20 ms at nominal voltage
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV 1.2/50 µs)
- Average Resistance
- 72 Ohm 20 °C +/- 15 %
- [Ie] Rated Operational Current
- 10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 277 V AC (same polarity) conforming to CSA || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10 A at 250 V AC (NO) conforming to IEC || 10 A at 28 V DC (NO) conforming to IEC
- [Ui] Rated Insulation Voltage
- 250 V IEC || 300 V CSA || 300 V UL
- Operating Position
- any position
- Load Current
- 10 A 250 V AC || 10 A 28 V DC
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
Safety Reliability DataB10d = 100000
Protection CategoryRT I
Electrical Durability100000 cycles resistive
Shape Of Pincylindrical
Net Weight0.086 kg
Maximum Switching Voltage250 V IEC
Device Presentationcomplete product
Rated Operational Voltage Limits19.2...26.4 V AC
Mechanical Durability5000000 cycles
Operating Time20 ms at nominal voltage
Drop-Out Voltage Threshold>= 0.15 Uc AC
Average Coil Consumption In Va3-3 60 Hz
Offer Sustainability
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Environmental DisclosureENVPEP1406038EN
Reach RegulationFree of Substances of Very High Concern above the threshold
Reach Free Of SvhcYes
Circularity ProfileN/A
Environment
- Product Certifications
- CSA || EAC || UL
- Pollution Degree
- 2
- Dielectric Strength
- 1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
- Shock Resistance
- 10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
- Ambient Air Temperature For Storage
- -40-85 °C
StandardsCSA C22.2 No 14 || UL 508 || IEC 61810-1
Ambient Air Temperature For Operation-40-55 °C
Vibration Resistance3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Ip Degree Of ProtectionIP40
