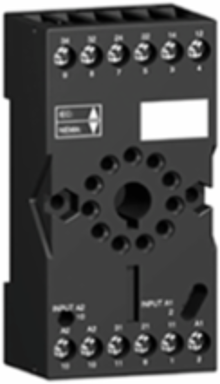

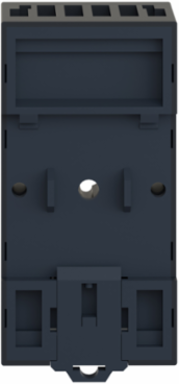

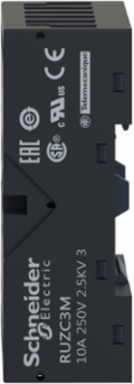

Schneider Electric RUZC3M Harmony Electromechanical Relay Socket, 10A, IP20, Mixed Contacts
- MPN: RUZC3M
- PPN: SCH-RUZC3M
CAD
$13.72
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
"This Harmony RUZ plug-in relay socket has a coil control voltage of 250V AC and has mixed contacts with a rating of 10A." "It has large choice of number of contacts for high rated current use." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0
Features
- The Schneider RUZC3M is a high-quality Zelio plug-in relay socket. It serves as the physical and electrical interface between your control wiring and a plug-in relay. It allows for easy "hot-swapping" of relays without disturbing the field wiring, a feature highly valued in Canadian industrial maintenance.
- This socket is specifically designed for 3 C/O (3PDT) cylindrical (round pin) relays. It is the perfect match for the Schneider RUMC3 series of universal relays. The "3M" in the part number denotes its 11-pin circular configuration, which is an industry standard for three-pole switching logic.

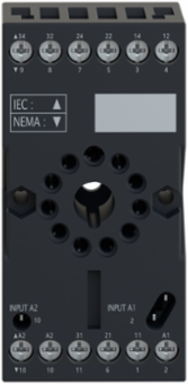

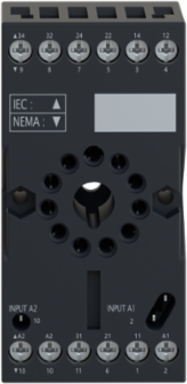

- The RUZC3M features a "Mixed" contact terminal arrangement. This means the coil terminals are located on one side (typically the bottom) and the contact terminals are distributed across the top and bottom. This layout is often preferred for simplifying wire routing when separating control signals from power loads in a crowded cabinet.

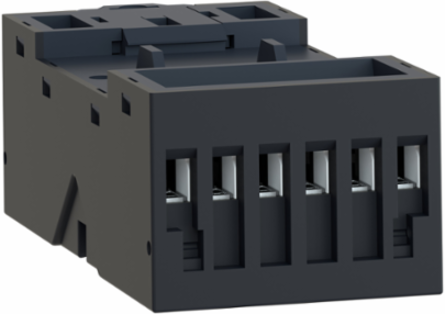

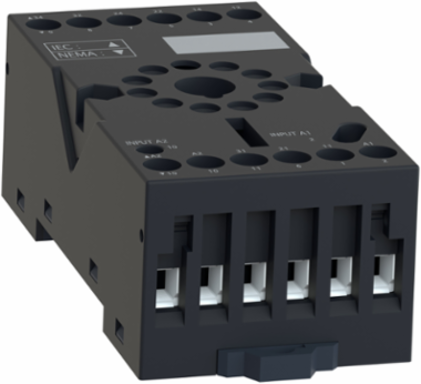

- Equipped with heavy-duty screw clamp terminals, this socket ensures a secure, gas-tight connection for your wires. These terminals are designed to resist loosening in high-vibration Canadian industrial environments, such as those found in mining, milling, or food processing facilities.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, France, Singapore, United States |
|---|
Complementary Attributes
| Line Rated Current | 10 A |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Range Of Product | Harmony Electromechanical Relays, Harmony Timer Relays |
| Certificate Agency | CSA, UL |
| Carbon Footprint Of The Distribution Phase [A4] | 0.007225308, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0004294353, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | N |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contact Terminal Arrangement | mixed |
| Device Short Name | RUZ |
| Group Of Product | RUM_3_C/O_CON_MIX_CYL |
| Overvoltage Category | III |
| Product Or Component Type | socket |
| Sale Per Indivisible Quantity | 10 |
| Software Version | EIME v5.8.1 |
| Total Lifecycle Carbon Footprint | 0.6 kg CO2 eq. |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | RPZF1 is a socket that can be mounted with RPM1 plug in relays and protect persons during 20 years with the following dimensions 80mm x 31mm x 21mm. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: China |
| Energy Model - Use [B6] | Electricity Mix; AC; consumption mix, at consumer; <lt/> 1kV; EU-27 |

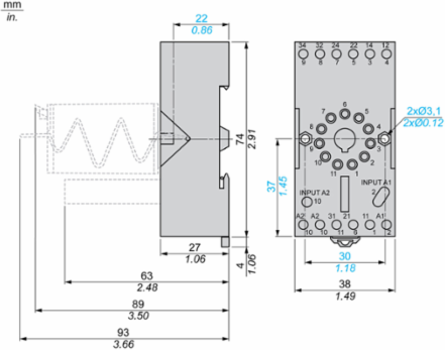

| Width Nominal | 38 mm |
| [Ue] Rated Operational Voltage | < 250 V< 250 V |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536698000 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Tightening Torque | < 1 N.m M3.5, < 1 N.m M3.5< 1 N.m M3.5, < 1 N.m M3.5 |
| Connections - Terminals | screw connectors, connector, 1 x 0.25...1 x 2.5 mm² 22 AWG...14 AWG) flexible with cable endconnector, 2 x 0.25...2 x 1 mm² 22 AWG...17 AWG) flexible with cable endconnector, 1 x 0.5...1 x 2.5 mm² 20 AWG...14 AWG) solid without cable endconnector, 2 x 0.5...2 x 1.5 mm² 20 AWG...16 AWG) solid without cable end |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.0053668097 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.5 kg CO2 eq., 0.5383042533 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Compatibility Code | RUZ |
| Contacts Type And Composition | 3 C/O |
| Fixing Mode | by screw (panel)clip-on (35 mm symmetrical DIN rail) |
| Marking | CE |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Shape Of Pin | cylindrical |
| Sustainable Packaging | Yes |
| Pep Code | ENVPEP2506025EN |
| Pep Verification Date | 2020-11-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; AC; consumption mix, at consumer; <lt/> 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; AC; consumption mix, at consumer; <lt/> 1kV; EU-27 |
| [Ith] Conventional Free Air Thermal Current | 10 A |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV |
| Package Weight(Lbs) | 57.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-55 °C, -40-55 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.5513258063 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | plug-in relay RUM 3 C/Oplug-in relay RE48A 2 C/O |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2020-11-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2506025EN |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2506025EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Range Of Product | Harmony Electromechanical Relays, Harmony Timer Relays |
|---|
| Product Or Component Type | socket |
|---|
ETIM
| ETIM 8 | EC001456 |
|---|
| ETIM 9 | EC001456 |
|---|
Output Attributes
| Output Type | relay |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
