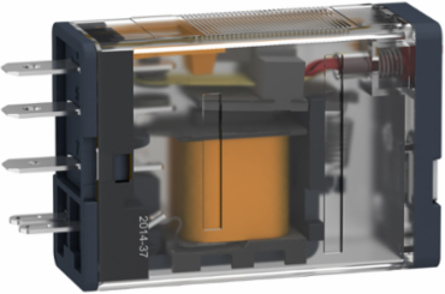

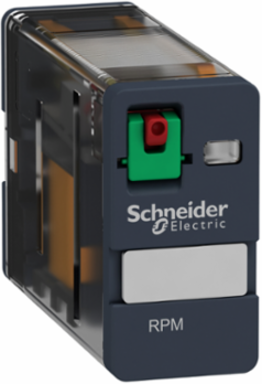

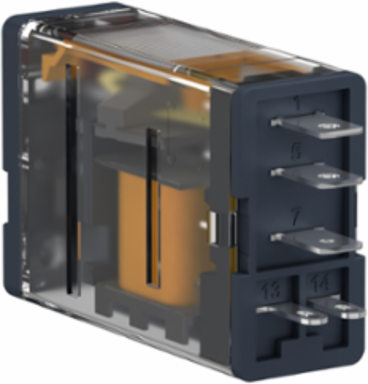

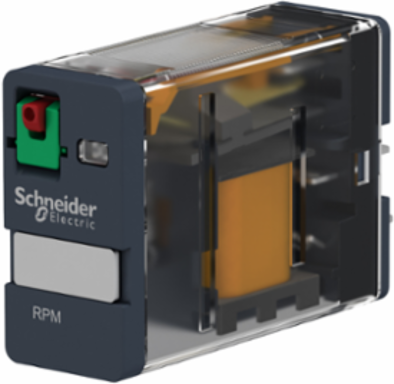

Schneider Electric RPM11F7 Harmony Electromechanical Relay, 15A 120V AC, Lockable Test Button
- MPN: RPM11F7
- PPN: SCH-RPM11F7
CAD
$11.38
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony RPM power plug-in relay has a coil control voltage of 120V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type enables easy installation and maintenance. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0
Features
- Equipped with high-capacity Silver Nickel (AgNi) contacts in a 1 C/O (SPDT) configuration, this power relay safely switches continuous loads up to 15 Amps at 250V AC or 28V DC. For automation technicians building hard-wired logic interfaces, this premium contact material delivers a high thermal rating that prevents tip pitting and contact welding under demanding inductive motor or solenoid control cycles.
- Engineered with a precision-wound 120V AC coil (50/60 Hz), this relay functions smoothly between operational limits of 96V and 132V AC. This wide activation window guarantees stable contact engagement even during localized grid drops or voltage sags across remote automation panels, drawing a highly efficient average coil consumption of just 1.6 VA
- This model features a built-in, lockable mechanical test button that allows maintenance personnel to manually actuate the contacts for instantaneous loop testing. This physical override capability simplifies commissioning, allowing you to force-check circuit continuity, verify downstream PLC inputs, or debug sequential logic steps without needing to energize the control coil.
- Built for demanding industrial duty cycles, this electromechanical relay achieves a mechanical durability rating of 10,000,000 cycles and an electrical durability of 100,000 resistive cycles. This massive operating window allows control systems to cycle up to 1,200 times per hour under full load, giving you long-term reliability in high-speed sorting, packaging, or HVAC distribution lines.
- Carrying official UL 508 listing and CSA C22.2 No 14 certification, this industrial relay complies fully with rigorous North American and European safety standards. The IP40-rated housing provides dependable baseline protection against dust entry, ensuring rapid code compliance and seamless approval from provincial or municipal electrical safety inspectors.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, Singapore, United States
Complementary Attributes
- Maximum Switching Capacity
- 3750 VA, 420 W
- Line Rated Current
- 15 A
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
Control Circuit TypeAC
Maximum Switching Voltage250 V IEC
Rated Operational Voltage Limits96...132 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- lockable test button, lockable test button
- Operating Rate
- <= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
- Contacts Composition
- 1 C/O
- [Ie] Rated Operational Current
- 15 A 28 V DC) NO IEC7.5 A 28 V DC) NC IEC, 15 A 277 V AC) UL15 A 28 V DC) UL, 15 A 250 V AC) NO IEC7.5 A 250 V AC) NC IEC
- [Ui] Rated Insulation Voltage
- 250 V IEC300 V CSA, 300 V UL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0032255698, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0000813564
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 16 kg CO2 eq., 15.8199210606
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Resistance
- 4430 Ohm at 20 °C +/- 15 %
- Contacts Material
- AgNi
- Electrical Durability
- 100000 cycles resistive
- Mechanical Durability
- 10000000 cycles
- Operating Position
- any position
- Product Availability
- Stock - Normally stocked in distribution facility
- Protection Category
- RT I
- Relay Type
- power relay
- Returnability
- Yes
- Series Name
- RPM series
- Shock Resistance
- 15 gnin operation30 gnnot operating
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 16 kg CO2 eq.
- Vibration Resistance
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Pep Code
- ENVPEP2506026EN
- Pep Verification Date
- 2018-05-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; <lt/> 1kV; EU-27
- [Ithe] Conventional Enclosed Thermal Current
- 15 A -40-55 °C
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 40.1774
- Customs Code
- 8536490075
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Dielectric Strength1500 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with reinforced
Status Ledwithout, without
Certificate AgencyUL, EAC, CSA
[Uc] Control Circuit VoltageAC 50/60 Hz, 120 V
Drop-out Voltage Threshold>= 0.15 Uc AC, >= 0.15 Uc AC>= 0.15 Uc AC, >= 0.15 Uc AC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.0033524365, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.2 kg CO2 eq., 0.2392192822
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Coil Consumption In Va1.6 60 Hz
Compatibility CodeRPM
Contacts Type And Composition1 C/O
Load Current15 A 250 V AC15 A 28 V DC
Mounting Supportplug-in
Operating Time20 ms at nominal voltage
Product Or Component Typeplug-in relay
Range Of ProductHarmony Electromechanical Relays
Reset Time20 ms at nominal voltage
Safety Reliability DataB10d = 100000
Shape Of Pinflat (faston type)
Software VersionEIME 5.7.0.2
Test Levelslevel A group mounting
Utilisation Coefficient20 %
Control Circuit Voltage120 V
Database Version2018-03
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards.
Functional-unit Unitunité (unit)
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %68
[Uimp] Rated Impulse Withstand Voltage4 kV 1.2/50 µs
Package Weight(Lbs)24.000 g
Warranty (In Months)18
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]40.1774
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Ambient Air Temperature For Operation
- -40-55 °C-40-55 °C
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2506026EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint16.0657997055
Environmental DisclosureENVPEP2506026EN
Ip Degree Of ProtectionIP40 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2018-05-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- plug-in relay
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
