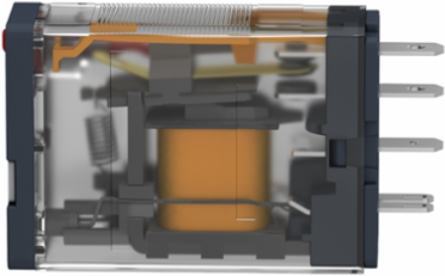

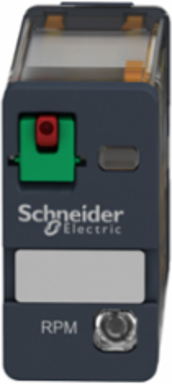

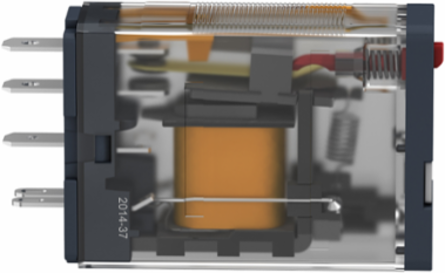

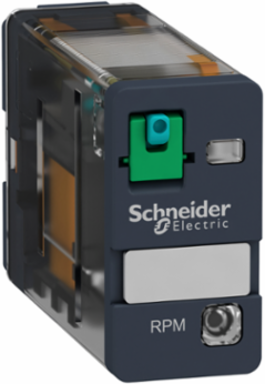

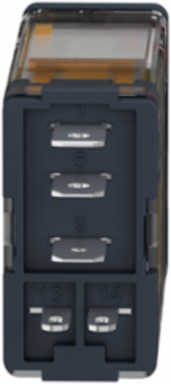

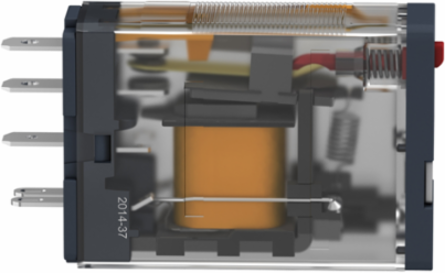

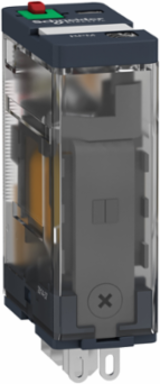

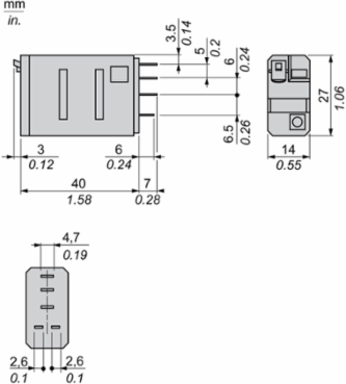

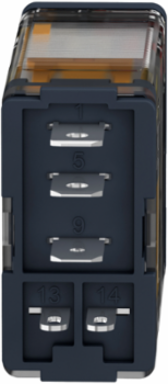

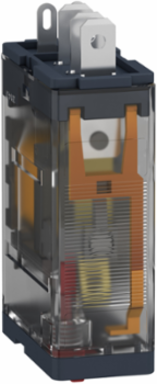

Schneider Electric RPM12BD Plug-in Relay, 15A SPDT, 24V DC, IP40, with LED Indicator & Lockable Test Button
- MPN: RPM12BD
- PPN: SCH-RPM12BD
CAD
$12.77
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony RPM power plug-in relay has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0
Features
- Featuring a heavy-duty 15-Amp Changeover (1PDT) contact configuration, this power relay is specifically engineered to bridge the gap between low-power control signals and demanding electrical loads. It easily manages high-startup current spikes from fractional horsepower motors, pumps, heating elements, and industrial lighting arrays, eliminating the need for a bulkier contactor in space-constrained enclosures.
- Outfitted with a precision-wound 24V DC coil consuming only 0.85 Watts, this relay connects seamlessly to standard automation controllers, PLCs, and I/O cards. The low power draw reduces thermal loading inside tightly packed control cabinets, while the integrated coil protection safeguards sensitive solid-state upstream electronics from damaging voltage spikes during de-energization.
- Designed with an ergonomic, front-mounted mechanical test button, this unit allows technicians to manually actuate the contacts with a single press. Additionally, an integrated pull-out locking shutter lets you hold the contacts closed indefinitely for fast, hands-free loop testing and diagnostic tracing during commissioning or scheduled maintenance windows.
- This relay features both a high-visibility LED indicator and a separate mechanical flag window. The LED provides immediate electrical confirmation that the coil is energized, even in poorly lit factory environments, while the mechanical flag gives a foolproof visual reading of the physical contact position when the control panel is completely powered down for lockout-tagout servicing.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Singapore, United States
Complementary Attributes
- Maximum Switching Capacity
- 3750 VA, 420 W
- Line Rated Current
- 15 A
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
Control Circuit TypeDC
Maximum Switching Voltage250 V IEC
Rated Operational Voltage Limits19.2...26.4 V DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- lockable test button, lockable test button
- Operating Rate
- <= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
- Contacts Composition
- 1 C/O
- [Ie] Rated Operational Current
- 15 A 28 V DC) NO IEC7.5 A 28 V DC) NC IEC, 15 A 277 V AC) UL15 A 28 V DC) UL, 15 A 250 V AC) NO IEC7.5 A 250 V AC) NC IEC
- [Ui] Rated Insulation Voltage
- 250 V IEC300 V CSA, 300 V UL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.01361487121825169, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.00005953436031140578
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 14 kg CO2 eq., 14.119611160081014
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Resistance
- 450 Ohm at 20 °C +/- 10 %
- Contacts Material
- AgNi
- Electrical Durability
- 100000 cycles resistive
- Mechanical Durability
- 10000000 cycles
- Operating Position
- any position
- Product Availability
- Stock - Normally stocked in distribution facility
- Protection Category
- RT I
- Relay Type
- power relay
- Returnability
- Yes
- Series Name
- RPM series
- Shock Resistance
- 15 gnin operation30 gnnot operating
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 14 kg CO2 eq.
- Vibration Resistance
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Pep Code
- ENVPEP2506026EN
- Pep Verification Date
- 2025-06-30
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- [Ithe] Conventional Enclosed Thermal Current
- 15 A -40-55 °C
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490055
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Dielectric Strength1500 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with reinforced
Status Ledwith, with
Certificate AgencyCSA, EAC, UL
[Uc] Control Circuit VoltageDC, 24 V
Drop-out Voltage Threshold>= 0.1 Uc DC, >= 0.1 Uc DC>= 0.1 Uc DC, >= 0.1 Uc DC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.04379178774250361, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.2616638793770973
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Coil Consumption1.1 W
Compatibility CodeRPM
Contacts Type And Composition1 C/O
Load Current15 A 250 V AC15 A 28 V DC
Mounting Supportplug-in
Operating Time20 ms at nominal voltage
Product Or Component Typeplug-in relay
Range Of ProductHarmony Electromechanical Relays
Reset Time20 ms at nominal voltage
Safety Reliability DataB10d = 100000
Shape Of Pinflat (faston type)
Software Versionv6.3.0.1-4
Test Levelslevel A group mounting
Utilisation Coefficient20 %
Control Circuit Voltage24 V
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal majorly in industrial applications. Product has lifetime of 10 years with a 30% use rate and product is adhering to international standards IEC 61810-1.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; China, CN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential In %67
[Uimp] Rated Impulse Withstand Voltage4 kV 1.2/50 µs
Package Weight(Lbs)24.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Ambient Air Temperature For Operation
- -40-55 °C-40-55 °C
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2506026EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint14.438741232779178
Environmental DisclosureENVPEP2506026EN
Ip Degree Of ProtectionIP40 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-06-30
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- plug-in relay
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
