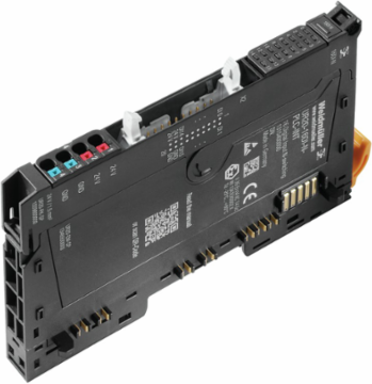

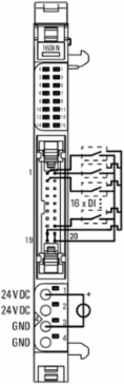

Weidmuller 1315400000 UR20-16DI-N-PLC-INT
- MPN: 1315400000
- PPN: WDM-1315400000
CAD
$219.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Remote I/O module, IP20, Digital signals, Input, PLC
Documentation & Downloads
Specifications
General Data
- Air humidity (operation)
- 10% to 95%, non-condensing as per DIN EN 61131-2
- Air humidity (transport)
- 10% to 95%, non-condensing as per DIN EN 61131-2
- Air pressure (storage)
- 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
- Pollution severity
- 2
- Surge voltage category
- II
- UL 94 flammability rating
- V-0
Air humidity (storage)10% to 95%, non-condensing as per DIN EN 61131-2
Air pressure (operation)≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2
Air pressure (transport)1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Shock15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27
Test voltage500 V
Vibration resistance5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6
Approvals
- Approvals
- ABS, BURVER, CULUS, CULUSEX, DEMKOATEX, DNV GL, IECEXULD, LLOYDSREG, RINA
- UL File Number Search
- E141197
ROHSConform

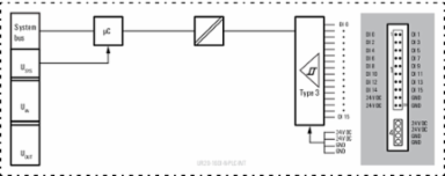

Digital Inputs
- Individual channel diagnosis
- No
- Input voltage, high
- < - 11 V referred to +24 V of the input power supply UIN
- Module diagnosis
- Yes
- Reverse polarity protection
- Yes
- Sensor supply
- external
Input filter3 ms
Input voltage, low> - 5 V referred to +24 V of the input power supply UIN
Number of digital inputs16
Sensor connectionPLC-Interface
TypeTypes 1 and 3, EN 61131-2
Dimensions And Weights
- Width
- 11.5 mm
- Height
- 120 mm
- Depth
- 76 mm
- Mounting dimension - height
- 128 mm
Width (inches)0.453 inch
Height (inches)4.724 inch
Depth (inches)2.992 inch
Net weight82 g
Connection Data
- I/O plug-in connector
- 20-pin ribbon cable connection
- Wire connection cross section, finely stranded, max.
- 1.5 mm²
- Wire cross-section, finely stranded, max. (AWG)
- AWG 16
- Wire cross-section, solid, max.
- 1.5 mm²
- Wire cross-section, solid, min.
- 0.14 mm²
Type of connectionPUSH IN
Wire connection cross-section, finely stranded, min.0.14 mm²
Wire cross-section, finely stranded, min. (AWG)AWG 26
Wire cross-section, solid, max. (AWG)AWG 16
Wire cross-section, solid, min. (AWG)AWG 26
Classifications
- ETIM 6.0
- EC001597
- eClass 9.0
- 27-24-26-02
- eClass 10.0
- 27-24-26-02
ETIM 7.0EC001597
eClass 9.127-24-26-02
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
System Data
- Diagnostic data
- 1 Byte
- Galvanic isolation
- 500 V DC between the current paths
- Module type
- Special module
Field bus protocolCANopen, DeviceNet, EtherCAT, EtherNet/IP, Modbus/TCP, PROFINET IRT, PROFIBUS DP-V1, POWERLINK
Interfaceu-remote system bus
Transmission speed of system bus, max.48 Mbit
Temperatures
- Operating temperature, max.
- 60 °C
- Storage temperature, max.
- 85 °C
- Operating temperature
- -20 °C ... +60 °C
Operating temperature, min.-20 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C ... +85 °C
Power Supply
- Current consumption from I
- < 15 mA
- Voltage supply
- 24 V DC +20 %/ -15 %, via the system bus
Reverse polarity protectionYes
