Weidmuller 1315610000 UR20-2PWM-PN-2A
- MPN: 1315610000
- PPN: WDM-1315610000
CAD
$528.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

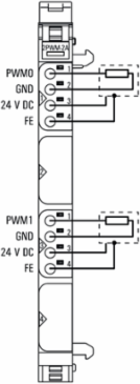

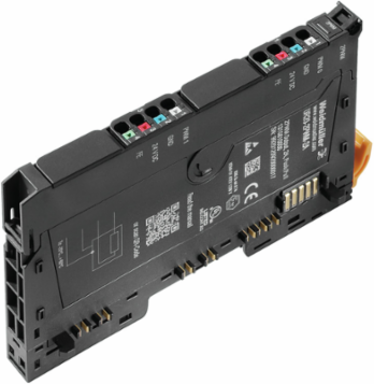

Remote I/O module, IP20, Digital signals, Special module, PWM, 2 A per channel
Documentation & Downloads
Specifications
General Data
| Air humidity (operation) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
|---|---|
| Air humidity (transport) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| Air pressure (storage) | 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2 |
| Pollution severity | 2 |
| Surge voltage category | II |
| UL 94 flammability rating | V-0 |
| Air humidity (storage) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
|---|---|
| Air pressure (operation) | ≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2 |
| Air pressure (transport) | 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2 |
| Shock | 15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27 |
| Test voltage | 500 V |
| Vibration resistance | 5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6 |
Approvals
| Approvals | CE, CULUS, CULUSEX, DEMKOATEX, EAC, IECEXULD, KOREANCERT |
|---|---|
| UL File Number Search | E141197 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 11.5 mm |
|---|---|
| Height | 120 mm |
| Depth | 76 mm |
| Mounting dimension - height | 128 mm |
| Width (inches) | 0.453 inch |
|---|---|
| Height (inches) | 4.724 inch |
| Depth (inches) | 2.992 inch |
| Net weight | 83 g |
Digital Outputs
| Actuator connection | 2-wire, 3-wire, 3-wire + FE |
|---|---|
| Feedback-free | Yes |
| Max. response time, high | 100 ns |
| Module diagnosis | Yes |
| Output current per channel, max. | 2,000 mA |
| Short-circuit-proof | Yes |
| Switching frequency, lamp load | Static, 6 Hz ... 40 kHz |
| Type | DO PWM push / pull |
| Data width | 2 Byte Input, 12 Byte Output |
|---|---|
| Individual channel diagnosis | No |
| Max. response time, low | 100 ns |
| Number of digital outputs | 2 |
| Output current per module, max. | 4,000 mA |
| Switching frequency, inductive load | Static, 6 Hz ... 40 kHz |
| Switching frequency, resistive load | Static, 6 Hz ... 40 kHz |
Connection Data
| Type of connection | PUSH IN |
|---|---|
| Wire connection cross-section, finely stranded, min. | 0.14 mm² |
| Wire cross-section, finely stranded, min. (AWG) | AWG 26 |
| Wire cross-section, solid, max. (AWG) | AWG 16 |
| Wire cross-section, solid, min. (AWG) | AWG 26 |
| Wire connection cross section, finely stranded, max. | 1.5 mm² |
|---|---|
| Wire cross-section, finely stranded, max. (AWG) | AWG 16 |
| Wire cross-section, solid, max. | 1.5 mm² |
| Wire cross-section, solid, min. | 0.14 mm² |
Classifications
| ETIM 6.0 | EC001597 |
|---|---|
| eClass 9.0 | 27-24-26-02 |
| eClass 10.0 | 27-24-26-02 |
| ETIM 7.0 | EC001597 |
|---|---|
| eClass 9.1 | 27-24-26-02 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
System Data
| Field bus protocol | CANopen, DeviceNet, EtherCAT, EtherNet/IP, Modbus/TCP, PROFINET IRT, PROFIBUS DP-V1, POWERLINK |
|---|---|
| Interface | u-remote system bus |
| Transmission speed backplane bus, max. | 48 Mbit |
| Galvanic isolation | 500 V DC between the current paths |
|---|---|
| Module type | Functional module |
| Transmission speed of system bus, max. | 48 Mbit |
Temperatures
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -20 °C ... +60 °C |
| Operating temperature, min. | -20 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C ... +85 °C |
Power Supply
| Current consumption from I | 40 mA |
|---|
| Voltage supply | 24 V DC +20 %/ -15 %, via the system bus |
|---|
