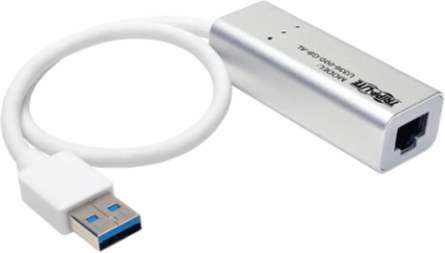

Tripp Lite U336-000-GB-AL USB 3.0 Gigabit Ethernet Adapter, 1.2 ft, Aluminum, Plug and Play
- MPN: U336-000-GB-AL
- UPC: 037332190529
- PPN: TRP-U336-000-GB-AL
CAD
$58.52
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

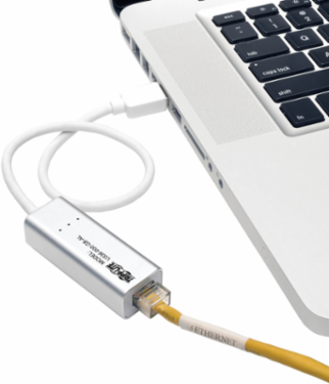

Connect the USB port on your computer, laptop or Ultrabook to a wired Ethernet network. Access true Gigabit network speeds without the expense and hassle of adding an internal Ethernet card to your device.
Features
- Ensures full 10/100/1000 Mbps network speeds
- Compatible with Windows, Mac and Linux operating systems
- Plug and play—no drivers or external power supply needed
- Fits easily into pocket, backpack, briefcase or laptop bag
- LEDs indicate power, network connection and data transfer
- 3-year limited warranty
Documentation & Downloads
Specifications
Features & Specifications
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
|---|---|
| Auto MDIX Support | Yes |
| Suspend Mode Support | Yes |
| Technology | Cat5/5e; Cat6; USB 3.0 (SuperSpeed); USB |
| Driver Required | No |
|---|---|
| Full Duplex Support | Yes |
| Remote Wakeup Support | Yes |
Certifications
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|
Connections
| Ports | 1 |
|---|---|

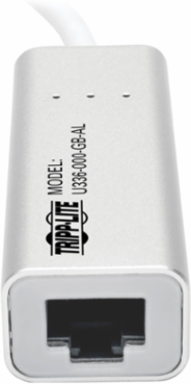

| Side B - Connector 1 | RJ45 (FEMALE) |

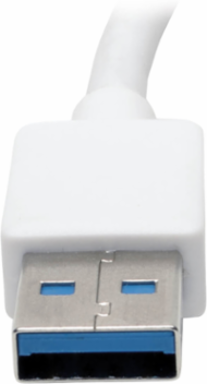

| Side A - Connector 1 | USB 3.0 A (MALE) |
|---|---|
| Connector Plating | Nickel |
Physical
| Cable Jacket Rating | VW-1 |
|---|---|
| Material of Construction | Aluminum |
| Shipping Weight (lbs.) | 0.17 |
| Unit Packaging Type | Box |
| Color | Silver |
|---|---|
| Shipping Dimensions (hwd / in.) | 1.22 x 4.00 x 4.70 |
| Unit Dimensions (hwd / in.) | 0.67 x 2.4 x 0.9 |
| Unit Weight (lbs.) | 0.09 |
User Interface, Alerts & Controls
| LED Indicators | Green (Link); Yellow (Activity) |
|---|
Input
| Bus Powered | Yes |
|---|
| Product Length (ft.) | 1.2 |
|---|
Communications
| Network Speed | 1Gbps |
|---|
| IEEE Standards Supported | 802.3; 802.3u; 802.3ab |
|---|
Environmental
| Operating Temperature Range | -4 to 158 F (-20 to 70 C) |
|---|---|
| Relative Humidity | 20% to 80% RH, Non-Condensing |
| Power Consumption (Watts) | 0.4 |
| Storage Temperature Range | -4 to 185 F (-20 to 85 C) |
|---|---|
| BTUs | 1.4 BTU/Hr |
Overview
| UPC Code | 037332190529 |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
