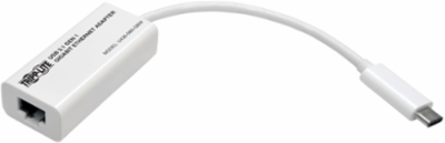

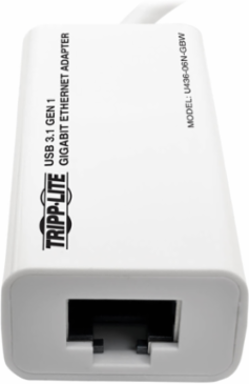

Tripp Lite U436-06N-GBW USB 3.1 Gen 1 Type-C to Gigabit Ethernet Adapter, 1Gbps Speed, White
- MPN: U436-06N-GBW
- UPC: 037332189240
- PPN: TRP-U436-06N-GBW
CAD
$49.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

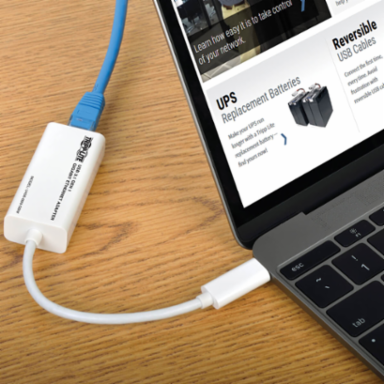

Connect the USB-C or Thunderbolt™ 3 port on your computer, laptop or smartphone to a wired Ethernet network. Access true Gigabit network speed without the expense and hassle of adding an internal Ethernet card to your device.
Features
- Connects a USB Type-C or Thunderbolt™ 3 device to a wired Ethernet network
- Supports full 10/100/1000 Mbps network speeds

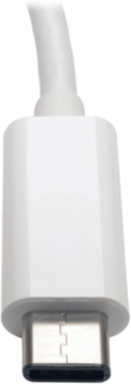

- Features reversible USB Type-C male plug on one end
- Compatible with Windows, Mac and Chromium operating systems
- Plug and play—no drivers or external power supply needed
- 3-year limited warranty
Documentation & Downloads
Specifications
Features & Specifications
- USB Specification
- USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
- UASP Support
- No
- Full Duplex Support
- Yes
- Remote Wakeup Support
- Yes
Driver RequiredNo
Auto MDIX SupportYes
Suspend Mode SupportYes
TechnologyCat5/5e; Cat6; USB; USB 3.0 (SuperSpeed); USB 3.1 (Gen 1)
Battery
- Battery Charging (1.2 Port)
- No
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 1
- Side B - Connector 1
- RJ45 (FEMALE)
Side A - Connector 1USB C (MALE)
Connector PlatingNickel
Physical
- Cable Jacket Rating
- VW-1
- Material of Construction
- ABS, PVC
- Shipping Weight (lbs.)
- 0.08
- Unit Packaging Type
- Box
ColorWhite
Shipping Dimensions (hwd / in.)4.70 x 4.00 x 0.80
Unit Dimensions (hwd / in.)0.63 x 1.1 x 2.36
Unit Weight (lbs.)0.06
Input
- Bus Powered
- Yes
- Product Length (cm.)
- 15.24
- Product Length (m.)
- 0.15
Product Length (in.)6
Product Length (ft.)0.5
Communications
- Network Speed
- 1Gbps
IEEE Standards Supported802.3; 802.3az; 802.3u; 802.3x
Environmental
- Operating Temperature Range
- 32 to 158 F (0 to 70 C)
- Relative Humidity
- 5% to 90% RH, Non-Condensing
- Power Consumption (Watts)
- 1W Max
Storage Temperature Range14 to 158 F (-10 to 70 C)
BTUs3.1 BTU/Hr
Overview
- UPC Code
- 037332189240
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
