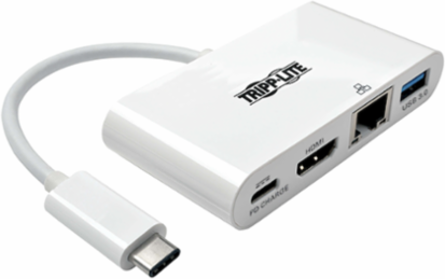

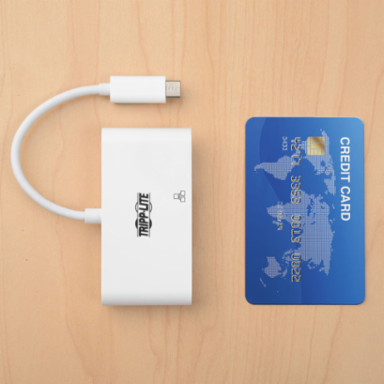

Tripp Lite U444-06N-HGU-C USB-C Multiport Adapter with HDMI, Gigabit Ethernet, 60W PD Charging
- MPN: U444-06N-HGU-C
- UPC: 037332193940
- PPN: TRP-U444-06N-HGU-C
CAD
$157.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

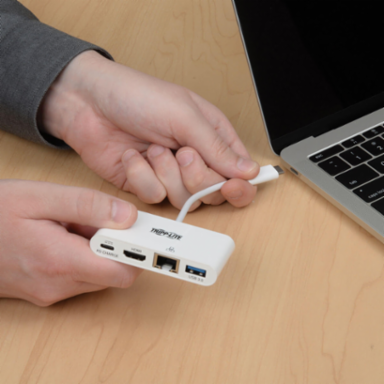

Mini docking station adds HDMI, USB-A, USB-C PD charging and Gigabit Ethernet ports to the USB-C or Thunderbolt 3 port on your tablet, laptop, notebook, MacBook, Chromebook, smartphone or PC.
Features
- Supports USB DisplayPort Alternate Mode for transmitting audio/video
- Supports HD video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
- Supports true 10/100/1000 Mbps Ethernet network speeds
- PD Charging port supports power input up to 20V 3A
- BC 1.2-compliant USB-A port provides up to 1.5A of fast-charging power
- Plug-and-play operation with no software or drivers required
- 3-year limited warranty

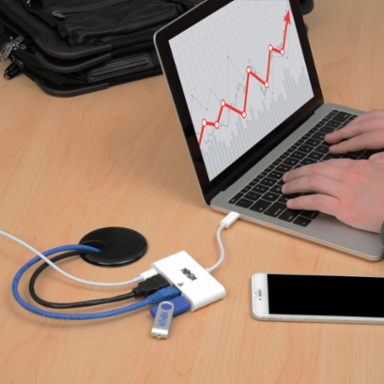

- Mini Docking Station Turns Your Device’s USB-C Port into a Multiport Workstation

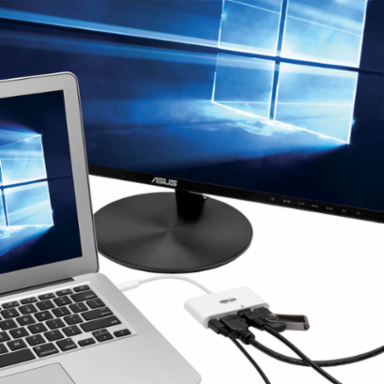

- Transmit Crystal-Clear 1080p Video and Digital Audio to HDMI Display
- Connect a USB Peripheral
- Charge a Connected Device
- Access a Wired Gigabit Ethernet Network

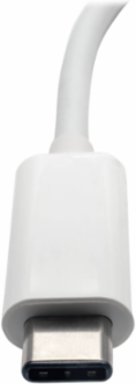

- Built-In Cable with Reversible USB-C Connector
Documentation & Downloads
Specifications
Features & Specifications
- Max Supported Video Resolution
- HDMI: 1920 X 1080 (1080P) @ 60HZ
- HDCP Specification
- 1.3
- Driver Required
- No
- USB Power Delivery (PD) Charging Support
- Yes
- Full Duplex Support
- Yes
- Remote Wakeup Support
- Yes
- USB Power Delivery (PD) Charging Specification
- 2.0
HDMI Specification1.3
USB SpecificationUSB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
Recommended Category CableCat5/Cat5e/Cat6 Cables
Auto MDIX SupportYes
Suspend Mode SupportYes
TechnologyCat5/5e; Cat6; USB 3.1 (Gen 1); HDMI; USB; PD Charging
Battery
- Battery Charging (1.2 Port)
- Yes
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 4
- Side B - Connector 1
- HDMI (FEMALE)
- Side B - Connector 3
- USB Type-C (FEMALE)
- Connector Plating
- Nickel
Side A - Connector 1USB C (MALE)
Side B - Connector 2USB 3.0 A (FEMALE)
Side B - Connector 4RJ45 (FEMALE)
Physical
- Cable Jacket Rating
- VW-1
- Material of Construction
- PVC and ABS
- Shipping Weight (lbs.)
- 0.10
- Unit Packaging Type
- Box
ColorWhite
Shipping Dimensions (hwd / in.)0.90 x 3.90 x 5.70
Unit Dimensions (hwd / in.)0.57 x 1.57 x 3.15
Unit Weight (lbs.)0.10
User Interface, Alerts & Controls
- LED Indicators
- Green = Connected, Orange = Activity
Input
- Bus Powered
- Yes
- Product Length (cm.)
- 15.24
- Product Length (m.)
- 0.15
Product Length (in.)6
Product Length (ft.)0.5
Output
- Charging Ports / Amps
- 1.5A; 3A
Charging Watts60
Communications
- Network Speed
- 1Gbps
IEEE Standards Supported802.3; 802.3u; 802.3az; 802.3x
Environmental
- Operating Temperature Range
- 32 to 113 F (0 to 45 C)
- BTUs
- 9 BTU/Hr
- Operating Humidity Range
- 10% to 85% RH, Non-Condensing
- Power Provided to Connected Device(s)
- 5V 1.5A (7.5W) Output (USB-A), Up to 20V 3A (60W) Input (USB-C)
Storage Temperature Range14 to 158 F (-10 to 70 C)
Power Consumption (Watts)2.6
Storage Humidity Range5% to 90% RH, Non-Condensing
Overview
- UPC Code
- 037332193940
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
