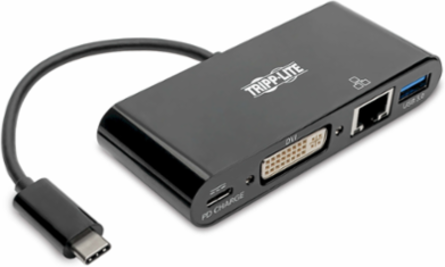

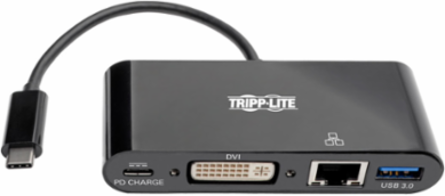

Tripp Lite U444-06N-DGUB-C USB-C Multiport Adapter - DVI, USB-A, Gigabit Ethernet, PD Charging, Black
- MPN: U444-06N-DGUB-C
- UPC: 037332209122
- PPN: TRP-U444-06N-DGUB-C
CAD
$49.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Adds DVI, USB-A, USB-C PD charging and Gigabit Ethernet ports to your tablet, laptop, notebook, smartphone or PC.
Features
- Transmits DisplayPort signals from sources supporting USB DisplayPort Alt Mode
- Delivers HD picture quality at resolutions up to 1920 x 1080 (1080p) @ 60 Hz
- Connects you to a wired Ethernet network when no Wi-Fi is available
- BC 1.2-compliant USB-A port provides up to 1.5A of fast-charging power
- Powers and charges PD Charging-compliant devices, such as MacBooks and Chromebooks
- Easy installation with plug-and-play operation—no software required
- 3-year limited warranty

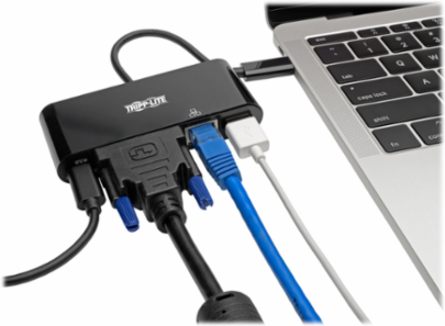

- Mini Docking Station Turns Your Device’s USB-C or Thunderbolt 3 Port into a Multiport Workstation
- Supports USB DisplayPort Alternate Mode for Transmitting DisplayPort and USB Signals
- Transmits Crystal-Clear 1080p Video to a DVI Display
- Connects a USB Peripheral
- Charges a Connected Device
- Accesses a Wired Gigabit Ethernet Network

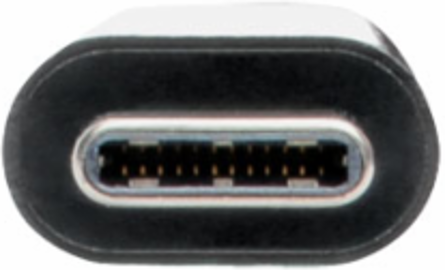

- Built-In USB-C Cable Connects in Either Direction
- Ready to Use Right Out of the Package
- 3-Year Warranty and Environmentally Responsible Design
Documentation & Downloads
Specifications
Features & Specifications
- Max Supported Video Resolution
- DVI: 1920 X 1080 (1080P) @ 60HZ
- USB Specification
- USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
- Recommended Category Cable
- Cat5/Cat5e/Cat6 Cables
- Auto MDIX Support
- Yes
- Suspend Mode Support
- Yes
- Technology
- Cat5/5e; Cat6; USB 3.1 (Gen 1); DVI; USB; PD Charging
HDCP Specification1.3
Driver RequiredNo
USB Power Delivery (PD) Charging SupportYes
Full Duplex SupportYes
Remote Wakeup SupportYes
USB Power Delivery (PD) Charging Specification2.0
Battery
- Battery Charging (1.2 Port)
- Yes
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 4
- Side B - Connector 1
- DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK)
- Side B - Connector 3
- RJ45 (FEMALE)
- Connector Plating
- Nickel
Side A - Connector 1USB C (MALE)
Side B - Connector 2USB 3.0 A (FEMALE)
Side B - Connector 4USB Type-C (FEMALE)
Physical
- Cable Jacket Rating
- VW-1
- Material of Construction
- PVC and ABS
- Shipping Weight (lbs.)
- 0.20
- Unit Packaging Type
- Box
ColorBlack
Shipping Dimensions (hwd / in.)0.90 x 3.90 x 5.50
Unit Dimensions (hwd / in.)0.65 x 3.8 x 1.6
Unit Weight (lbs.)0.09
Input
- Bus Powered
- Yes
- Product Length (cm.)
- 15.24
- Product Length (m.)
- 0.15
Product Length (in.)6
Product Length (ft.)0.5
Output
- Charging Ports / Amps
- 1.5A; 3A
Charging Watts60
Communications
- Network Speed
- 1Gbps
IEEE Standards Supported802.3; 802.3u; 802.3az; 802.3x
Environmental
- Operating Temperature Range
- 32 to 113 F (0 to 45 C)
- BTUs
- 8.3 BTU/Hr
- Operating Humidity Range
- 10% to 85% RH, Non-Condensing
- Power Provided to Connected Device(s)
- 5V 0.9A (4.5W) Output (USB-A), Up to 20V 3A (60W) Input (USB-C)
Storage Temperature Range14 to 158 F (-10 to 70 C)
Power Consumption (Watts)2.4
Storage Humidity Range5% to 90% RH, Non-Condensing
Overview
- UPC Code
- 037332209122
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
