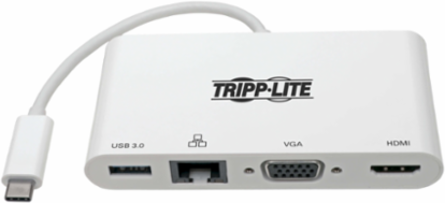

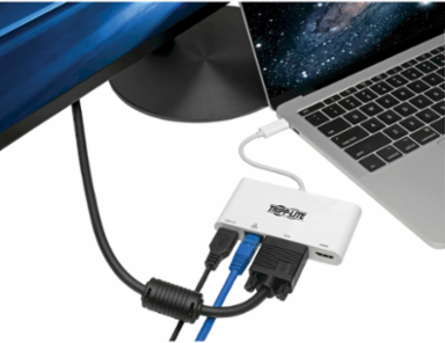

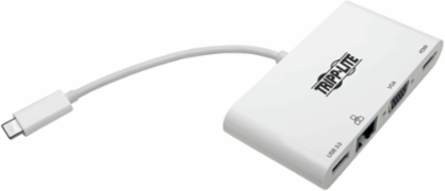

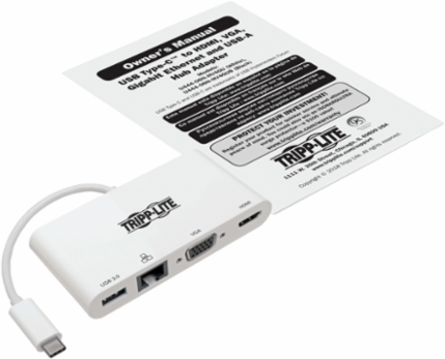

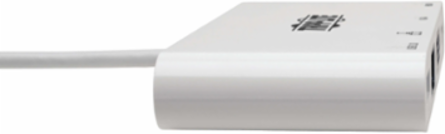

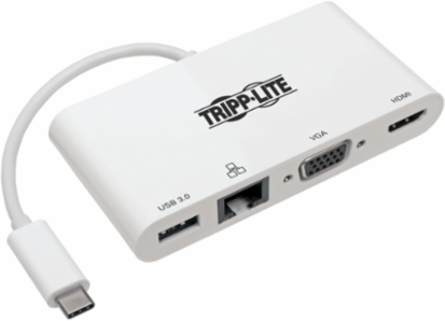

Tripp Lite U444-06N-HV4GU USB-C Multiport Adapter with 4K HDMI, VGA, USB-A, Gigabit Ethernet, White
- MPN: U444-06N-HV4GU
- UPC: 037332210470
- PPN: TRP-U444-06N-HV4GU
CAD
$141.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB-C Multiport Adapter with 4K HDMI, VGA, USB-A, Gigabit Ethernet, White
Features
- Transmits video signals from sources supporting USB-C DisplayPort Alt Mode
- HDMI port delivers UHD quality at resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
- Connects you to a wired Gigabit Ethernet network when Wi-Fi is weak or unavailable
- Supports USB 3.1 Gen 1 speeds up to 5 Gbps to ensure fast data transfers
- Reversible USB-C plug connects in either direction for immediate no-fuss use
- 3-year limited warranty
- USB 3.1 C Adapter Connects an HDMI or VGA Monitor to Your USB-C or Thunderbolt 3 Device
- Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
- Transmits Crystal-Clear 4K HDMI Video and Digital Audio
- USB Port Connects Peripherals and Transfers Data at Fast USB 3.1 Gen 1 Speeds
- Accesses a Wired Gigabit Ethernet Network
- Built-In USB-C Cable Connects in Either Direction
- Ready to Use Right Out of the Package
Documentation & Downloads
Specifications
Features & Specifications
| Max Supported Video Resolution | HDMI: 3840 X 2160 (4K X 2K) @ 30HZ; VGA: 1920 X 1200 (1080P) @ 60HZ |
|---|---|
| HDCP Specification | 1.4 |
| Audio Specification | 7.1 channel surround sound via HDMI port |
| Recommended Category Cable | Cat5/Cat5e/Cat6 Cables |
| Auto MDIX Support | Yes |
| Suspend Mode Support | Yes |
| Technology | Cat5/5e; Cat6; HDMI; USB; USB 3.1 (Gen 1) |
| HDMI Specification | 1.4 |
|---|---|
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| Driver Required | No |
| USB Power Delivery (PD) Charging Support | No |
| Full Duplex Support | Yes |
| Remote Wakeup Support | Yes |
Battery
| Battery Charging (1.2 Port) | No |
|---|
Certifications
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|
Connections
| Ports | 4 |
|---|---|
| Side B - Connector 1 | HDMI (FEMALE) |
| Side B - Connector 3 | RJ45 (FEMALE) |
| Connector Plating | Nickel |
| Side A - Connector 1 | USB C (MALE) |
|---|---|
| Side B - Connector 2 | USB 3.0 A (FEMALE) |
| Side B - Connector 4 | HD15 (FEMALE) |
Physical
| Cable Jacket Rating | VW-1 |
|---|---|
| Material of Construction | PVC and ABS |
| Shipping Weight (lbs.) | 0.10 |
| Unit Packaging Type | Box |
| Color | White |
|---|---|
| Shipping Dimensions (hwd / in.) | 0.91 x 5.50 x 3.90 |
| Unit Dimensions (hwd / in.) | 0.57 x 1.57 x 3.15 |
| Unit Weight (lbs.) | 0.086 |
User Interface, Alerts & Controls
| LED Indicators | Green (Connection), Orange (Activity) |
|---|
Input
| Bus Powered | Yes |
|---|---|
| Product Length (cm.) | 15.24 |
| Product Length (m.) | 0.15 |
| Product Length (in.) | 6 |
|---|---|
| Product Length (ft.) | 0.5 |
Communications
| Network Speed | 1Gbps |
|---|
| IEEE Standards Supported | 802.3; 802.3u; 802.3az; 802.3x |
|---|
Environmental
| Operating Temperature Range | 32 to 113 F (0 to 45 C) |
|---|---|
| BTUs | 9.6 BTU/Hr |
| Operating Humidity Range | 10% to 85% RH, Non-Condensing |
| Storage Temperature Range | 14 to 158 F (-10 to 70 C) |
|---|---|
| Power Consumption (Watts) | 2.8 |
| Storage Humidity Range | 5% to 90% RH, Non-Condensing |
Overview
| UPC Code | 037332210470 |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
