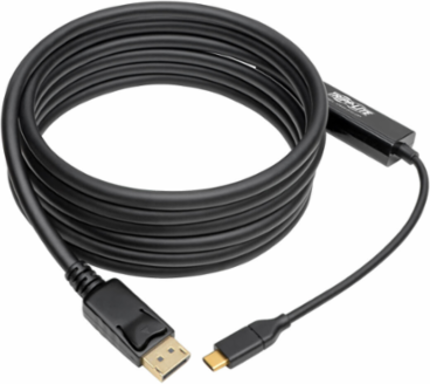

Tripp Lite U444-010-DP USB-C to DisplayPort Adapter Cable 4K @ 60Hz, 10 ft, Gold Plated
- MPN: U444-010-DP
- UPC: 037332193858
- PPN: TRP-U444-010-DP
CAD
$32.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

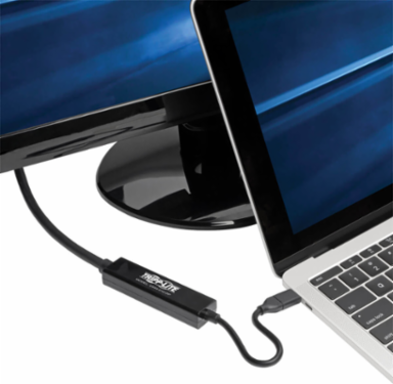

Connects your existing DisplayPort monitor or projector to the USB-C or Thunderbolt 3 port on your tablet, laptop, notebook, smartphone or PC. Saves you the clutter and expense of additional cables and adapters.
Features
- Supports USB DisplayPort Alternate Mode for transmitting audio/video
- Supports UHD video resolutions up to 4K @ 60 Hz
- Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps
- Reversible USB-C plug connects in either direction
- Plug-and-play operation with no software or drivers required
- Note: This cable is uni-directional. Will only work from a USB-C port to DisplayPort
- 3-year limited warranty
- Connects a DisplayPort Display to Your USB-C or Thunderbolt 3 Device
- Crystal-Clear 4K Video and Digital Audio

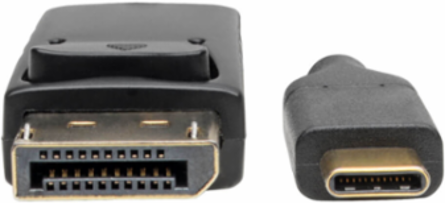

- Reversible USB-C Connector
- Premium Construction
- Ready for Instant Use
- Locking DP Connector Helps Prevent Accidental Disconnection and Expensive Downtime
Documentation & Downloads
Specifications
Features & Specifications
| Max Supported Video Resolution | DP: 3840 X 2160 (4K) @ 60HZ |
|---|---|
| HDCP Specification | 1.3 |
| Driver Required | No |
| Displayport Specification | 1.2 |
|---|---|
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| Technology | DisplayPort; USB 3.1 (Gen 1); USB |
Battery
| Battery Charging (1.2 Port) | No |
|---|
Certifications
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|
Connections
| Side A - Connector 1 | USB C (MALE) |
|---|---|
| Connector Plating | Gold |
| Side B - Connector 1 | DISPLAYPORT (MALE) |
|---|
Physical
| Cable Jacket Rating | VW-1 |
|---|---|
| Material of Construction | PVC and ABS |
| Shipping Weight (lbs.) | 0.31 |
| Unit Weight (lbs.) | 0.3 |
| Color | Black |
|---|---|
| Shipping Dimensions (hwd / in.) | 9.00 x 7.00 x 0.50 |
| Unit Packaging Type | Polybag |
Input
| Cable Length (ft.) | 10 |
|---|---|
| Product Length (in.) | 120 |
| Product Length (ft.) | 10 |
| Bus Powered | Yes |
|---|---|
| Product Length (cm.) | 304.8 |
| Product Length (m.) | 3.05 |
Environmental
| Operating Temperature Range | 32 to 113 F (0 to 45 C) |
|---|---|
| BTUs | 2.1 BTU/Hr |
| Operating Humidity Range | 10% to 85% RH, non-condensing |
| Storage Temperature Range | 14 to 158 F (-10 to 70 C) |
|---|---|
| Power Consumption (Watts) | 0.6 |
| Storage Humidity Range | 5% to 90% RH, non-condensing |
Overview
| UPC Code | 037332193858 |
|---|
Special Features
| HDR Support | Yes |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
