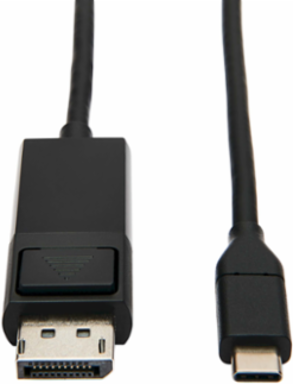

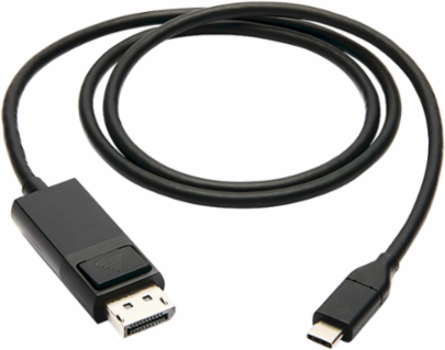

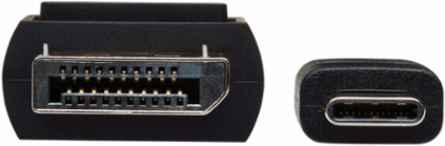

Tripp Lite U444-003-DP-BE USB-C to DisplayPort Adapter Cable, 3 ft, 4K 60Hz, Locking DP Connector
- MPN: U444-003-DP-BE
- UPC: 037332236678
- PPN: TRP-U444-003-DP-BE
CAD
$59.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB-C to DisplayPort Adapter Cable, 3 ft, 4K 60Hz, Locking DP Connector
Features
- Converts audio/video signals from sources supporting USB DisplayPort Alt Mode
- Delivers Ultra HD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz
- Reversible USB-C plug connects in either direction for immediate no-fuss use
- Locking DisplayPort connector prevents cable from coming loose accidentally
- Dual male plugs connect directly to devices—no other adapter or cable is needed
- 3-year limited warranty
- USB-C to DisplayPort Adapter Connects to Your Computer’s USB-C or Thunderbolt 3 Port
- Supports USB-C DisplayPort Alternate Mode for Converting Audio/Video Signals
- Enjoy the Clarity of True 4K Video with Audio and 4:4:4 Color
- Locking DP Connector Helps Prevent Accidental Disconnection and Expensive Downtime
- Reversible USB-C Connector Attaches in Either Direction
- Ready to Use Right from the Package, So You Can Plug and Play Immediately
Documentation & Downloads
Specifications
Features & Specifications
| Max Supported Video Resolution | DP: 3840 X 2160 (4K X 2K) @ 60HZ |
|---|---|
| HDCP Specification | 2.2 |
| Driver Required | No |
| Displayport Specification | 1.2 |
|---|---|
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| Technology | DisplayPort; USB 3.1 (Gen 1); USB |
Battery
| Battery Charging (1.2 Port) | No |
|---|
Certifications
| Certifications | CE, FCC, ROHS, REACH |
|---|
Connections
| Side A - Connector 1 | USB C (MALE) |
|---|---|
| Connector Plating | Nickel |
| Side B - Connector 1 | DISPLAYPORT (MALE) |
|---|---|
| Contact Plating | Gold |
Physical
| Cable Jacket Rating | VW-1 |
|---|---|
| Color | Black |
| Unit Weight (lbs.) | 0.16 |
| Cable Outer Diameter (OD) | 4.5mm |
|---|---|
| Material of Construction | PVC and ABS |
Input
| Cable Length (ft.) | 3 |
|---|
| Bus Powered | Yes |
|---|
Environmental
| Operating Temperature Range | 32 to 113 F (0 to 45 C) |
|---|---|
| BTUs | 2.1 BTU/Hr |
| Operating Humidity Range | 10% to 85% RH, non-condensing |
| Storage Temperature Range | 14 to 158 F (-10 to 70 C) |
|---|---|
| Power Consumption (Watts) | 0.6 |
| Storage Humidity Range | 5% to 90% RH, non-condensing |
Overview
| UPC Code | 037332236678 |
|---|
Special Features
| HDR Support | Yes |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
