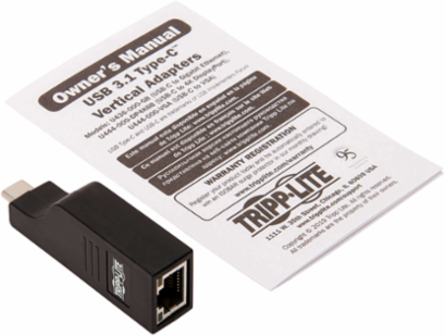

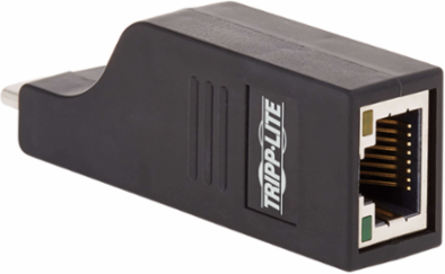

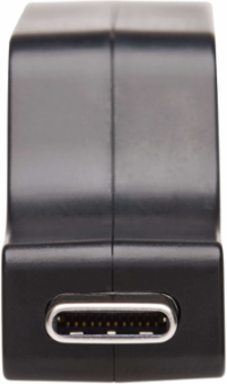

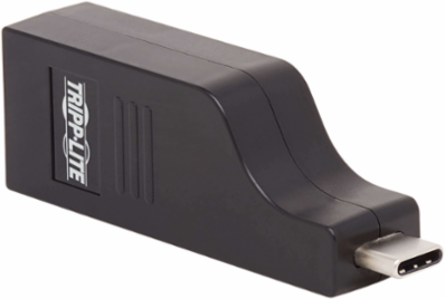

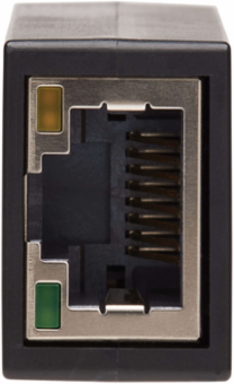

Tripp Lite U436-000-GB USB-C to Gigabit Ethernet Vertical Adapter, 10/100/1000 Mbps, Black
- MPN: U436-000-GB
- UPC: 037332238085
- PPN: TRP-U436-000-GB
CAD
$28.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB-C to Gigabit Ethernet Vertical Adapter, 10/100/1000 Mbps, Black
Features
- Connects to a wired 10/100/1000 Mbps network where Wi-Fi is weak or unavailable
- Vertical USB-C plug orientation prevents adjacent ports from being blocked
- More convenient, less expensive than installing or upgrading an internal Ethernet card
- Reversible USB-C plug connects in either direction for immediate no-fuss use
- Plug-and-play operation with no software required for easy, immediate installation
- 3-year limited warranty

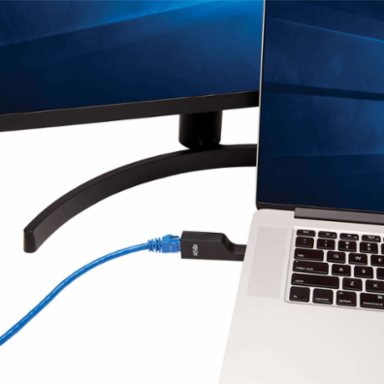

- USB-C to Gigabit Ethernet Adapter Connects to Your Laptop’s USB-C or Thunderbolt 3 Port
- Access True Gigabit Speeds Without an Ethernet Card
- Vertical Molding Prevents Blockage of Adjacent Ports
- Ready to Use Right from the Package, So You Can Plug and Play Immediately
Specifications
Features & Specifications
| USB Specification | USB 3.1 Gen 1 (up to 5 Gbps) |
|---|---|
| Recommended Category Cable | Cat5e/Cat6 |
| Technology | Cat5/5e; Cat6; USB; USB 3.1 (Gen 1) |
| Driver Required | No |
|---|---|
| Full Duplex Support | Yes |
Certifications
| Certifications | Certified to RoHS, REACH, CE, FCC |
|---|
Connections
| Side A - Connector 1 | (1) USB C (MALE) |
|---|---|
| Contact Plating | Gold |
| Side B - Connector 1 | (1) RJ45 (FEMALE) |
|---|
Physical
| Color | Black |
|---|---|
| Unit Dimensions (hwd / in.) | 0.56 x 0.08 x 2.53 |
| Unit Weight (lbs.) | 0.025 |
| Material of Construction | ABS, PBT |
|---|---|
| Unit Packaging Type | Polybag |
User Interface, Alerts & Controls
| LED Indicators | Green = Data Transmission, Orange = Power |
|---|
Input
| Bus Powered | Yes |
|---|
Communications
| Network Speed | 1Gbps |
|---|
| IEEE Standards Supported | 802.1q; 802.3; 802.3az; 802.3u; 802.3x |
|---|
Environmental
| Operating Temperature Range | 32 ~ 104F (0 ~ 40C) |
|---|---|
| Relative Humidity | 0% ~ 85% RH, Non-Condensing |
| Storage Temperature Range | 5 ~ 122F (-15 ~ 50C) |
|---|
Overview
| UPC Code | 037332238085 |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
