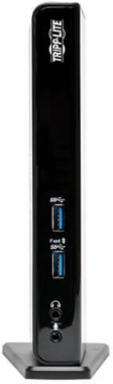

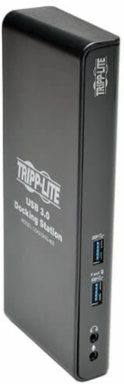

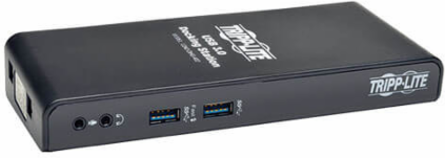

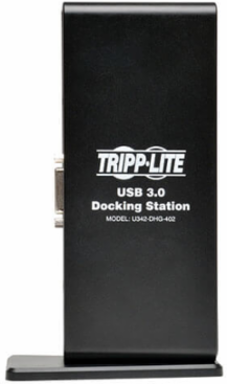

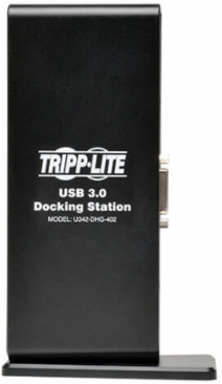

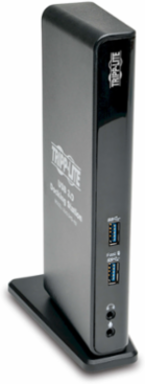

Tripp Lite U342-DHG-402 USB 3.0 Dual Head Docking Station with HDMI, DVI, and Ethernet
- MPN: U342-DHG-402
- UPC: 037332182586
- PPN: TRP-U342-DHG-402
CAD
$189.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

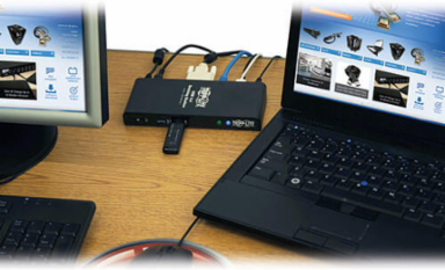

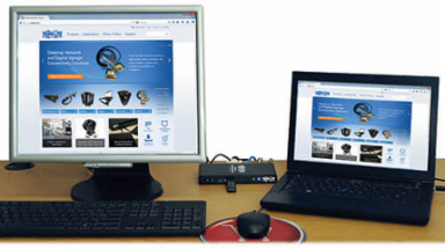

Connect the dock to a single USB 3.0 port on your Laptop computer to add HDMI, DVI, Audio, and Gigabit Ethernet
Features
- Add multiple ports to your laptop via one USB 3.0 connection
- Backward compatible to USB 2.0 and 1.1
- Windows 7 and later compatible, Windows 10
- Mac OS 10.8.5 and later compatible, Mac 10.11
- Compatible with Ubuntu 14.04.2
- 3-year limited warranty
Documentation & Downloads
Specifications
Features & Specifications
| Max Supported Video Resolution | 2048 x 1152 @60Hz |
|---|---|
| HDCP Specification | 1.3 |
| Driver Required | Yes |
| Full Duplex Support | Yes |
| Technology | Cat5/5e; Cat6; DVI; HDMI; Stereo Audio; USB; USB 3.0 (SuperSpeed) |
| HDMI Specification | 1.3 |
|---|---|
| USB Specification | USB 2.0 (up to 480 Mbps); USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| Auto MDIX Support | Yes |
| Remote Wakeup Support | Yes |
Certifications
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|

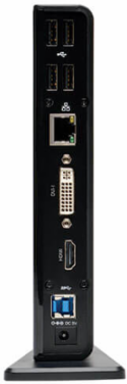

Connections
| Ports | 9 |
|---|---|
| Side B - Connector 1 | HDMI (FEMALE) |
| Side B - Connector 3 | DVI-I (FEMALE) |
| Side B - Connector 5 | (4) USB A (FEMALE) |
| Connector Plating | Nickel |
| Side A - Connector 1 | USB 3.0 A (MALE) |
|---|---|
| Side B - Connector 2 | (2) USB 3.0 A (FEMALE) |
| Side B - Connector 4 | RJ45 (FEMALE) |
| Side B - Connector 6 | (2) 3.5MM (FEMALE) |
Physical
| Color | Black |
|---|---|
| Shipping Dimensions (hwd / in.) | 4.10 x 8.40 x 5.10 |
| Unit Dimensions (hwd / in.) | 1.2 x 7.4 x 3 (Base is 2.8 x 5) |
| Unit Weight (lbs.) | 1.30 |
| Material of Construction | ABS |
|---|---|
| Shipping Weight (lbs.) | 2.30 |
| Unit Packaging Type | Box |
User Interface, Alerts & Controls
| LED Indicators | Blue (Power), Green (USB) |
|---|
Input
| Voltage Compatibility (VAC) | 100; 110; 120; 127; 200; 208; 220; 230; 240 |
|---|---|
| External Power Supply Output Specs (V / A) | 5V / 4A |
| External Power Supply DC Barrel Connector Specs | OD: 4.75 x 1.7 x 9.5mm, Positive Pin, Negative Sleeve |
| External Power Supply Certifications | FCC; UL; RoHS |
| External Power Supply Input Specs (V / Hz / A) | 100-240V / 50/60Hz / 0.8A |
|---|---|
| External Power Supply Cord Length (ft.) | 6 |
| External Power Supply Plug(s) | NEMA 1-15P North America |
Communications
| Network Speed | 1Gbps |
|---|
| IEEE Standards Supported | 802.3az |
|---|
Environmental
| Operating Temperature Range | 32 to 104 F (0 to 40 C) |
|---|---|
| Relative Humidity | 0% to 90 RH, Non-Condensing |
| Power Consumption (Watts) | 4.5 |
| Storage Temperature Range | 14 to 176 F (-10 to 80 C) |
|---|---|
| BTUs | 15.4 BTU/Hr |
| Power Provided to Connected Device(s) | 5V 1.5A (7.5W) Output per BC 1.2 USB Port, 5V 0.9A (4.5W) Output per USB 3.0 Port, 5V 0.5A (2.5W) Output per USB A Ports |
Overview
| UPC Code | 037332182586 |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
