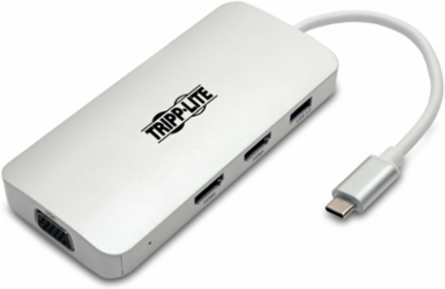

Tripp Lite U442-DOCK12-S USB-C Dual Display Dock, 2x HDMI, VGA, USB-A, PD Charging, 60W
- MPN: U442-DOCK12-S
- UPC: 037332213389
- PPN: TRP-U442-DOCK12-S
CAD
$69.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB-C Dual Display Dock, 2x HDMI, VGA, USB-A, PD Charging, 60W
Features
- Transmits audio/video signals from sources supporting USB DisplayPort Alt Mode
- Delivers HD picture quality at resolutions up to 1920 x 1200 (including 1080p) @ 60 Hz
- Connect all three video ports at the same time
- USB-A port transfers data from thumb drives or printers at speeds up to 5 Gbps
- Powers and charges PD Charging-compliant devices, such as MacBooks and Chromebooks
- Easy installation with plug-and-play operation—no software required
- 3-year limited warranty
- USB-C Dock Turns Your Device’s USB-C or Thunderbolt 3 Port into a Multiport Workstation
- Supports USB DisplayPort Alternate Mode for Transmitting Audio/Video Signals
- Connects Keyboards, Thumb Drives and Other USB Peripherals
- Charges the Connected Laptop, Smartphone or Other Device
- Built-In USB-C Cable Connects in Either Direction
- Ready to Use Right Out of the Package
- 3-Year Warranty and Environmentally Responsible Design
Documentation & Downloads
Specifications
Features & Specifications
| Max Supported Video Resolution | HDMI/VGA: 1920 x 1200 (1080P) @ 60Hz |
|---|---|
| HDCP Specification | 1.3 |
| Driver Required | No |
| Full Duplex Support | Yes |
| USB Power Delivery (PD) Charging Specification | 2.0 |
| HDMI Specification | 1.4 |
|---|---|
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| USB Power Delivery (PD) Charging Support | Yes |
| Technology | HDMI; USB; USB 3.1 (Gen 1); VGA/SVGA; PD Charging |
Battery
| Battery Charging (1.2 Port) | No |
|---|
Certifications
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|
Connections
| Ports | 5 |
|---|---|
| Side B - Connector 1 | HD15 (FEMALE); (2) HDMI (FEMALE); USB 3.0 A (FEMALE); USB C (FEMALE) |
| Side A - Connector 1 | USB C (MALE) |
|---|---|
| Connector Plating | Nickel |
Physical
| Cable Jacket Rating | VW-1 |
|---|---|
| Material of Construction | Aluminium |
| Shipping Weight (lbs.) | 0.00 |
| Unit Packaging Type | Box |
| Color | Silver; White |
|---|---|
| Shipping Dimensions (hwd / in.) | 0.00 x 0.00 x 0.00 |
| Unit Dimensions (hwd / in.) | 0.67 x 4.7 x 2.2 |
| Unit Weight (lbs.) | 0.21 |
User Interface, Alerts & Controls
| LED Indicators | White (Power) |
|---|
Input
| Bus Powered | Yes |
|---|---|
| Product Length (cm.) | 30.48 |
| Product Length (m.) | 0.3 |
| Product Length (in.) | 12 |
|---|---|
| Product Length (ft.) | 1 |
Output
| Charging Ports / Amps | 0.9A; 3A |
|---|
| Charging Watts | 60 |
|---|
Environmental
| Operating Temperature Range | 32 to 131 F (0 to 55 C) |
|---|---|
| Relative Humidity | 5% to 95% RH, Non-Condensing |
| Power Consumption (Watts) | 0.85 |
| Storage Temperature Range | 14 to 158 F (-10 to 70 C) |
|---|---|
| BTUs | 2.9 BTU/Hr |
| Power Provided to Connected Device(s) | 5V 0.9A (4.5W) Output (USB A), Up to 20V 3A (60W) Input (USB C) |
Overview
| UPC Code | 037332213389 |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
