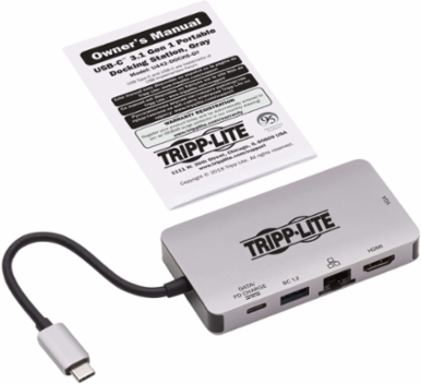

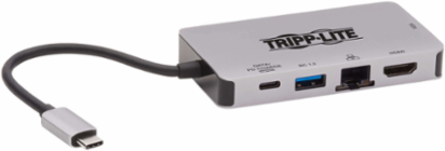

Tripp Lite U442-DOCK6-GY USB-C Dual Display Dock, 4K HDMI, 100W Power Delivery, 6 Ports
- MPN: U442-DOCK6-GY
- UPC: 037332240774
- PPN: TRP-U442-DOCK6-GY
CAD
$93.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB-C Dual Display Dock, 4K HDMI, 100W Power Delivery, 6 Ports
Features
- Converts audio/video signals from sources supporting USB-C DisplayPort Alt Mode
- Supports UHD resolutions up to 4096 x 2160 (@ 30 Hz) for crystal-clear 4K x 2K video
- Connects you to a wired 10/100/1000 Ethernet network when Wi-Fi is unavailable
- Provides 20V 5A (100W) power output for fast-charging large-capacity mobile devices
- Plug-and-play operation with no software required for easy, immediate installation
- 3-year limited warranty
- Portable Docking Station Turns Your Device’s USB-C or Thunderbolt 3 Port into a Workstation
- Supports USB-C DisplayPort Alternate Mode for Converting Audio/Video Signals
- Transmits Crystal-Clear 4K Video and Digital Audio with True 4:4:4 Color

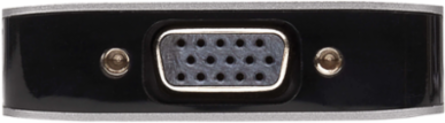

- Connect an Existing VGA Monitor for Analog Video
- Connects Keyboards, Thumb Drives and Other USB Peripherals
- PD Charging Port Charges the Connected Chromebook, MacBook Pro or Other Device
- Accesses a Wired Gigabit Ethernet Network
- Built-In USB-C Cable Attaches in Either Direction
- Ready to Use Right from the Package, So You Can Plug and Play Immediately
Documentation & Downloads
Specifications
Features & Specifications
- Max Supported Video Resolution
- HDMI: 4096 x 2160, including 3840 X 2160 (4K X 2K) @ 30HZ; VGA: 1920 X 1200 (1080P) @ 60HZ
- HDCP Specification
- 1.4
- Driver Required
- No
- USB Power Delivery (PD) Charging Support
- Yes
- Full Duplex Support
- Yes
- Remote Wakeup Support
- Yes
- USB Power Delivery (PD) Charging Specification
- 3.0
HDMI Specification1.4
USB SpecificationUSB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
Recommended Category CableCat5/Cat5e/Cat6 Cables
Auto MDIX SupportYes
Suspend Mode SupportYes
TechnologyCat5/5e; Cat6; HDMI; USB; USB 3.0 (SuperSpeed); USB 3.1 (Gen 1); VGA/SVGA; PD Charging
Chroma Sub Sampling4:4:4
Battery
- Battery Charging (1.2 Port)
- Yes
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 6
- Side A - Connector 1
- USB C (MALE)
- Side B - Connector 2
- HD15 (FEMALE)
- Connector Plating
- Nickel
Dock ConnectorsUSC-C Data/PD Charge, (x2) USB-A, HDMI, VGA, RJ45
Side B - Connector 1HDMI (FEMALE); RJ45 (FEMALE); USB 3.0 A (FEMALE); USB C (FEMALE)
Side B - Connector 3USB 3.0 A (FEMALE)
Physical
- Cable Jacket Rating
- VW-1
- Material of Construction
- Aluminum
- Unit Packaging Type
- Box
ColorGray
Unit Dimensions (hwd / in.)0.6 x 3.7 x 1.9
Unit Weight (lbs.)0.18
User Interface, Alerts & Controls
- LED Indicators
- White (Power) and Orange (Activity)
Input
- Built-In Cable Length (ft.)
- 0.34
- Built-In Cable Length (in.)
- 4.72
Built-In Cable Length (m)0.12
Bus PoweredYes
Output
- Charging Ports / Amps
- (1) 1.5A; (1) 5A
Communications
- Network Speed
- 1Gbps
IEEE Standards Supported802.3; 802.3az; 802.3u; 802.3x
Environmental
- Operating Temperature Range
- 32 to 113 F (0 to 45 C)
- Operating Humidity Range
- 10% to 85% RH, Non-Condensing
- Power Provided to Connected Device(s)
- USB-A: 5V 1.6A (8W) when connected to a PD 3.0 compliant charger; USB-C: 20V 5A (100W)
Storage Temperature Range14 to 158 F (-10 to 70 C)
Storage Humidity Range5% to 90% RH, Non-Condensing
Overview
- UPC Code
- 037332240774
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
