Tripp Lite U442-DOCK4-S USB-C Dual Display Dock, 100W Power Delivery, 4K HDMI & DisplayPort Outputs
- MPN: U442-DOCK4-S
- UPC: 037332213518
- PPN: TRP-U442-DOCK4-S
CAD
$349.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB-C Dual Display Dock, 100W Power Delivery, 4K HDMI & DisplayPort Outputs
Features
- Transmits audio/video signals from sources supporting USB DisplayPort Alt Mode
- Supports UHD resolutions up to 3840 x 2160 (@ 30 Hz) for crystal-clear 4K x 2K video
- Connects you to a wired 10/100/1000 Ethernet network when no Wi-Fi is available
- Provides 20V 5A (100W) power output for fast-charging large-capacity mobile devices
- Plug-and-play operation with no software required for easy, immediate installation
- 3-year limited warranty
- USB-C Docking Station Turns Your Device’s USB-C or Thunderbolt 3 Port into a Multiport Workstation
- Supports USB DisplayPort Alternate Mode for Transmitting Audio/Video Signals
- Transmits Crystal-Clear 4K Video and Digital Audio
- Connects Keyboards, Thumb Drives and Other USB Peripherals
- Charges the Connected Laptop, Smartphone or Other Device
- Accesses a Wired Gigabit Ethernet Network
- Connects Audio Equipment

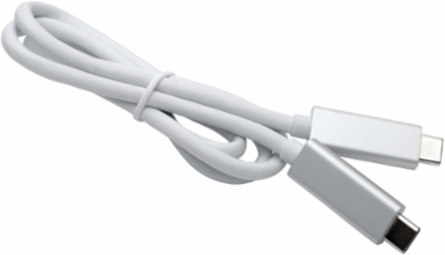

- Built-In USB-C Cable Connects in Either Direction
- Ready to Use Right Out of the Package
- 3-Year Warranty and Environmentally Responsible Design
Specifications
Features & Specifications
- Max Supported Video Resolution
- DP/HDMI: 3840 X 2160 (4K X 2K) @ 30HZ; VGA: 1920 X 1200 (1080P) @ 60HZ
- HDMI Specification
- 1.4
- USB Specification
- USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
- Driver Required
- No
- USB Power Delivery (PD) Charging Support
- Yes
- Full Duplex Support
- Yes
- Remote Wakeup Support
- Yes
- USB Power Delivery (PD) Charging Specification
- 2.0
Displayport Specification1.2
HDCP Specification1.4
Audio SpecificationStereo
Recommended Category CableCat5/Cat5e/Cat6 Cables
Auto MDIX SupportYes
Suspend Mode SupportYes
TechnologyCat5/5e; Cat6; DisplayPort; HDMI; Stereo Audio; USB; USB 3.0 (SuperSpeed); USB 3.1 (Gen 1); VGA/SVGA; PD Charging
Battery
- Battery Charging (1.2 Port)
- Yes
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 13
- Side B - Connector 1
- 3.5MM (FEMALE); DISPLAYPORT (FEMALE); HD15 (FEMALE); HDMI (FEMALE); RJ45 (FEMALE); (2) USB 3.0 A (FEMALE); USB C (FEMALE)
Side A - Connector 13.5MM (FEMALE); (2) USB 3.0 A (FEMALE); USB C (FEMALE)
Connector PlatingNickel
Physical
- Cable Jacket Rating
- VW-1
- Material of Construction
- PVC, Aluminium
- Shipping Weight (lbs.)
- 2.55
- Unit Packaging Type
- Box
ColorSilver
Shipping Dimensions (hwd / in.)2.30 x 9.45 x 7.90
Unit Dimensions (hwd / in.)0.87 x 7.8 x 3.3
Unit Weight (lbs.)0.94
Input
- External Power Supply Input Specs (V / Hz / A)
- 100-240V / 50/60Hz / 1.8A
- External Power Supply Cord Length (ft.)
- 4.0
- External Power Supply Plug(s)
- NEMA 1-15P North America
- Bus Powered
- No
External Power Supply Output Specs (V / A)20V / 3.6A
External Power Supply DC Barrel Connector SpecsOD: 5.5 x 2.5 x 10mm, Positive Pin, Negative Sleeve
External Power Supply CertificationsCE; RoHS; UL; cUL
Output
- Charging Ports / Amps
- 0.9A; 1.5A; 5A
Charging Watts100
Communications
- Network Speed
- 1Gbps
IEEE Standards Supported802.3; 802.3u; 802.3az; 802.3x
Environmental
- Operating Temperature Range
- 32 to 113 F (0 to 45 C)
- BTUs
- 34.1 BTU/Hr
- Operating Humidity Range
- 10% to 85% RH, Non-Condensing
- Power Provided to Connected Device(s)
- 5V 0.9A Output (USB A), Up to 20V 5A (100W) Input (USB C)
Storage Temperature Range14 to 158 F (-10 to 70 C)
Power Consumption (Watts)10
Storage Humidity Range5% to 90% RH, Non-Condensing
Overview
- UPC Code
- 037332213518
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
