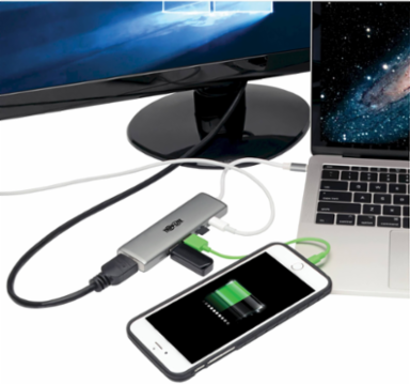

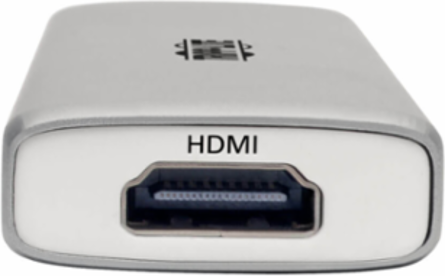

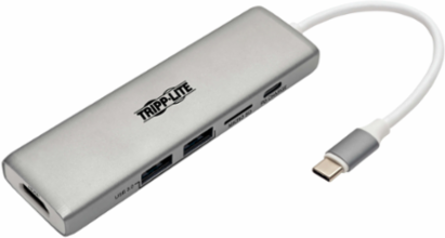

Tripp Lite U442-DOCK10-S USB-C Dock, 4K HDMI, 60W PD Charging, 5 Ports, Aluminium
- MPN: U442-DOCK10-S
- UPC: 037332213365
- PPN: TRP-U442-DOCK10-S
CAD
$55.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB-C Dock, 4K HDMI, 60W PD Charging, 5 Ports, Aluminium
Features
- Transmits HDMI audio/video signals from sources supporting USB DisplayPort Alt Mode
- Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
- 2 USB-A ports transfer data from thumb drives or printers at speeds up to 5 Gbps
- Powers and charges PD Charging-compliant devices, such as MacBooks and Chromebooks
- Easy installation with plug-and-play operation—no software required
- 3-year limited warranty
- USB-C Dock Turns Your Device’s USB-C or Thunderbolt 3 Port into a Multiport Workstation
- Supports USB DisplayPort Alternate Mode for Transmitting HDMI Audio/Video Signals
- Transmits Crystal-Clear 4K Video and Digital Audio
- Connects Keyboards, Thumb Drives and Other USB Peripherals
- Charges the Connected Laptop, Smartphone or Other Device
- Allows External Memory Access
- Built-In USB-C Cable Connects in Either Direction
- Ready to Use Right Out of the Package
- 3-Year Warranty and Environmentally Responsible Design
Documentation & Downloads
Specifications
Features & Specifications
- Max Supported Video Resolution
- HDMI: 3840 X 2160 (4K X 2K) @ 30HZ
- HDCP Specification
- 2.2
- Driver Required
- No
- Full Duplex Support
- Yes
- Remote Wakeup Support
- Yes
- SD Card Specification
- Micro SD
HDMI Specification2.0
USB SpecificationUSB 3.1 Gen 1 (up to 5 Gbps)
USB Power Delivery (PD) Charging SupportYes
Suspend Mode SupportYes
TechnologyHDMI; USB; USB 3.0 (SuperSpeed); USB 3.1 (Gen 1); PD Charging
Battery
- Battery Charging (1.2 Port)
- Yes
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 5
- Side B - Connector 1
- HDMI (FEMALE); MICRO SD (FEMALE); USB 3.0 A (FEMALE); USB C (FEMALE); (2) 3.5MM (FEMALE)
Side A - Connector 1USB C (MALE)
Connector PlatingNickel
Physical
- Cable Jacket Rating
- VW-1
- Material of Construction
- Aluminium
- Shipping Weight (lbs.)
- 0.20
- Unit Packaging Type
- Box
ColorSilver; White
Shipping Dimensions (hwd / in.)0.80 x 5.70 x 3.20
Unit Dimensions (hwd / in.)0.51 x 4.5 x 1.3
Unit Weight (lbs.)0.15
Input
- Bus Powered
- Yes
- Product Length (cm.)
- 30.48
- Product Length (m.)
- 0.3
Product Length (in.)12
Product Length (ft.)1
Output
- Charging Ports / Amps
- (2) 0.9A; 3A
Charging Watts60
Environmental
- Operating Temperature Range
- 32 to 131 F (0 to 55 C)
- Relative Humidity
- 5% to 95% RH, Non-Condensing
- Power Consumption (Watts)
- 1.8
Storage Temperature Range14 to 158 F (-10 to 70 C)
BTUs6.1 BTU/Hr
Power Provided to Connected Device(s)5V 0.9A (4.5W) Output (USB A), Up to 20V 3A (60W) Input (USB C)
Overview
- UPC Code
- 037332213365
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
