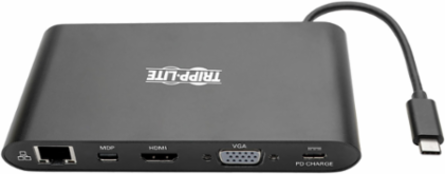

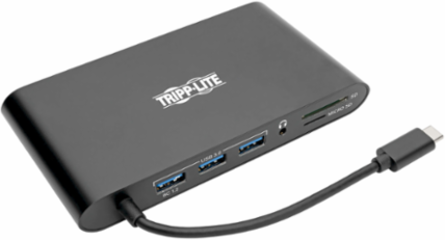

Tripp Lite U442-DOCK1-B USB-C Dual Display Dock, 4K HDMI, VGA, Mini DP, 11 Ports, PD Charging, Black
Tripp Lite U442-DOCK1-B USB-C Dual Display Dock, 4K HDMI, VGA, Mini DP, 11 Ports, PD Charging, Black
- MPN: U442-DOCK1-B
- UPC: 037332209153
- PPN: TRP-U442-DOCK1-B
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$146.95/ EA
Description
USB-C docking station adds HDMI, VGA, mDP, USB, PD Charging and other ports to your Chromebook, MacBook, smartphone or PC.
Features
- Transmits audio/video signals from sources supporting USB DisplayPort Alt Mode
- Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
- Connects you to a wired Ethernet network when no Wi-Fi is available
- Powers and charges PD Charging-compliant devices, such as MacBooks and Chromebooks
- Easy installation with plug-and-play operation—no software required
- 3-year limited warranty

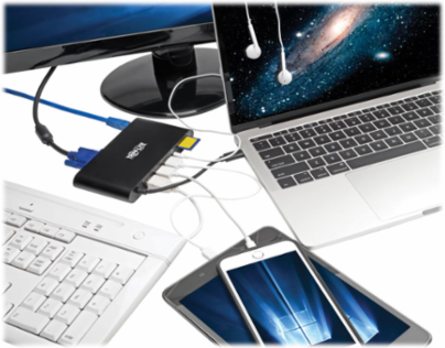

- USB-C Docking Station Turns Your Device’s USB-C or Thunderbolt 3 Port into a Multiport Workstation
- Supports USB DisplayPort Alternate Mode for Transmitting Audio/Video Signals
- Transmits Crystal-Clear 4K Video and Digital Audio
- Connects USB Peripherals
- Charges a Connected Device
- Accesses a Wired Gigabit Ethernet Network
- Connects Audio Equipment
- Allows External Memory Access

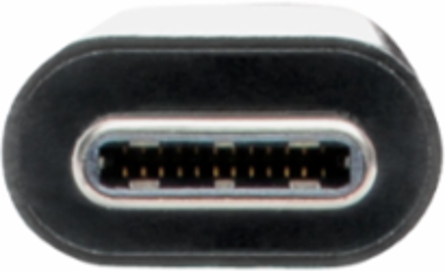

- Built-In USB-C Cable Connects in Either Direction
- Ready to Use Right Out of the Package
- 3-Year Warranty and Environmentally Responsible Design
Specifications
Features & Specifications
- Max Supported Video Resolution
- MDP/HDMI: 3840 X 2160 (4K X 2K) @ 30HZ; VGA: 1920 X 1200 (1080P) @ 60HZ
- HDMI Specification
- 1.4
- USB Specification
- USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
- Recommended Category Cable
- Cat5/Cat5e/Cat6 Cables
- Auto MDIX Support
- Yes
- Suspend Mode Support
- Yes
- Technology
- Cat5/5e; Cat6; DisplayPort; HDMI; Stereo Audio; USB; USB 3.0 (SuperSpeed); USB 3.1 (Gen 1); VGA/SVGA; PD Charging
- USB Power Delivery (PD) Charging Specification
- 2.0
Displayport Specification1.2
HDCP Specification1.4
Driver RequiredNo
USB Power Delivery (PD) Charging SupportYes
Full Duplex SupportYes
Remote Wakeup SupportYes
SD Card SpecificationSD; Micro SD
Battery
- Battery Charging (1.2 Port)
- Yes
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 11
- Side A - Connector 1
- USB C (MALE)
- Side B - Connector 2
- (3) USB 3.0 A (FEMALE)
- Side B - Connector 4
- RJ45 (FEMALE)
- Side B - Connector 6
- 3.5MM (FEMALE)
Dock Connectors3 x USB3.0, 3.5mm Stereo, RJ45 LAN, HDMI, MINI DISPLAYPORT, VGA, MICRO SD, SD, USB-C CHARGING
Side B - Connector 1HD15 (FEMALE); HDMI (FEMALE); MINI DISPLAYPORT (FEMALE)
Side B - Connector 3MICRO SD (FEMALE); SD (FEMALE)
Side B - Connector 5USB Type-C (FEMALE)
Connector PlatingNickel
Physical
- Cable Jacket Rating
- VW-1
- Material of Construction
- PVC and Aluminum
- Shipping Weight (lbs.)
- 0.50
- Unit Packaging Type
- Box
ColorBlack
Shipping Dimensions (hwd / in.)0.90 x 5.20 x 6.50
Unit Dimensions (hwd / in.)0.67 x 2.95 x 5.39
Unit Weight (lbs.)0.22
Input
- Bus Powered
- Yes
- Product Length (cm.)
- 21.08
- Product Length (m.)
- 0.21
Product Length (in.)8.3
Product Length (ft.)0.69
Output
- Charging Ports / Amps
- 1.5A
Charging Watts60
Communications
- Network Speed
- 1Gbps
IEEE Standards Supported802.3; 802.3u; 802.3az; 802.3x
Environmental
- Operating Temperature Range
- 32 to 113 F (0 to 45 C)
- BTUs
- 17.1 BTU/Hr
- Operating Humidity Range
- 10% to 85% RH, Non-Condensing
Storage Temperature Range14 to 158 F (-10 to 70 C)
Power Consumption (Watts)5
Storage Humidity Range5% to 90% RH, Non-Condensing
Overview
- UPC Code
- 037332209153
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
